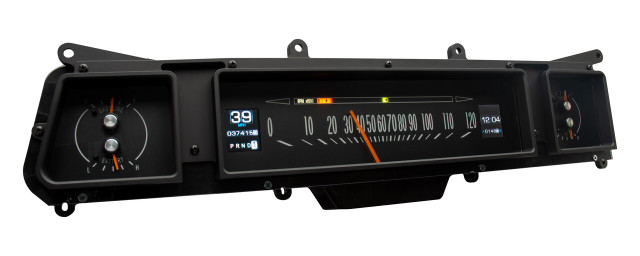

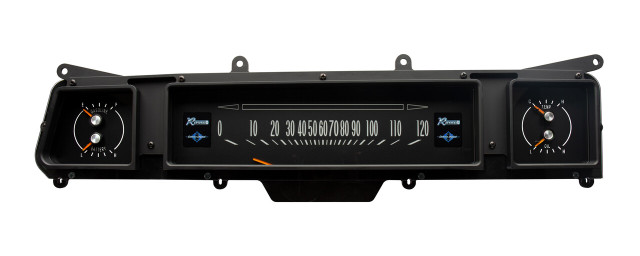

The RTX-66C-IMP-X brings Dakota Digital's direct-fit RTX instrument system to the 1966 Chevy Caprice/Impala, retaining the stock dash look while adding modern electronic capability. Whether your car is a base Biscayne, a loaded Caprice, or anything in between running a 250 c.i. six cylinder, a 427, or a late model powerplant swap, this system is designed to deliver accurate, flexible instrumentation for the application.
Dakota Digital engineered the RTX series to keep the factory layout, face styling, and indicator placement intact, so at a glance the gauges appear original equipment. Once powered on, the full LED backlighting reveals the true capability of the system, with user-selectable colors bringing a late-model touch to a classic dash.
Each RTX system features CNC-machined housings and in-house designed electronics, including a high-definition TFT message center that can be configured to display a wide range of vehicle information. A central control box simplifies installation and setup.
Key Features
- Direct-fit replacement for 1966 Chevy Caprice/Impala instrument panel
- CNC-machined housings with in-house designed electronics
- High-definition TFT message center, fully configurable
- Central control box for simplified installation and setup
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes, or fully customizable color zones
- Full RGB LED backlighting with independent daytime and nighttime themes
- Daytime and nighttime brightness control, toggled by the headlight switch
- Pushbutton rocker switch control for driving mode and setup menu navigation
- Configurable via free mobile app for Android and Apple devices
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Specifications
- Part Number: RTX-66C-IMP-X
- Speedometer: 0-120 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Tachometer: 0-8,000 RPM (digital bar graph)
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall
- High RPM recall
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/engaged, when vehicle is equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 (when vehicle is equipped)
- Wait to start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator with 10 ft harness, replaces GM style speedometer cables (requires approximately 5" clearance; part #130011 available separately for pulse generator relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes

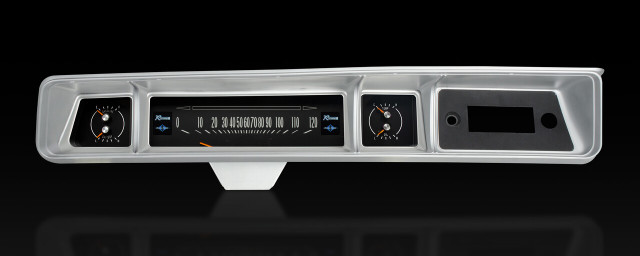

Bezel not included; the system uses an OEM or reproduction style bezel. Not all OEM indicator lamp functions will be replaced by the RTX system; unused indicators may be repurposed as needed for the application. The DIM-1 accessory is available separately for on-the-fly rotary brightness control.
