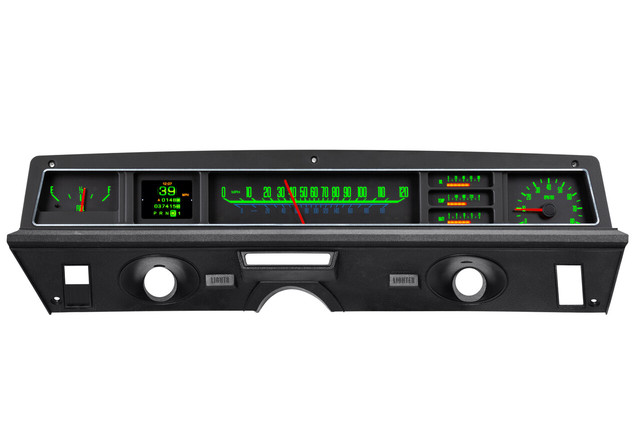

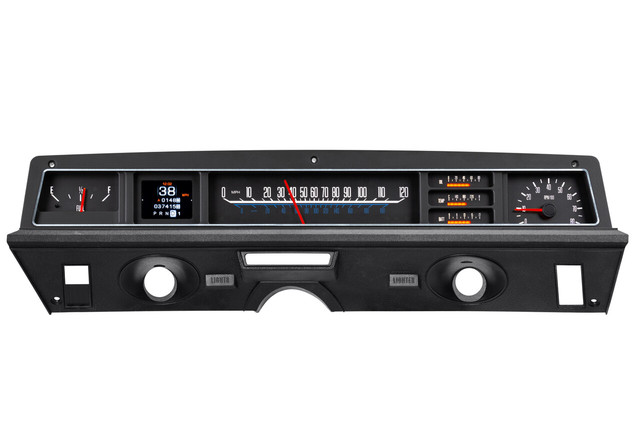

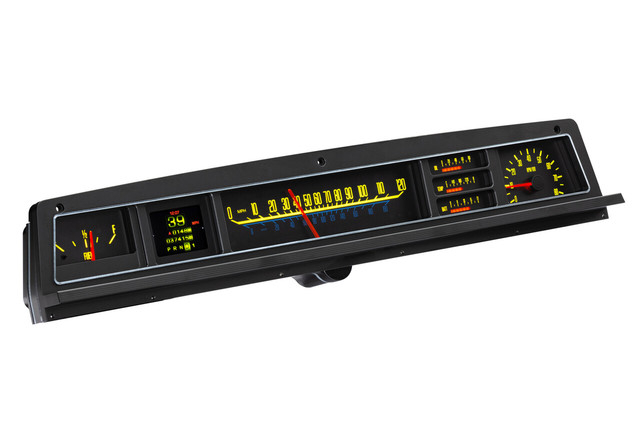

The Dakota Digital RTX-71C-CAP-X is a direct bolt-in instrument system upgrade for 1971-76 Chevrolet Impala and Caprice full-size cars. Built on the RTX platform, this system retains the stock gauge layout, face styling and indicator placement for an authentic factory appearance, while adding modern features like color-changeable LED backlighting and a high-definition TFT message center that can be configured to display the information most important to you.
Each RTX system starts with a CNC-machined housing filled with electronics designed and built in-house by Dakota Digital. A central control box simplifies installation and setup, while a pushbutton rocker switch and companion mobile app (Android and Apple compatible) allow for easy configuration, calibration and real-time diagnostic readouts.
Senders for oil pressure, water temperature and speed are included. An optional BIM-01-2 module is available for integration with stock or aftermarket EFI systems.
Key Features
- OEM-style gauge layout, face design and indicators for a factory appearance
- Full LED/RGB backlighting with over 30 user-selectable colors for needle, sweep and TFT display
- 12 factory preset color themes, or fully customizable color zones
- Independent daytime and nighttime brightness control, toggled by the headlight switch
- High-definition TFT message center with configurable displays
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time/trap speed, and high speed/RPM recall
- Pushbutton rocker switch control with buzzer feedback
- Configurable via free mobile app for setup and real-time gauge readouts
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Specifications
- Part Number: RTX-71C-CAP-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- 12-hour Clock and Estimated Range/Miles to Empty display
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Fits 1971-76 Chevrolet Impala/Caprice full-size cars
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM style speedometer cables (requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread applications
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Vehicles with factory A/C will require modifications to the stock gauge bezel ductwork
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is needed; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
