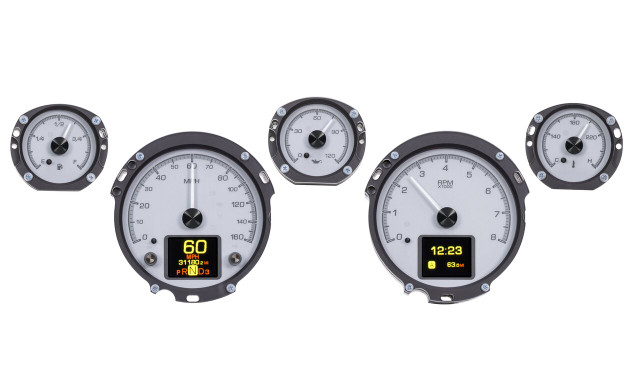

The Dakota Digital HDX-67F-MUS-S is a five-gauge analog instrument system engineered to bolt directly into a stock or reproduction 1967-68 Ford Mustang bezel. Featuring silver alloy gauge-face styling, this system combines classic analog readouts with twin TFT message centers for a wealth of additional vehicle information.

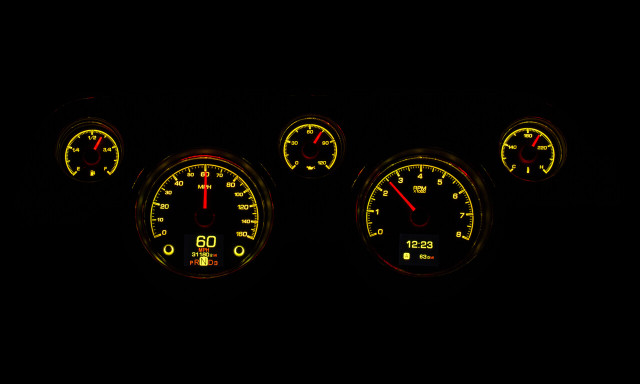

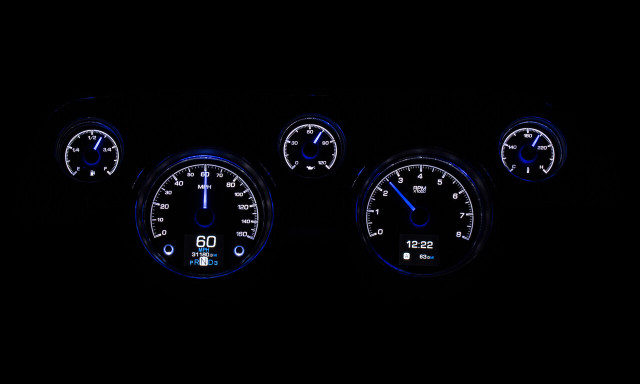

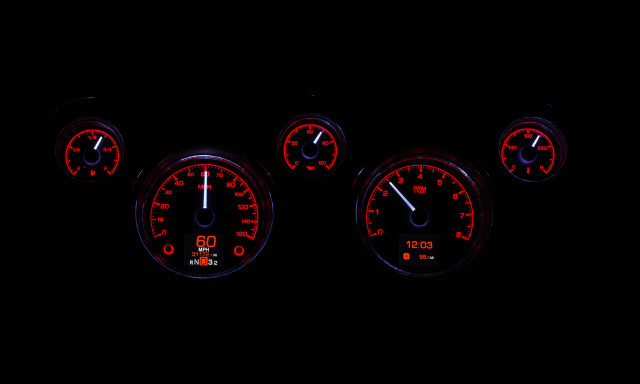

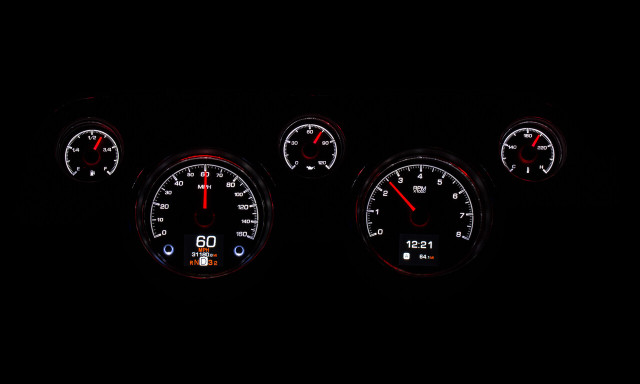

Each HDX system allows the user to select independent illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the buttons.
Installation is simplified through a central control box that uses vehicle-harness sourced signals along with supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Five-gauge analog system with twin TFT message centers
- Silver alloy gauge-face styling
- Independently selectable illumination colors for gauges, needles, and message centers
- Black nickel plated spun-aluminum needle hubs
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each gauge
- Onboard capacitive-touch pushbutton controls with LED lighting through the gauge face
- Button-press feedback via TFT message center or included buzzer
- Optional remote-mounted switches for added accessibility
- Full system configuration available through Bluetooth app for Apple and Android devices
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-67F-MUS-S
- Vehicle Application: 1967-68 Ford Mustang
- Gauge Face Color: Silver
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Water Temperature Sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure Sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables, with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
Included Sensors
- Water temperature sensor with 10 ft harness
- Oil pressure sensor with 10 ft harness
- Cable driven speed sensor/generator with 10 ft harness
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Part number 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required
- Speedometer calibration can be bypassed when using part number GPS-50-2
