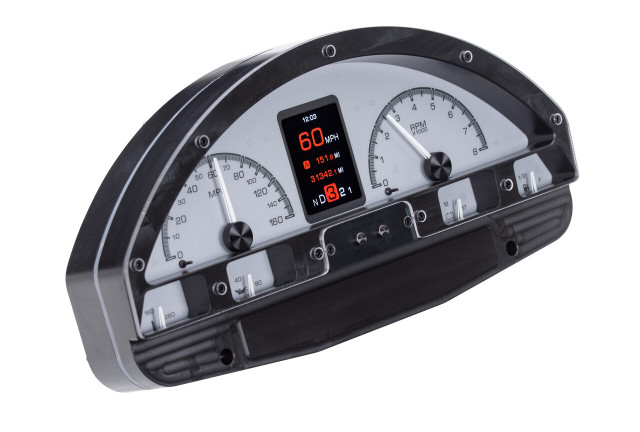

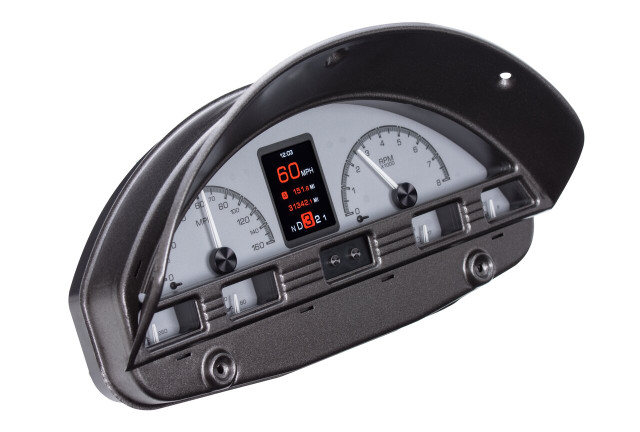

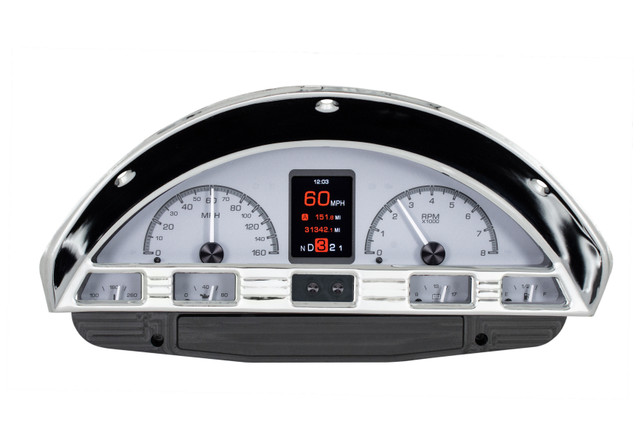

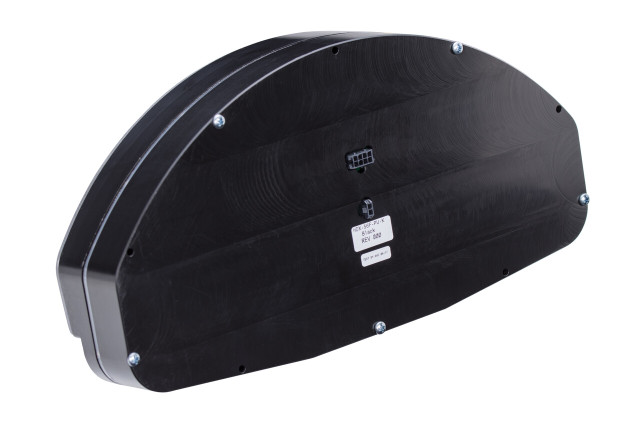

The Dakota Digital HDX-56F-PU-S brings advanced electronic instrumentation to the unmistakable 1956 Ford Pickup, a one-year-only design famous for its built-in visor and wrap-around windshield. This HDX System bolts directly to a stock or reproduction bezel (not included) and features six analog instruments paired with a single TFT message center, delivering a complete gauge package that integrates with virtually any drivetrain combination through its supplied sensors and available accessory modules.
This system is finished with a silver alloy gauge face and offers independently selectable illumination colors for needles, gauge sweeps, and the message center display. Calibration and personalization are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel-plated spun aluminum to match the control buttons.
All HDX instrument systems feature dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two user-definable functions, plus a red, settable warning light built into each gauge sweep. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied solid-state sending units cleanly to their respective terminals.
Key Features
- Silver alloy gauge-face styling with black nickel-plated spun-aluminum needle hubs
- Six analog gauges plus a TFT digital message center in one system
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes, or fully custom color zone selection

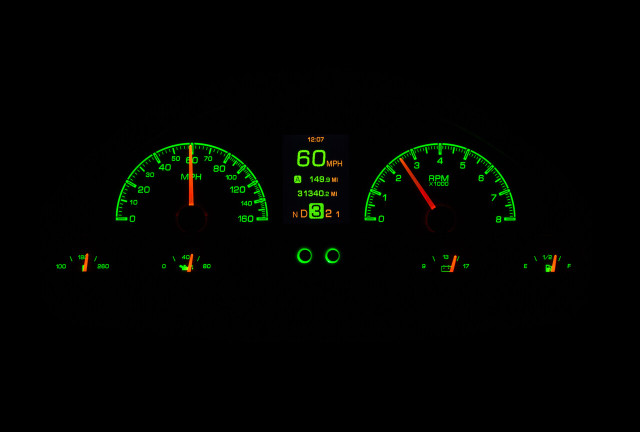

- Full LED/RGB backlighting with independent day and night themes
- Capacitive-touch onboard pushbutton controls with buzzer feedback
- Bluetooth app control and real-time gauge readouts for Apple and Android devices
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two auxiliary inputs
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-56F-PU-S
- Gauge Face Color: Silver
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH with 160 MPH top end
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour
- Estimated Range/Miles to Empty display
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid-state sensor with 10 ft harness
- Cable-Driven Speed Sensor/Generator with 10 ft harness, replacing Ford and/or GM style speedometer cables (requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread applications
Notes
- Bezel not included; system is designed to bolt to a stock or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for the application
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control (sold separately)
- GPS-50-2 can be used to eliminate the need for speedometer calibration (sold separately)
