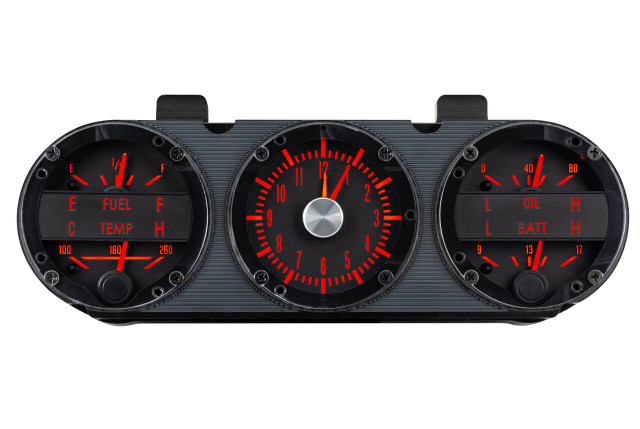

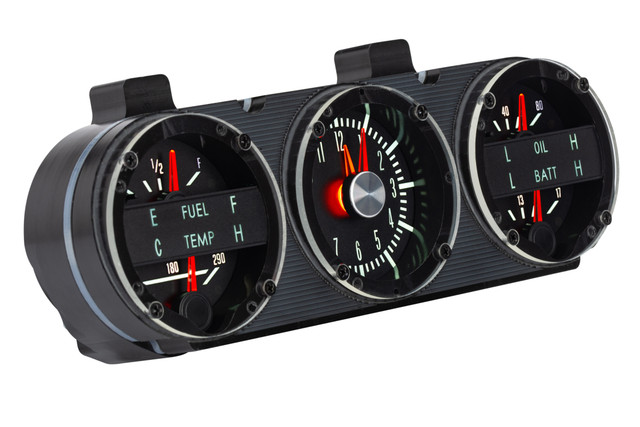

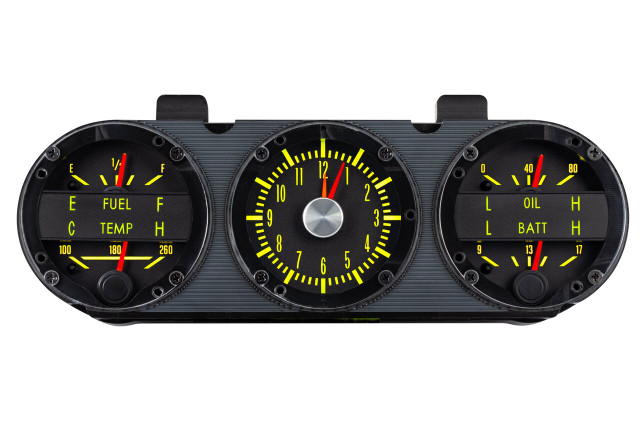

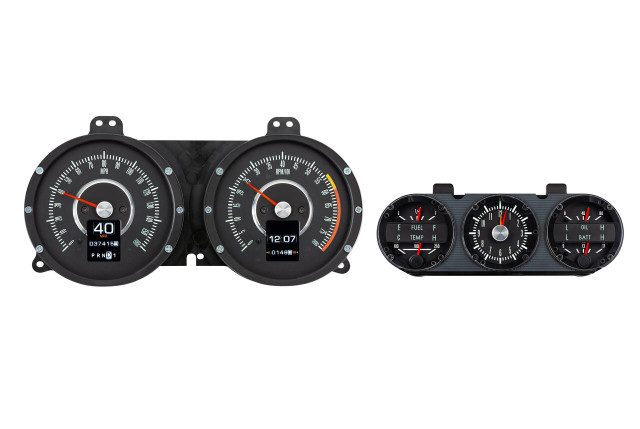

The Dakota Digital RTX-67C-CAC-X brings modern electronics to the one-year-only gauge layout found in 1967 Chevy Camaros equipped with the console gauge option. Designed to install directly in place of the original instruments using the stock bezels and gauge housings from the vehicle, this RTX system retains the factory analog look while adding twin TFT message centers and a replicated analog clock. This is a complete package and cannot be split up, and dash and console bezels are not supplied.
The RTX series focuses on retaining the stock appearance without sacrificing the late-model features enthusiasts want. OEM design elements are carried through the layout, face styling and indicators, so at a casual glance the gauges appear original—until the LED backlighting comes alive in the color scheme of your choice. CNC machined housings are filled with in-house designed electronics, and the high-definition TFT message centers can be configured to display a wide range of information.
As with other Dakota Digital systems, the RTX series utilizes a central control box to simplify installation and setup. This system uses OEM or reproduction style bezels.
Key Features
- Installs directly in place of the original 1967 Camaro console gauge instruments using stock bezels and gauge housings
- Twin high-definition TFT message centers with replicated analog clock function
- Over 30 user-selectable color options to independently set needle, sweep and digital display colors
- 12 factory preset color themes, or fully custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime theme settings
- Daytime and nighttime brightness control through the RTX setup menu, toggled by the headlight switch
- Two-sided pushbutton rocker switch included for setup and operation, with buzzer feedback
- Configurable via free mobile app (Android and Apple) for setup, diagnostics and secondary display
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, gear position (optional sensor required), 4x4 and wait-to-start, plus two programmable auxiliary indicators
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/high RPM recall
Specifications
- Part Number: RTX-67C-CAC-X
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12 Hour Analog Clock Movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (optional Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Dash and console bezels are not included; system uses OEM or reproduction style bezels
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
