Description

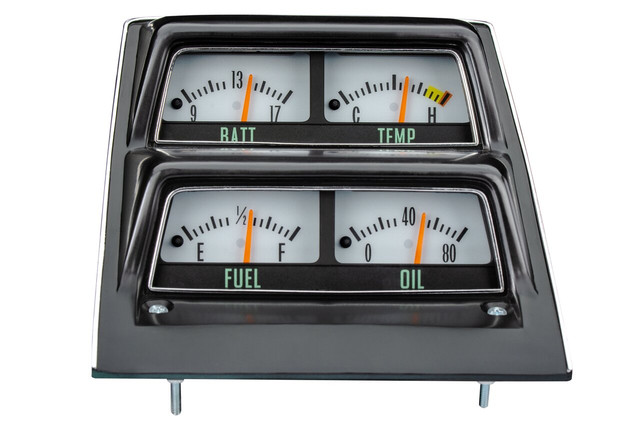

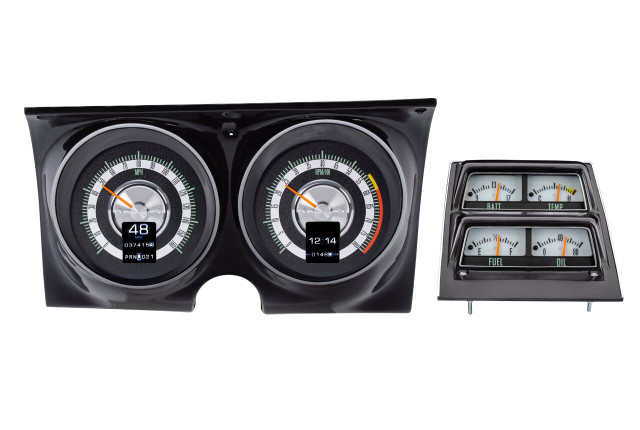

The Dakota Digital RTX-68C-CAC-X is a direct-fit RTX instrument system designed for the 1968 Chevy Camaro equipped with the factory-optional center console gauge layout. Built from scratch with 1968 styling, this system faithfully recreates the vintage look while adding large TFT message centers to the speedometer and tachometer for modern functionality and accuracy.
As part of the RTX series, this system incorporates OEM design elements in layout, face styling, and indicators so it blends in seamlessly at a glance. Once the LED backlighting is activated, the system reveals its full range of modern capability through fully customizable color options and high-definition digital displays.

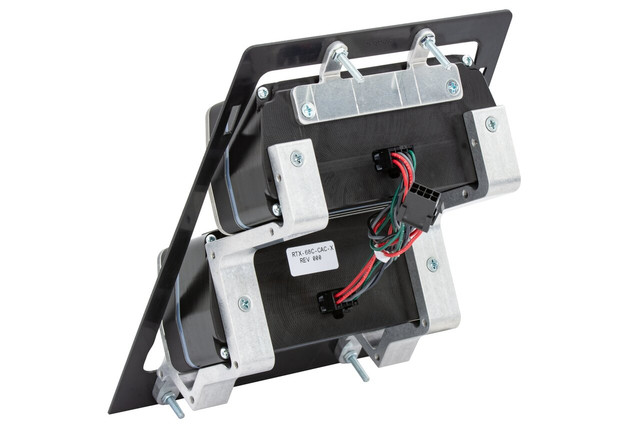

CNC machined housings house electronics designed and built in-house by Dakota Digital, and a central control box simplifies installation and setup. The kit uses OEM or reproduction style bezels, which are not included.
Key Features
- 1968 Camaro center console gauge styling with analog gauges and TFT message centers built into the speedometer and tachometer
- CNC machined gauge housings with in-house designed electronics
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Daytime and nighttime brightness control through the RTX setup menu, toggled by the headlight switch
- Central control box for simplified installation and setup
- Pushbutton rocker switch control for programming and operation, with button-press feedback via TFT display or included buzzer
- Free mobile app (Android and Apple compatible) for system configuration and real-time gauge readouts
- Dual (A/B) trip meter, 12-hour clock, settable odometer, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (sensor required), 4x4, wait to start, and two programmable auxiliary inputs
- Red LED sweep indicator on each analog gauge (except speedometer) for quick warning notice
Specifications
- Part Number: RTX-68C-CAC-X
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; part number 130011 available separately for relocation when additional clearance is needed; Tremec and Ford style adaptors available on request)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Dash and console bezel are not supplied; system uses OEM or reproduction style bezels
- Kit cannot be split up
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
