The Dakota Digital HDX-68D-CHG-S is a direct-fit HDX instrument system designed for the 1968-70 Dodge Charger with rallye dash (also fitting '68-70 Super Bee, Coronet R/T, and 1970 GTX). This Silver Face version features a billet aluminum housing that accommodates the original switches and front bezel for a true bolt-in upgrade, using an OEM or reproduction style bezel.
Each HDX system allows independent selection of illumination colors for gauge readings, needles, and message centers. Calibration and personal settings are controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the buttons.
The system features dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators, along with a red, settable warning light for each gauge. A central control box simplifies installation using vehicle-harness sourced signals and supplied solid state sending units.
Key Features

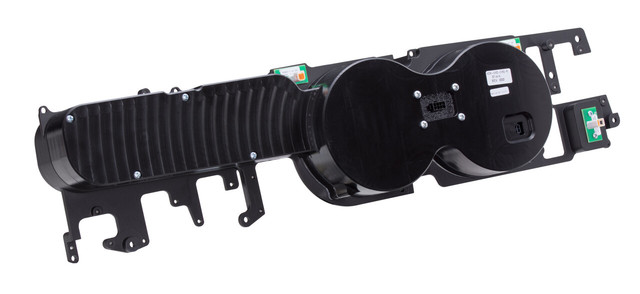

- Billet aluminum housing accommodates original switches and bezel (bezel not included)
- Silver alloy gauge-face styling
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes, or full custom color zone selection

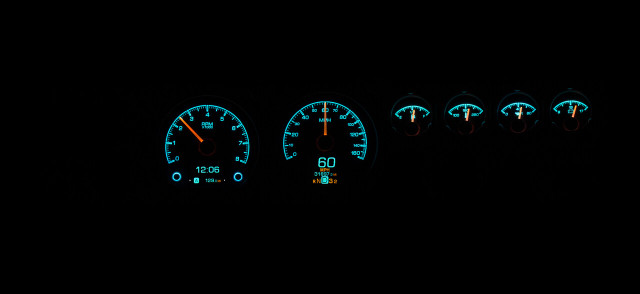

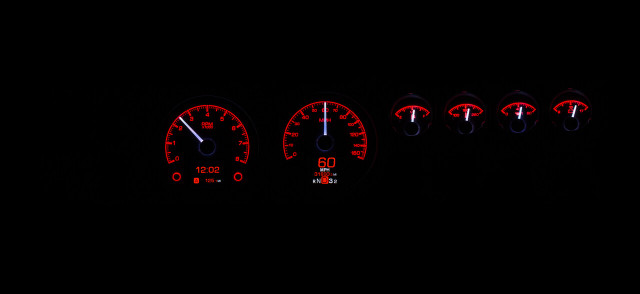

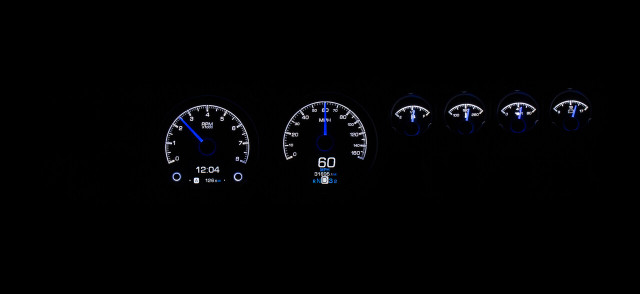

- Full LED/RGB backlighting with unique daytime and nighttime themes
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red settable warning light on each gauge for quick notice of a warning condition
- Onboard capacitive touch pushbuttons with LED-lit feedback through the gauge face
- Bluetooth app compatibility for Apple and Android devices for setup and real-time gauge readouts
- Daytime and nighttime brightness control, toggled by headlight switch activation
Specifications
- Part Number: HDX-68D-CHG-S
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness (sensor requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to work with an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as desired
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory available separately for on-the-fly rotary brightness control
