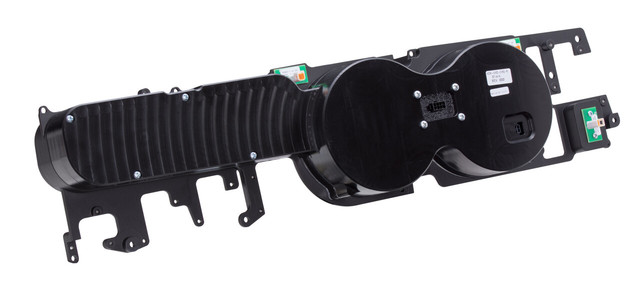

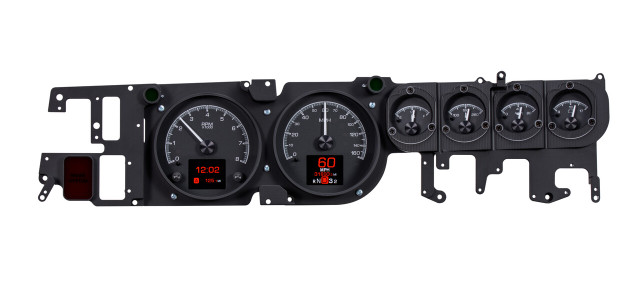

The Dakota Digital HDX-68D-CHG-K is a direct-fit HDX instrument system designed for the 1968-70 Dodge Charger with rallye dash, as well as fitting the '68-70 Super Bee, Coronet R/T and the 1970 Plymouth GTX and Road Runner. This system features black face gauge styling and is built on a billet aluminum housing that accommodates the vehicle's original switches and front bezel for a true bolt-in upgrade.
The HDX system allows independent selection of illumination colors for gauge readings, needles, and message centers, with calibration and settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied solid-state sending units cleanly to their respective terminals.
All HDX instrument systems feature dead-faced indicators, including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators, along with a red, settable warning light for each gauge.
Key Features
- Black face gauge styling with billet aluminum housing
- Direct, bolt-in fit using the original switches and bezel (bezel not included)

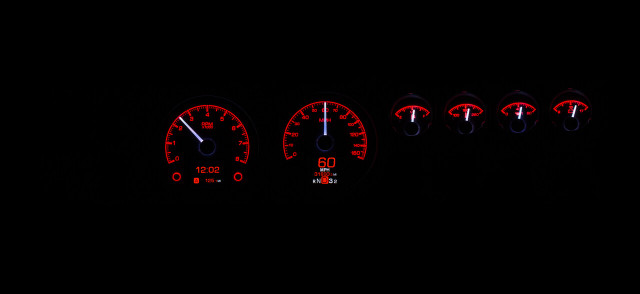

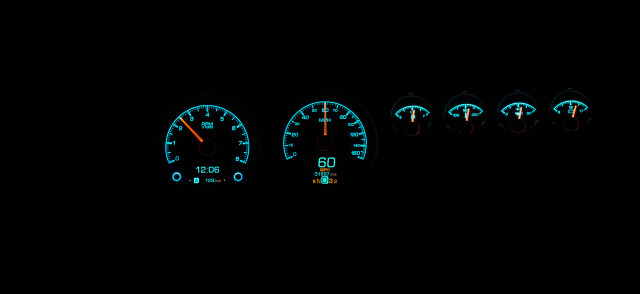

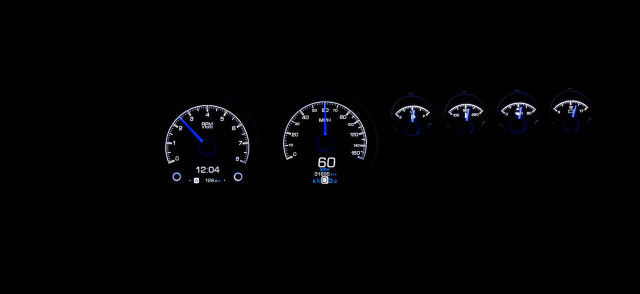

- Over 30 user-selectable colors for needles, sweep, and digital TFT display
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with separate day and night themes
- Capacitive-touch pushbutton controls with Bluetooth app support for Apple and Android devices
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two user-definable functions
- Red, settable warning indicator built into each gauge sweep
- Central control box simplifies wiring with vehicle-harness sourced signals
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Digital message center with odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
Specifications
- Part Number: HDX-68D-CHG-K
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness (replaces GM style speedometer cables; requires approximately 5" clearance between the cable drive output and any obstruction)
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Notes
- Front bezel is not included; system uses the OEM or reproduction style bezel
- Gear Position indicator requires the optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
