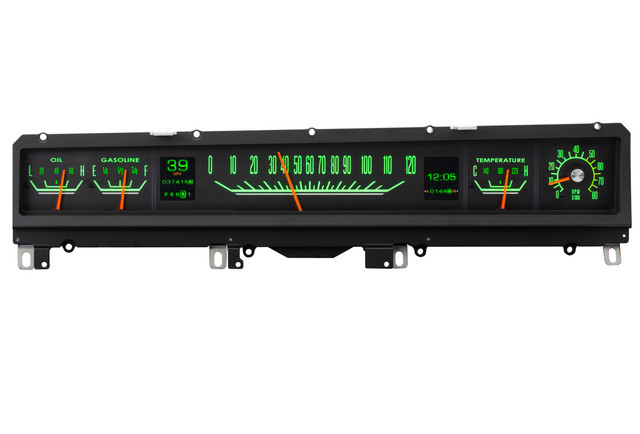

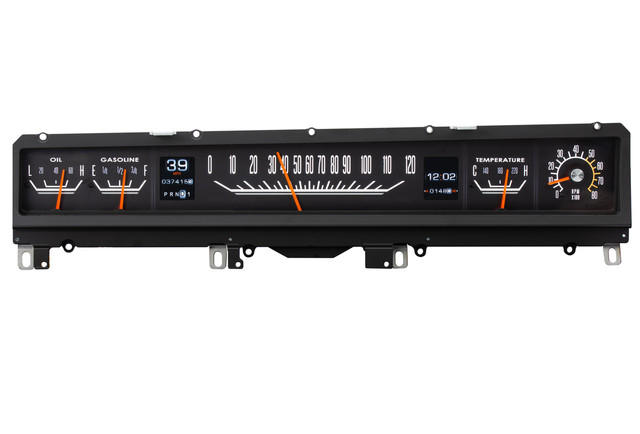

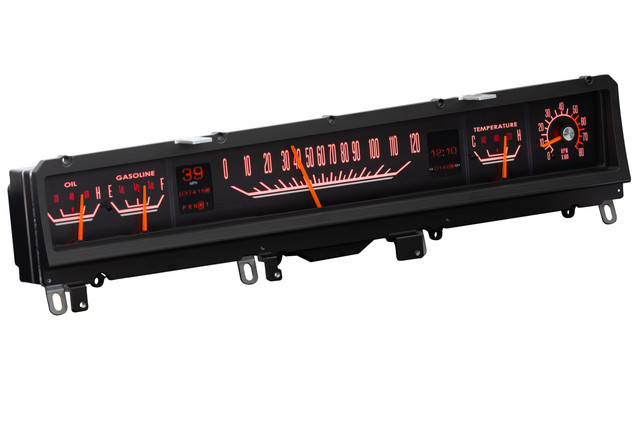

The Dakota Digital RTX-68D-STD-X is a stock-inspired, direct-fit instrument cluster designed for 1968-70 Dodge Charger and other Mopar B-Body models that did not originally come with the Rallye dash. This system installs into your stock instrument surround and dash pad for a clean, factory-style appearance. Inside, a pair of TFT message centers deliver configurable information alongside five analog-sweep instruments and all the essential indicators.
The RTX series brings OEM-inspired design elements, layout and face styling together with modern LED backlighting and late-model features. CNC machined housings house in-house designed electronics, and a central control box simplifies installation and setup. High-definition TFT message centers can be configured to display a wide range of vehicle information.
Key Features
- Direct-fit replacement using the stock instrument surround and dash pad
- Five analog-sweep instruments: Speedometer, Tachometer, Oil Pressure, Water Temperature, and Fuel Level
- Dual TFT message centers displaying odometer, dual trip meters, clock, estimated range, and performance meters (0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall)
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, gear position (optional GSS-3000 sensor required), 4x4, wait to start, and two user-programmable auxiliary indicators
- Each analog gauge sweep includes a red LED warning indicator (except speedometer)
- Over 30 user-selectable colors for independent control of needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully customizable color zones
- Full LED/RGB backlighting with separate day and night themes, controlled through the HDX setup menu via the headlight switch
- Pushbutton rocker switch control for calibration and menu navigation, with button-press feedback via the TFT message center or included buzzer
- Configurable through a free mobile app for Android and Apple devices, offering real-time gauge readouts and menu navigation
- Uses OEM or reproduction style bezel (bezel not included)
Specifications
- Part Number: RTX-68D-STD-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator replacing GM style speedometer cables, with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster assembly
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Bushing kit
Notes
- Bezel is not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for your application
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- DIM-1 accessory available for on-the-fly rotary brightness control (sold separately)
