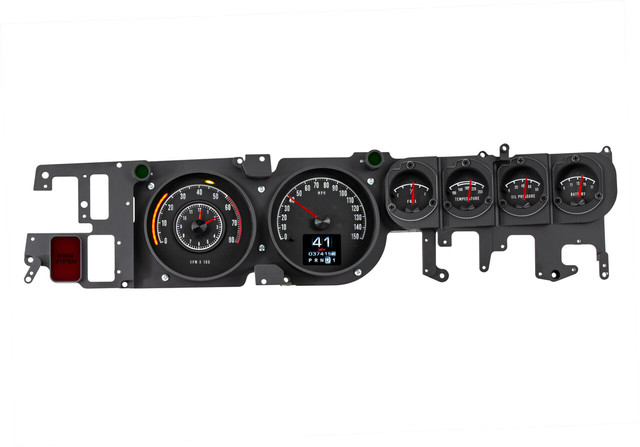

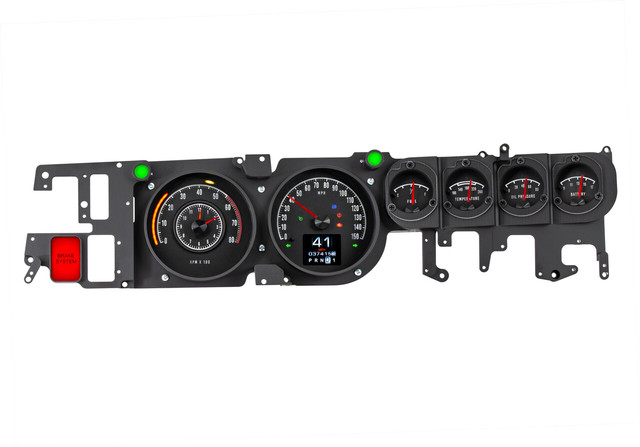

The Dakota Digital RTX-68D-CHG-X is a direct-fit instrument system designed for 1968-70 Dodge Charger B-Body models with the Rallye dash, bringing modern electronics together with an authentic original appearance. The billet aluminum housing accommodates the original switches and front bezel (not supplied) for a true bolt-in upgrade, and the analog clock is cleverly housed inside the tachometer face. Gauge needles appear white when off, allowing for full customization of lighting color once powered on.
As part of Dakota Digital's RTX series, this system focuses on retaining a stock appearance without sacrificing modern features. OEM design elements are reflected in the layout, face styling and indicators, so at a casual glance the gauges appear original -- until the LED backlighting is switched on in a custom color scheme.
CNC-machined housings are filled with electronics designed and built in-house by Dakota Digital, and a high-definition TFT message center can be configured to display a wide range of information. A central control box simplifies installation and setup. The system is designed to use an OEM or reproduction style bezel, which is not included.
Key Features
- Direct-fit billet aluminum housing designed for the original Rallye dash switches and bezel (bezel not included)
- Analog clock integrated into the tachometer face
- Gauge needles appear white when off; over 30 user-selectable colors for needle, sweep and digital TFT display
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting with independent daytime and nighttime themes
- High-definition TFT message center with configurable displays and performance meters
- Pushbutton rocker switch control included for setup and operation
- Compatible with Dakota Digital's free mobile app for Android and Apple devices for configuration and real-time readouts
- Central control box for simplified installation and setup
Specifications
- Part Number: RTX-68D-CHG-X
- Speedometer: 0-150 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Tachometer: 0-8,000 RPM digital bar graph gauge
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 sold separately for relocation when additional clearance is required; Tremec and Ford style adaptors available on request)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Kit Includes
- RTX instrument cluster with billet aluminum housing
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Original or reproduction front bezel and switches are required for installation and are not included
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
