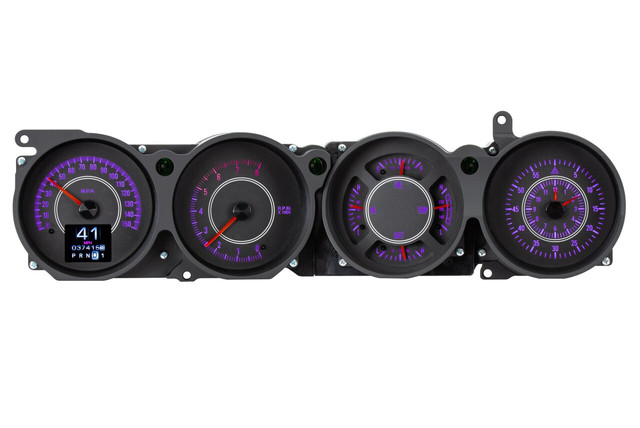

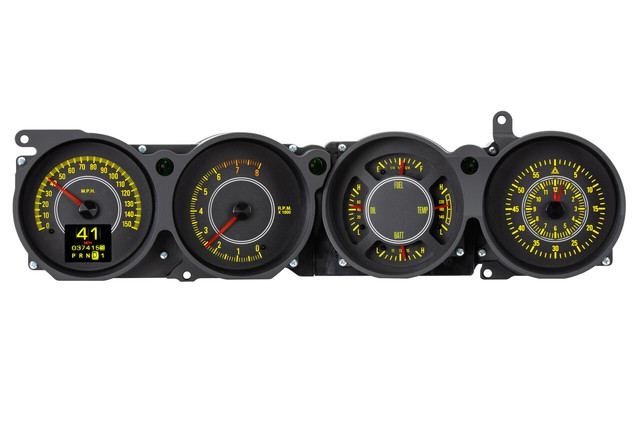

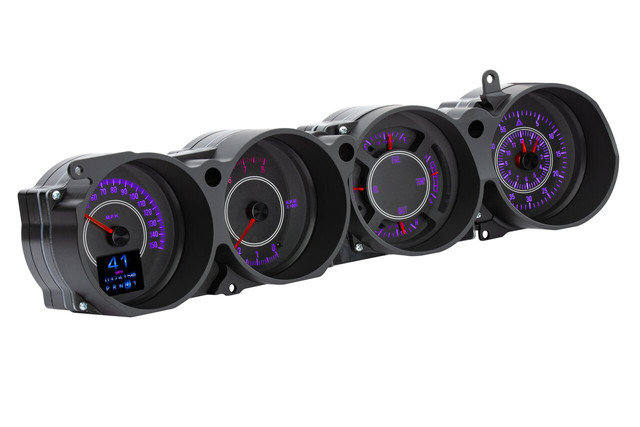

The Dakota Digital RTX-70D-CLG-X is a direct-fit instrument system engineered specifically for 1970-74 Dodge Challenger and Plymouth Cuda models equipped with the Rallye dash. This system bolts directly into the stock dash opening and accepts the original front bezel, preserving the factory appearance while delivering modern electronic performance and capability.
Turn signal and brake indicators are illuminated by built-in LEDs, making this system an excellent match for a GEN III Hemi conversion or any late-model drivetrain upgrade. The RTX series focuses on retaining the stock appearance while adding late-model features, with careful attention paid to OEM design elements including layout, face styling, and indicator placement.
Each gauge housing is CNC machined and filled with electronics designed and built in-house by Dakota Digital. A high-definition TFT message center can be configured to display a wide range of vehicle information, and a central control box simplifies installation and setup.
Key Features
- Direct-fit replacement for the factory Rallye dash cluster, accepting the original front bezel
- Built-in LED-illuminated turn signal and brake indicators
- CNC machined gauge housings with in-house designed electronics
- High-definition TFT message center with configurable displays
- Full LED backlighting with over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes or fully custom color zone selection
- Independently adjustable daytime and nighttime brightness, controlled via the RTX setup menu and toggled by the headlight switch
- Pushbutton rocker switch control for programming and operation, with button-press feedback via TFT display or included buzzer
- Compatible with the free Dakota Digital mobile app (Android and Apple) for configuration and real-time gauge readouts
- Central control box simplifies wiring and setup
Specifications
- Part Number: RTX-70D-CLG-X
- Vehicle Application: 1970-74 Dodge Challenger and 1970-74 Plymouth Cuda with Rallye dash
- Speedometer: 0-150 MPH
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Tachometer: 0-8,000 RPM (digital bar graph)
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time
- 1/4 and 1/8 mile end speed (trap speed)
- High speed recall
- High RPM recall
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/engaged, when vehicle is equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 indicator (when vehicle is equipped)
- Wait to start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable-driven speed sensor/generator with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; Part # 130011, sold separately, allows relocation when additional clearance is needed)
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread applications
Kit Includes
- RTX instrument cluster with CNC machined housing
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable-driven speed sensor with harness
- Mounting bushings
Notes
- Front bezel is not included; system uses the OEM or reproduction style bezel
- Full system configuration is also available through the free Dakota Digital mobile app for Android and Apple devices
