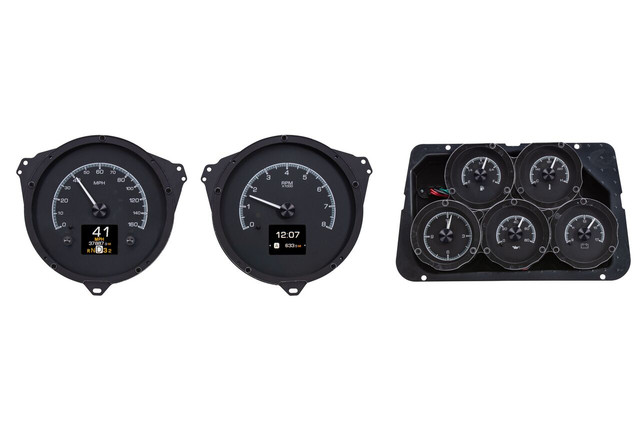

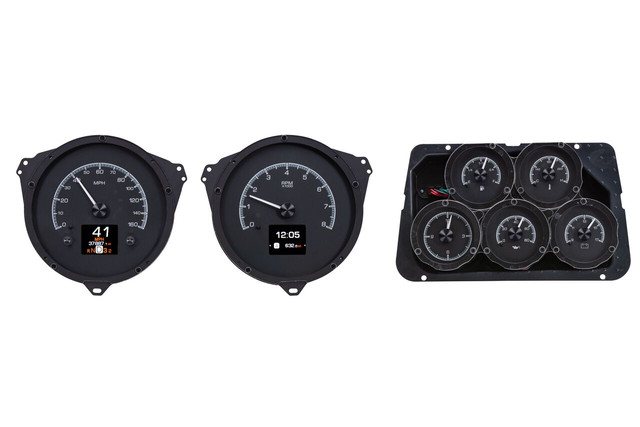

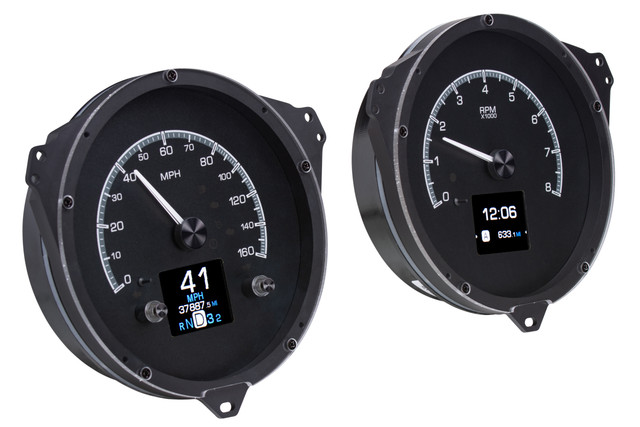

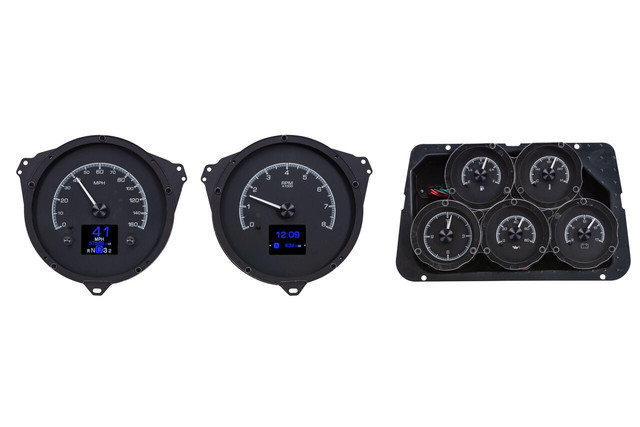

The Dakota Digital HDX-68C-VET-K is a direct-fit HDX instrument system engineered specifically for 1968-77 "Mako Shark" Chevy Corvettes, eliminating the need to cut or modify your hard-to-find dash components as required with universal gauge kits. This system features black alloy gauge-face styling, with the speedometer and tachometer positioned front and center, complete with full-color TFT message displays, while the satellite gauges and an analog clock reside in the center console panel.
Supplied sensors allow seamless integration with nearly any engine, whether stock, modified, or a late-model swap. Independent illumination colors can be selected for the gauge readings, needles, and message centers, with calibration and personalization handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
The system uses an OEM or reproduction style bezel; a bezel is not included.
Key Features
- Direct-fit design for 1968-77 Chevy Corvette, no dash cutting required
- Black alloy gauge-face styling
- Full-color TFT message displays integrated into speedometer and tachometer

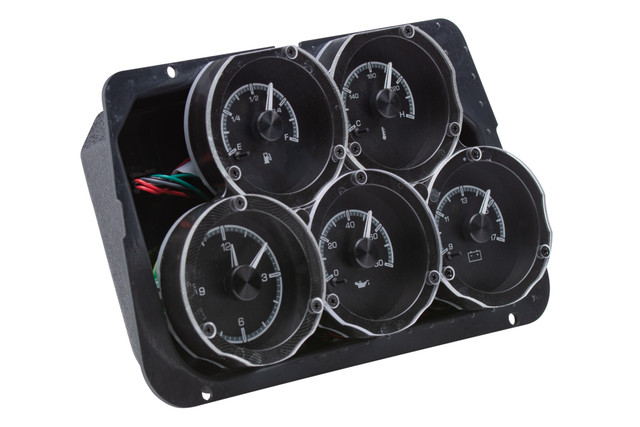

- Satellite gauges and analog clock housed in center console panel
- Over 30 user-selectable color options for needles, sweep, and digital TFT displays
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting with independent day and night themes
- Built-in capacitive-touch pushbutton controls plus Bluetooth app control for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Central control box simplifies installation with vehicle-harness sourced signals and supplied solid state sending units
Specifications
- Part Number: HDX-68C-VET-K
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; sensor requires approximately 5" clearance between the cable drive output and any obstruction (part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
Bezel is not included; system is designed to use an OEM or reproduction style bezel. Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed. Gear Position indicator requires optional GSS-3000 sensor. DIM-1 accessory available for on-the-fly rotary brightness control.
