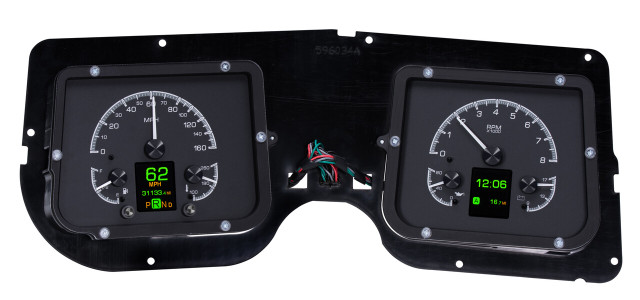

The Dakota Digital HDX-68C-CVL-K is a direct-fit instrument system designed for 1968 Chevelle, Malibu, and El Camino models, replacing the factory dual-square gauge layout with a full analog and digital readout package. This version features a black alloy gauge-face styling to complement a wide range of interior themes.
The system combines six analog gauge readings with a pair of TFT digital message centers, all controlled through a central control box that simplifies installation by using vehicle-harness sourced signals along with supplied, solid-state sending units. Independent illumination colors can be selected for the gauge readings, needles, and message centers, allowing drivers to personalize the look of their dash.
Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons, and the system is designed to use an OEM or reproduction style bezel.
Key Features
- Six analog gauges: speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- Dual TFT digital message centers with odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/high RPM recall
- Dead-fronted indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each analog gauge sweep

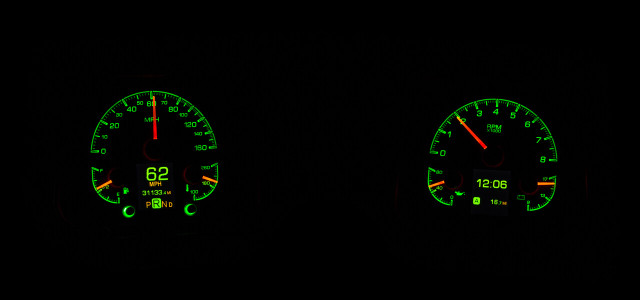

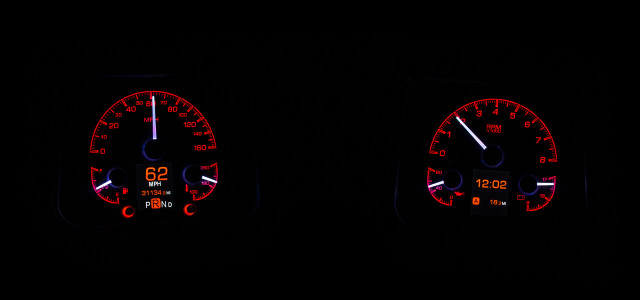

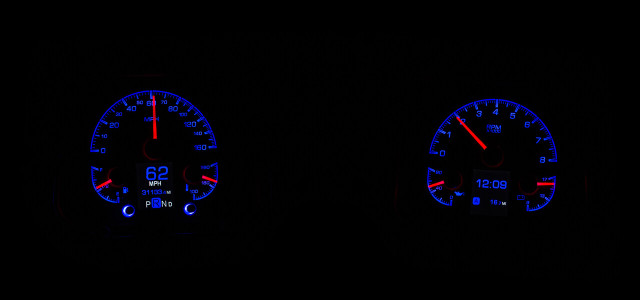

- Over 30 user-selectable color options for needles, sweep, and digital display, with 12 factory preset color themes
- Full LED/RGB backlighting with independent daytime and nighttime brightness settings
- Onboard capacitive-touch pushbutton controls plus Bluetooth app configuration for Android and Apple devices
- Black nickel plated spun-aluminum needle hubs
Specifications
- Part Number: HDX-68C-CVL-K
- Gauge Face Color: Black Alloy
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM style speedometer cables (requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
