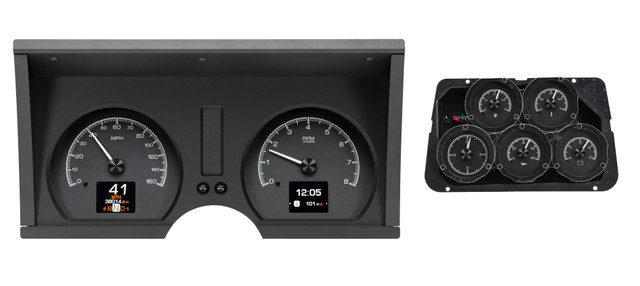

The Dakota Digital HDX-78C-VET-K is a bolt-in HDX instrument system designed for 1978-82 Chevy Corvettes, featuring black alloy gauge-face styling. This system brings modern TFT message center technology into the classic Corvette cockpit while installing into the stock instrument bezels and housings.

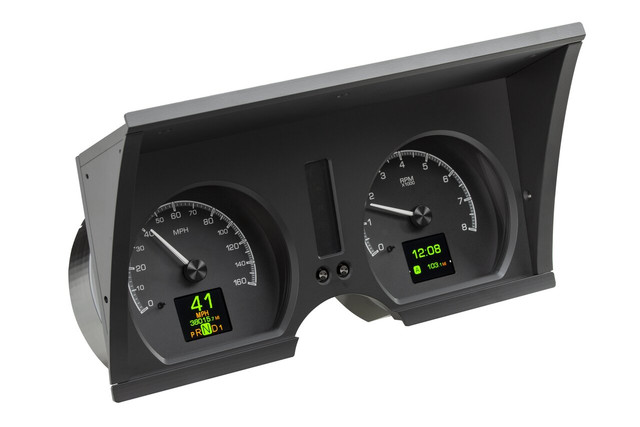

A pair of full-color TFT message centers allows the driver to display the data they need, when they need it. Calibration and personal settings are manipulated through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.

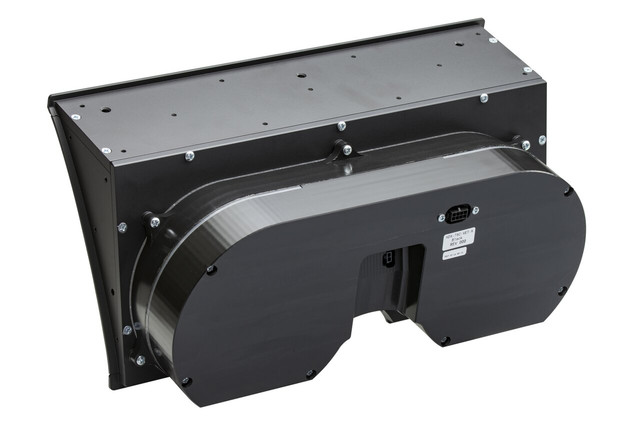

All HDX instrument systems feature dead-faced indicators and a red, settable warning light for each gauge. The included central control box simplifies installation using vehicle-harness sourced signals and supplied solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Black alloy gauge-face styling
- Independent illumination color selection for gauge readings, needles, and message centers
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully custom color zone selection

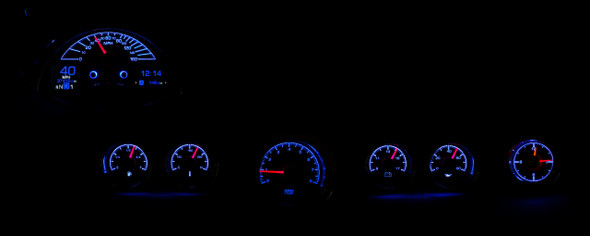

- Full LED/RGB backlighting with distinct daytime and nighttime themes
- Built-in capacitive-touch pushbutton controls with onboard buzzer feedback
- Bluetooth app control and real-time gauge readouts for Apple and Android devices

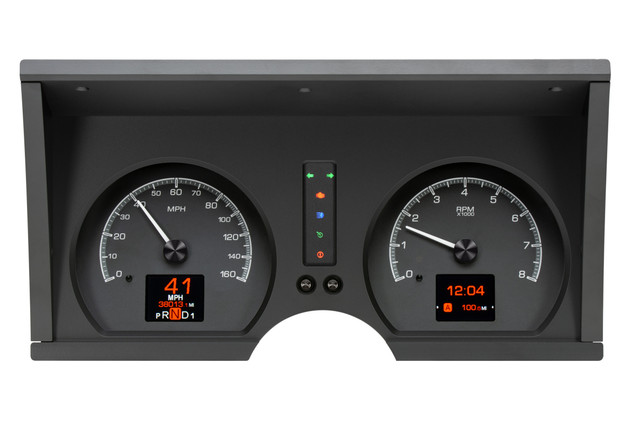

- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)

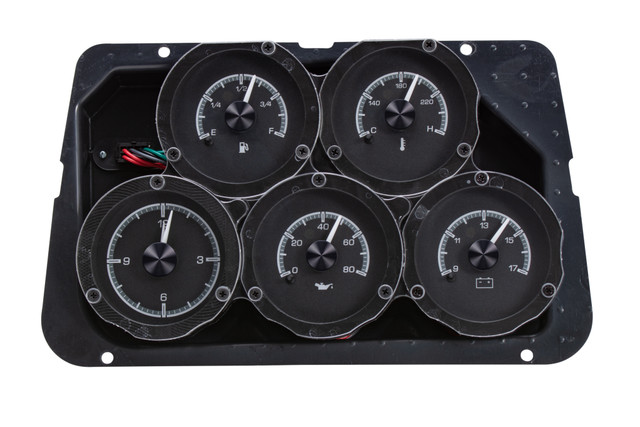

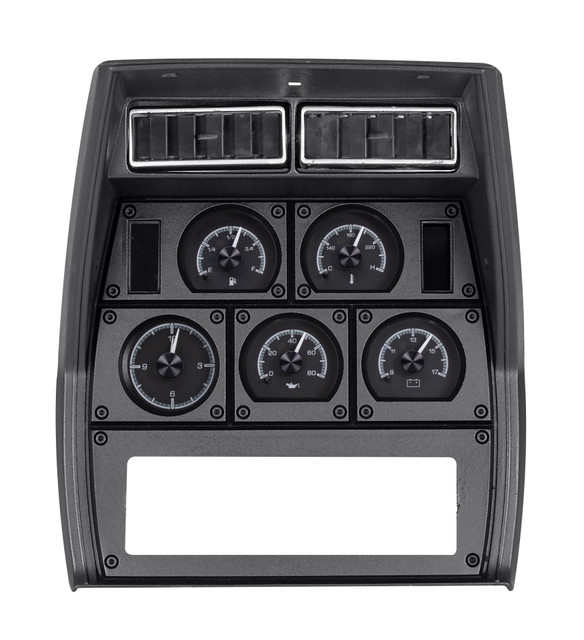

- Installs into stock instrument bezels and housings
Specifications
- Part Number: HDX-78C-VET-K
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12 Hr Analog Clock Movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator replacing GM style speedometer cables, with 10 ft harness
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Notes
Bezel not included; system is designed to use the OEM or reproduction style bezel. Gear position indicator requires optional GSS-3000 sensor (sold separately). Cable driven speed sensor requires approximately 5" of clearance between the cable drive output and any obstruction; part number 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed.
