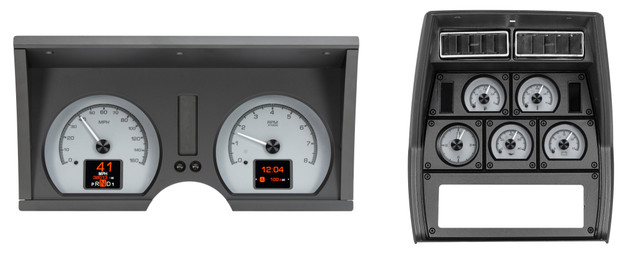

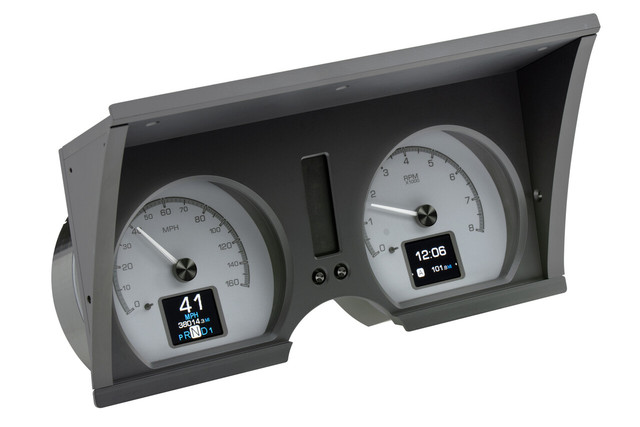

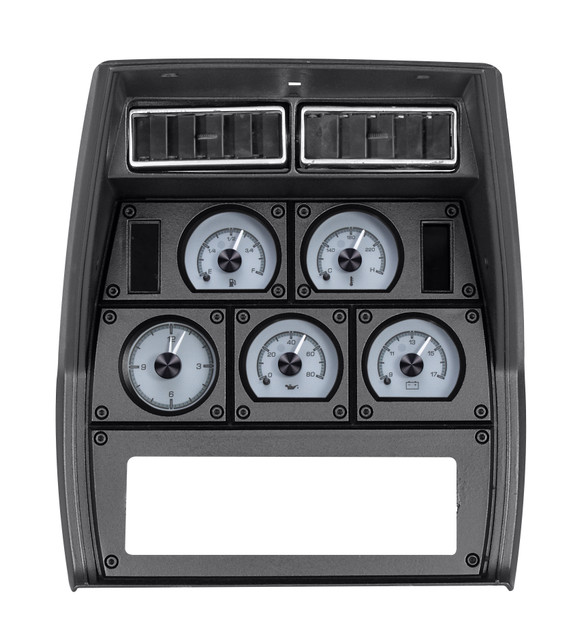

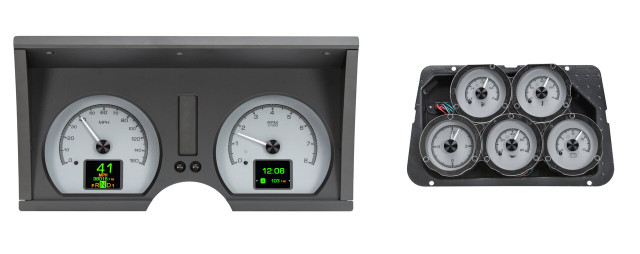

The Dakota Digital HDX-78C-VET-S is a direct bolt-in instrument system designed for 1978-82 Chevy Corvettes, bringing fully customizable digital technology to the classic cockpit-style interior. This system features silver alloy gauge-face styling and installs into the stock instrument bezels and housings for a factory-correct appearance.
Each HDX system pairs analog gauges with a pair of full-color TFT message centers, allowing independent illumination color selection for gauge readings, needles, and message center displays. Calibration and personal settings are controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons.
Installation is simplified through a central control box that sources signals from the vehicle harness and connects to supplied solid-state sending units at their respective terminals.
Key Features
- Silver alloy gauge-face styling
- Dual full-color TFT message centers with user-customizable displays
- Over 30 user-selectable color options for needles, sweep, and digital displays
- 12 factory preset color themes, plus fully custom color zone options
- Full LED/RGB backlighting with independent day and night themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red settable warning light for each analog gauge
- Capacitive-touch pushbutton controls with onboard LED feedback and buzzer
- Bluetooth app compatibility for setup, calibration, and real-time gauge readouts
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-78C-VET-S
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable-driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; Part # 130011 sold separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Instrument bezel not included; system is designed to install into the OEM or reproduction style bezel
- Gear position indicator requires optional GSS-3000 sensor
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
- DIM-1 accessory available separately for on-the-fly rotary dimmer control
