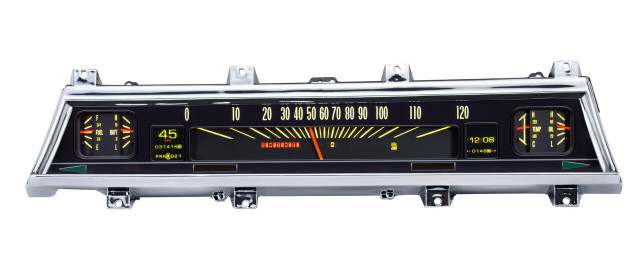

The Dakota Digital RTX-66C-CVL-X Instrument System brings late-model technology to your 1966-67 Chevy Chevelle, Malibu or El Camino while retaining the stock OEM appearance. The long, sweeping speedometer is flanked by a pair of dual gauges, with two 1.8" TFT message centers, LED backlighting and hidden indicators providing a modern viewing experience. Just below the speedometer, invisible until the key is on, an LED bar-graph tachometer appears, and the horizontal lines on the face are retained for ultimate stock appearance.
As part of the RTX series, this system focuses on retaining that factory look without sacrificing the features found in today's instrumentation. CNC machined housings are filled with in-house designed electronics, and the high-definition TFT message centers can be configured to display a wide variety of information. A central control box simplifies installation and setup.
This system uses an OEM or reproduction style bezel; the bezel itself is not included with the instrument system.
Key Features
- Analog speedometer, oil pressure, water temperature, fuel level and voltmeter gauges with OEM-style layout
- LED bar-graph tachometer, hidden until the ignition is switched on
- Two 1.8" high-definition TFT message centers for configurable digital readouts
- Full LED/RGB backlighting with over 30 user-selectable colors for needle, sweep and digital display
- 12 factory preset color themes or fully custom color zone selection
- Independently adjustable daytime and nighttime brightness through the RTX setup menu
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, 4x4 and wait-to-start (as equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Standard displays include odometer, dual trip meters, 12-hour clock and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall and high RPM recall
- Pushbutton rocker switch control for driving mode and setup menu navigation
- Configurable through a free mobile app for Android and Apple devices via Bluetooth
Specifications
- Part Number: RTX-66C-CVL-X
- Speedometer Range: 0-120 MPH
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Tachometer Range: 0-8,000 RPM
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor, 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor, 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator, replaces GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction)
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel, such as part number 610088
- Gear position indicator requires optional GSS-3000 sensor
- On-the-fly rotary brightness control available with optional DIM-1 accessory
- Part number 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
