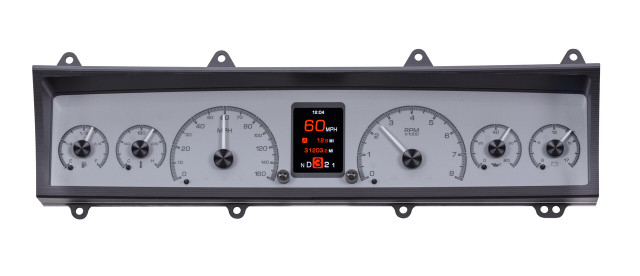

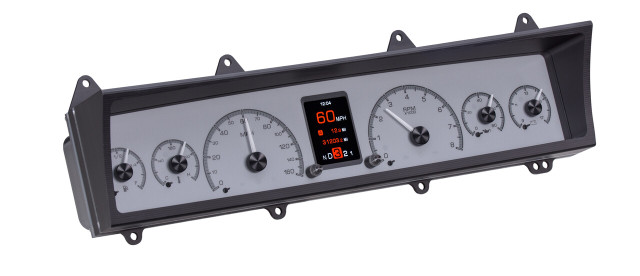

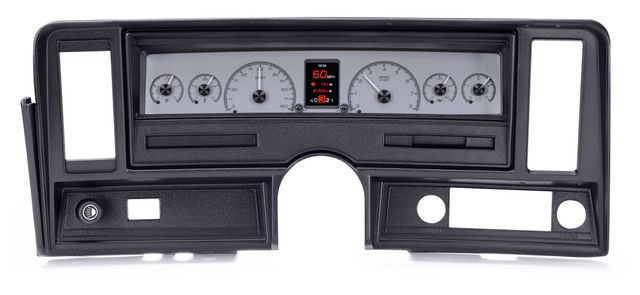

The Dakota Digital HDX-69C-NOV-S is a complete HDX Series instrument system engineered for the 1969-76 Chevy Nova, featuring a Silver Alloy background for a clean, upscale appearance. This system combines precision analog gauges with a high-resolution digital message center, giving drivers a full suite of performance, diagnostic, and warning information in a single, direct-fit package.
Each analog gauge is fully LED backlit with RGB technology, allowing independent control of needle color, sweep color, and digital display color. With over 30 user-selectable color options and 12 factory preset themes, the HDX system can be tailored to match any interior, with separate day and night lighting modes for optimal visibility.
Control is handled through LED-lit capacitive touch pushbuttons on the gauge face, remote mounted switches, or the free HDX Bluetooth app for Android and Apple devices, providing convenient calibration, setup, and real-time gauge readouts.
Key Features
- Silver Alloy gauge face background
- Full analog gauge cluster with integrated digital TFT message center
- Odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait to start, and two programmable auxiliary inputs
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes plus fully custom color zone selection
- Full RGB LED backlighting with independent day/night brightness control
- Capacitive touch pushbutton controls with Bluetooth app configuration and live readouts
Specifications
- Part Number: HDX-69C-NOV-S
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Gear Position indicator requires the optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional sensor clearance is required
- On-the-fly rotary brightness control can be added with the optional DIM-1 accessory
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as desired
- Speedometer calibration is not required when used with GPS-50-2
