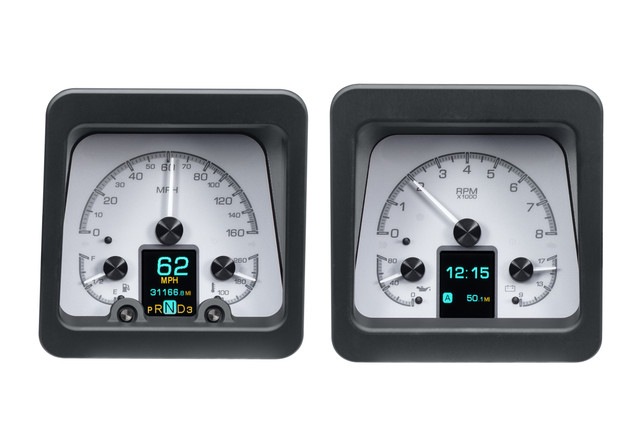

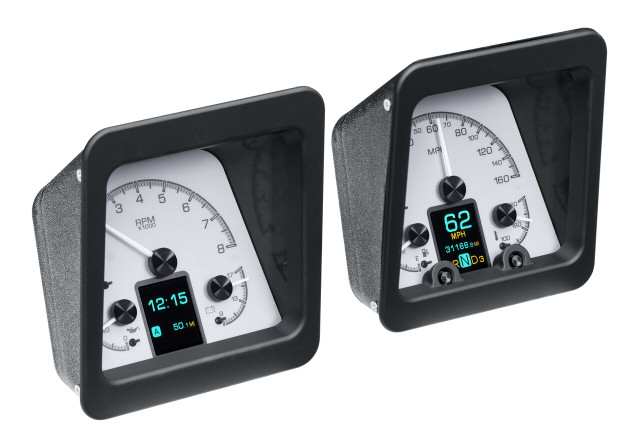

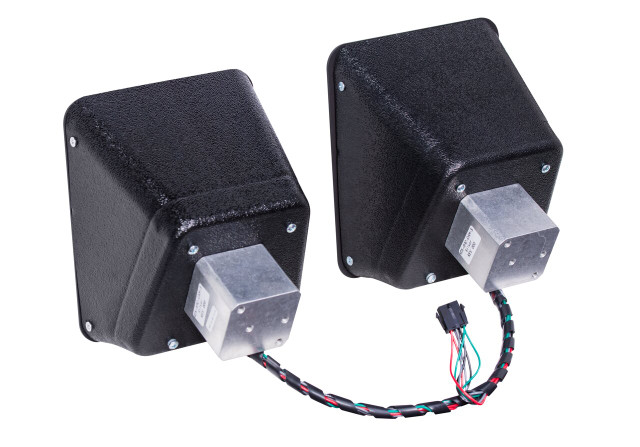

Give your 1969 Chevy Camaro's interior an upgrade with the Dakota Digital HDX-69C-CAM-S instrument system, featuring a sharp silver alloy gauge face. This full six-gauge system includes billet trim rings and TFT-display message centers, and is designed to bolt into a stock or reproduction plastic gauge housing/bezel (sold separately). Installation is simplified through a central control box that uses vehicle-harness sourced signals along with the included solid-state sending units, connecting cleanly to their respective terminals.
The HDX system allows independent selection of illumination colors for the gauge readings, needles, and message centers, with calibration and personal settings controlled via built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons. All HDX systems feature dead-faced indicators and a red, settable warning light for each gauge.
Key Features
- Silver alloy gauge-face styling
- Full six-gauge analog system: speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- TFT-display digital message centers with odometer, dual trip meters, clock, and estimated range/miles to empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable color options for independent needle, sweep, and digital display colors
- 12 factory preset color themes or fully custom color zone selection
- Full LED/RGB backlighting with adjustable daytime and nighttime brightness, toggled by the headlight switch
- Onboard capacitive-touch pushbutton controls with LED-lit gauge face buttons
- Bluetooth app control and real-time gauge readouts for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs matching the control buttons
- Billet trim rings included
Specifications
- Part Number: HDX-69C-CAM-S
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH with 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Gauge Face Color: Silver Alloy
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Gauge trim rings are included with this system
- System requires an OEM or reproduction style Instrument Carrier Assembly (available separately as ICM-69C-CAM)
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory available separately for on-the-fly rotary dimmer control
- GPS-50-2 may be used to eliminate the need for speedometer calibration
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
