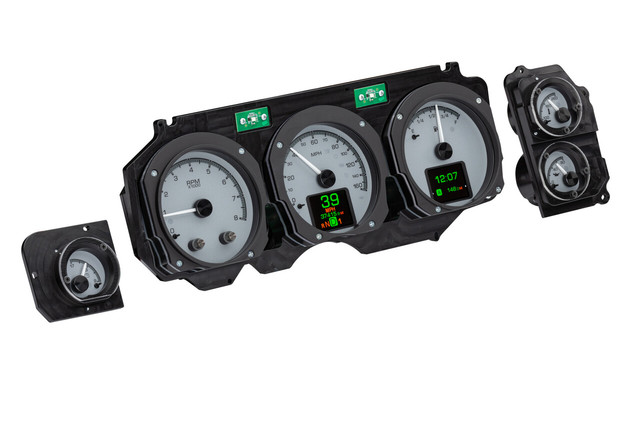

The Dakota Digital HDX-70C-CVL-S is a direct bolt-in instrument system designed for 1970-72 Chevy Chevelle SS, Monte Carlo, El Camino, and 1971 GMC Sprint SP models with an SS-style dash. This system features Silver Alloy gauge-face styling and combines six analog gauge sweeps with a pair of TFT message center displays, delivering modern functionality within a classic appearance.
Original locations for turn signal, high beam, and brake indicators are updated with LEDs for improved visibility. Each system uses a central control box with vehicle-harness sourced signals and supplied solid state sending units, simplifying installation by connecting cleanly to their respective terminals.
Users can independently select illumination colors for the gauge readings, needles, and message centers, with calibration and settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
Key Features
- Six analog gauge sweeps paired with dual TFT message center displays
- Silver Alloy gauge-face styling
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each gauge
- Over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or full custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Onboard capacitive touch pushbuttons with LED-lit feedback, plus Bluetooth app control for Android and Apple devices
- Button-press feedback through TFT Message Center or included buzzer
- Screws directly into original or aftermarket gauge carrier (available separately)
Specifications
- Part Number: HDX-70C-CVL-S
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH with 160 MPH top end
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer (one-time user settable, million mile), dual (A/B) trip meter (0-9,999.9), 12-hour clock, estimated range/miles to empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables, includes 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Gauge carrier (part number 610094) available separately
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for the application
- Gear Position indicator requires optional GSS-3000 sensor, sold separately
- Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory available separately for on-the-fly rotary brightness control
