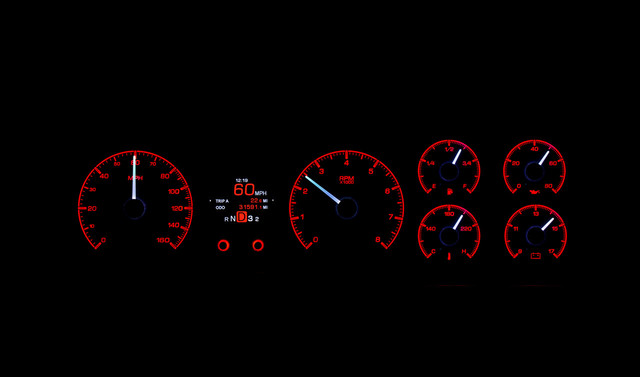

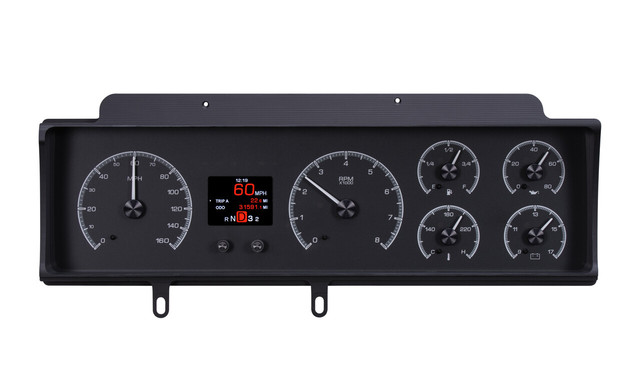

The Dakota Digital HDX-70C-MAL-K is a complete HDX instrument system designed as a drop-in replacement for the sweep-style cluster found in 1970-72 Chevy Malibu, non-SS Chevelle, and El Camino models. This Black Face edition delivers six analog gauges, a large TFT message center for auxiliary readings, and a new front lens and rear housing, eliminating the original indicator strip for a modern, upgraded instrument panel.
Illumination colors for gauge readings, needles, and message centers are independently selectable, with calibration and personalization handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is finished in black nickel-plated spun aluminum to match the control buttons, and every gauge features dead-faced indicators along with a red, settable warning light.
Installation is simplified through a central control box that sources signals from the vehicle harness and connects to supplied, solid-state sending units at their respective terminals. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Six analog gauges: speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter
- Large TFT digital message center for auxiliary readings and performance data
- Black face gauge styling with black nickel-plated spun-aluminum needle hubs
- Over 30 user-selectable color options for needles, sweep, and digital display
- 12 factory preset color themes plus full customization of color zones
- Full LED/RGB backlighting with independent day and night themes
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Onboard LED-lit capacitive touch pushbutton controls plus Bluetooth app configuration for Apple and Android devices
- Central control box simplifies installation with vehicle harness-sourced signals
Specifications
- Part Number: HDX-70C-MAL-K
- Speedometer Range: 0-160 MPH (split scale with 120 MPH resolution)
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Gauge Face Color: Black
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable-driven speed sensor/generator with 10 ft harness, replacing GM-style speedometer cables (requires approximately 5" clearance between cable drive output and any obstruction; part 130011 available separately for pulse generator relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear position indicator requires optional GSS-3000 sensor
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
