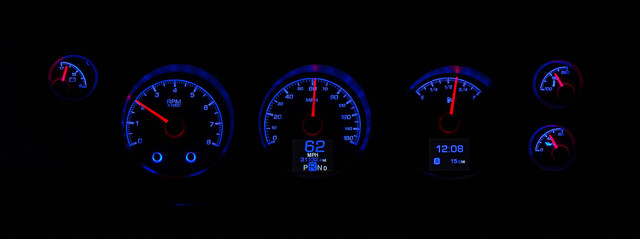

The Dakota Digital HDX-70C-CVL-K is a bolt-in HDX instrument system designed for 1970-72 Chevy Chevelle SS, Monte Carlo, El Camino, and 1971 GMC Sprint SP models with the SS-style dash. This system features Black Alloy face styling and combines six analog gauge sweeps with a pair of TFT message center displays for a clean, modern upgrade that retains the factory look.

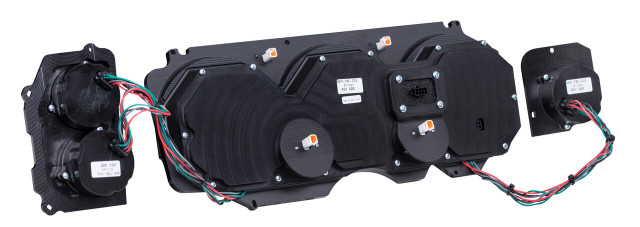

Original locations for turn signal, high beam, and brake indicators are updated with LEDs, and the system screws directly into the original or aftermarket gauge carrier, which is available separately. Users can independently select illumination colors for the gauge readings, needles, and message centers, with calibration and personal settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices.
Each needle hub is black nickel plated spun-aluminum to match the buttons, and the system features dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators, along with a red, settable warning light for each gauge. A central control box simplifies installation with vehicle-harness sourced signals and supplied solid state sending units.
Key Features
- Six analog gauge sweeps paired with dual TFT message center displays
- Black Alloy gauge-face styling
- Independently selectable illumination colors for needles, gauge sweeps, and message centers
- Over 30 user-selectable color options with 12 factory preset color themes
- Full LED/RGB backlighting for sharp daytime and nighttime visibility
- Capacitive-touch pushbutton controls plus Bluetooth app calibration for Apple and Android devices
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two user-definable functions
- Red, settable warning light built into each analog gauge sweep
- Central control box with vehicle-harness sourced signals for simplified installation
- Includes solid state water temperature and oil pressure sensors plus a cable-driven speed sensor/generator
Specifications
- Part Number: HDX-70C-CVL-K
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with 160 MPH top end
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer (one-time user settable, million mile), dual A/B trip meter (0-9,999.9), 12-hour clock, estimated range/miles to empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables, includes 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
Gauge bezel not included; system uses an OEM or reproduction style bezel. The gauge carrier (sold separately) is required for installation. Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed. Gear position indicator requires the optional GSS-3000 sensor, sold separately. Part # 130011 allows for relocation of the pulse generator when additional clearance is required and is sold separately.
