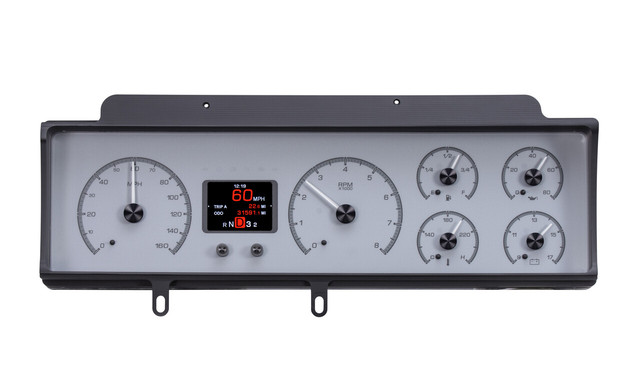

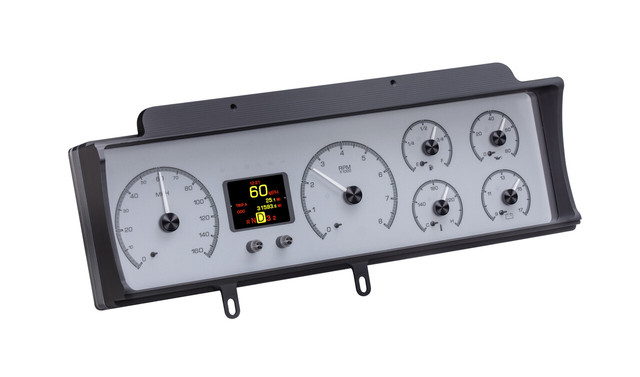

The Dakota Digital HDX-70C-MAL-S is a drop-in HDX instrument system designed for 1970-72 Chevy Malibu, non-SS Chevelle, and El Camino models equipped with the sweep-style cluster. This system replaces the original indicator strip with a full digital/analog instrument package, featuring six analog gauges, a large TFT message center for auxiliary readings, a new front lens, and rear housing, all finished in silver face styling.
Each HDX system allows independent illumination color selection for gauge readings, needles, and the message center. Calibration and personal settings are controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the control buttons.
Installation is simplified with a central control box that uses vehicle-harness sourced signals along with supplied solid state sending units that connect cleanly to their respective terminals. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Six analog gauges plus a large TFT digital message center
- New front lens and rear housing; eliminates the original indicator strip
- Silver alloy gauge-face styling
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes, plus fully customizable color zones
- Full LED/RGB backlighting with independent day and night themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Onboard capacitive-touch pushbuttons with LED lighting and Bluetooth app control for Apple and Android devices
- Central control box simplifies installation with vehicle-harness sourced signals
Specifications
- Part Number: HDX-70C-MAL-S
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH with 160 MPH top end range)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; requires approximately 5" of clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
