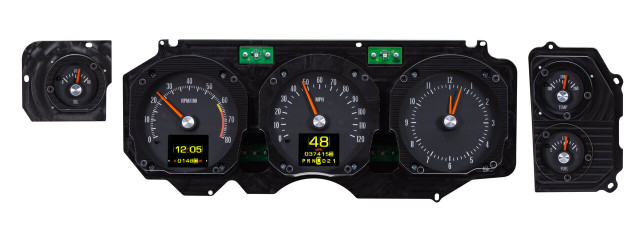

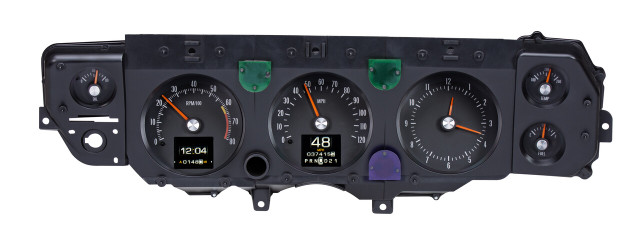

The RTX-70C-CVL-X Instrument System brings Dakota Digital's latest RTX technology to the 1970-72 Chevy Chevelle SS, Monte Carlo, El Camino and 1971 GMC Sprint SP, retaining the classic six round gauge opening layout that muscle car purists expect while delivering the late-model features pro-touring enthusiasts crave. Two high-definition TFT message centers are built into the gauge faces, displaying essential information with the ability to call up additional readings for the serious driver. Green, blue and red LEDs illuminate the stock-style turn signal, high beam and brake indicators for an authentic factory appearance.
Designed as a bolt-in upgrade, this system installs into a stock or reproduction gauge carrier and bezel, both available separately. Every effort has been made to incorporate OEM design elements in the layout, face styling and indicators, so the system looks right at home at a casual glance. Once the LED backlighting is switched on, the full-color customization capability becomes apparent, allowing the owner to dial in a look that is anywhere from subtle and OE-correct to bold and modern.
Each CNC-machined housing is filled with electronics designed and built in-house by Dakota Digital. The system is operated through a central control box and a two-sided pushbutton rocker switch, simplifying installation, calibration and day-to-day operation. Configuration can also be handled through Dakota Digital's free mobile app for Android and Apple devices.
Key Features
- Six round gauge openings matching the original Chevelle SS/Monte Carlo/El Camino/Sprint SP layout
- Two TFT digital message centers with user-configurable readouts
- Green, blue and red LED indicators for turn signals, high beam and brake

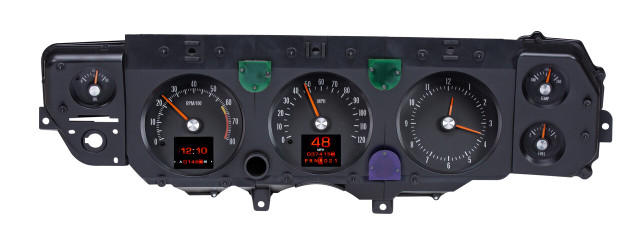

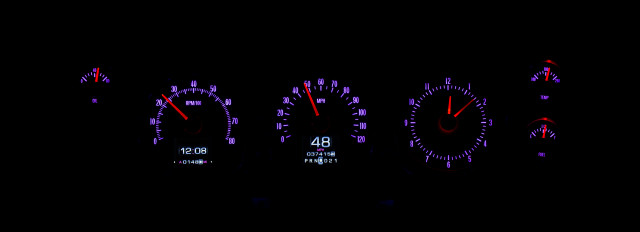

- Over 30 user-selectable color options for needle, sweep and TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- Full LED backlighting with independent daytime and nighttime brightness control, toggled by the headlight switch
- Pushbutton rocker switch control plus Bluetooth mobile app configuration and real-time diagnostic readouts
- Bolts into a stock or reproduction gauge carrier and bezel
Specifications
- Part Number: RTX-70C-CVL-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Displays
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall and high RPM recall
Built-In Indicators
- Turn signals (left/right), high beam, check engine, parking brake
- Cruise control (on/on & engaged, when equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 and wait-to-start indicators (when equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable-driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; relocation available using Part # 130011, sold separately)
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread sizes
Notes

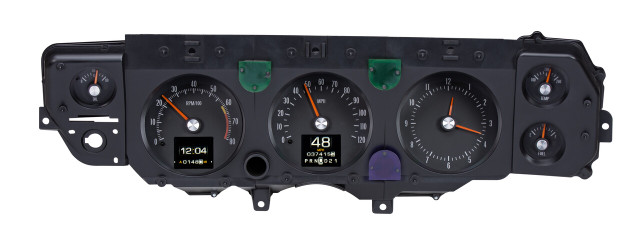

- Bezel not included; system uses an OEM or reproduction style bezel and gauge carrier, both available separately
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as desired
- DIM-1 accessory available for on-the-fly rotary brightness control
- GPS-50-2 can be used to eliminate the need for speedometer calibration
