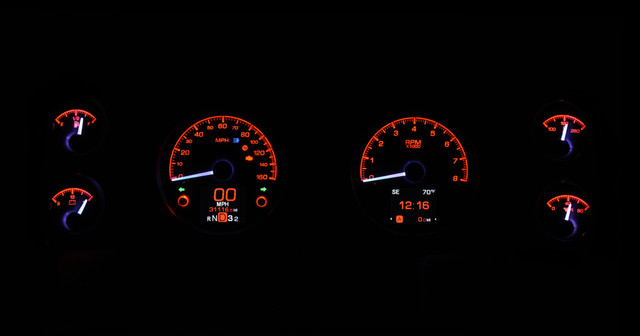

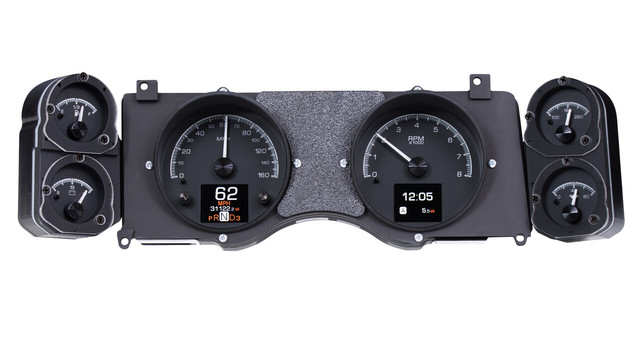

The Dakota Digital HDX-70C-CAM-K is a fully configurable HDX instrument system designed as a bolt-in replacement for 1970-81 Chevy Camaro models. This black face system combines six analog gauges with stepper motor needle movements and twin TFT digital message centers, bringing modern electronics to the Camaro's classic driver-oriented cockpit layout.
User-settable illumination allows independent color selection for gauge readings, needles, and message center displays, ensuring a perfect match to any interior theme. Calibration and personalization are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid state sending units to their respective terminals.
This system utilizes a stock or reproduction bezel, which is not included.
Key Features
- Black alloy gauge-face styling with black nickel plated spun-aluminum needle hubs
- Twin TFT digital message centers alongside six analog gauges with stepper motor movements
- Over 30 user-selectable color options for independent needle, sweep, and digital display colors
- 12 factory preset color themes, plus fully customizable color zone options
- Full LED/RGB backlighting with separate daytime and nighttime brightness and theme settings
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light sweep on each analog gauge
- Onboard capacitive-touch pushbuttons with LED-lit feedback, plus full Bluetooth app configuration for Android and Apple devices
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-70C-CAM-K
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260ºF
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness; sensor requires approximately 5" clearance between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
Bezel not included; this system uses an OEM or reproduction style bezel. Gear position indicator requires the optional GSS-3000 sensor. Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required. The DIM-1 is available as a common accessory for on-the-fly rotary brightness control.
