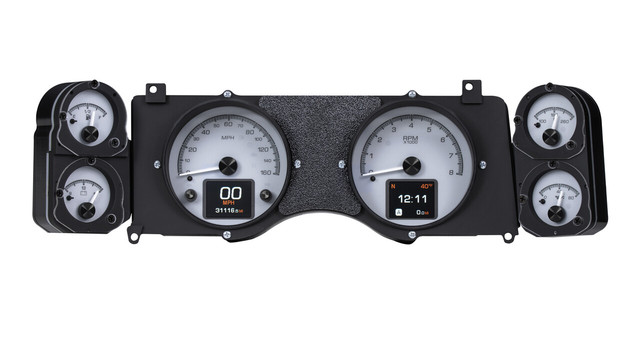

The Dakota Digital HDX-70C-CAM-S is a direct bolt-in instrument system designed for 1970-81 Chevy Camaro models, featuring a silver alloy gauge face. This HDX package combines six analog gauges with stepper motor needle movements alongside twin, fully configurable TFT message centers, giving drivers a modern, feature-rich upgrade while retaining a classic analog look. User-settable illumination allows the gauge readings, needles, and message centers to be matched to any interior theme.
Calibration and personalization are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the button finish. The system includes dead-faced indicators for turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators, along with a red, settable warning light for each gauge. A central control box simplifies installation by using vehicle-harness sourced signals along with supplied solid-state sending units that connect cleanly to their respective terminals.
This system uses an OEM or reproduction style bezel; a bezel is not included with the kit.
Key Features
- Silver alloy gauge face with over 30 user-selectable illumination colors for needles, sweep, and digital TFT displays
- Six analog gauges with stepper motor needle movements plus twin configurable TFT message centers
- Capacitive-touch pushbutton controls through the gauge face, with optional Bluetooth app control for Apple and Android devices
- 12 factory preset color themes or fully custom color zone selection
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two auxiliary inputs
- Red LED warning indicator built into each analog gauge sweep (except speedometer)

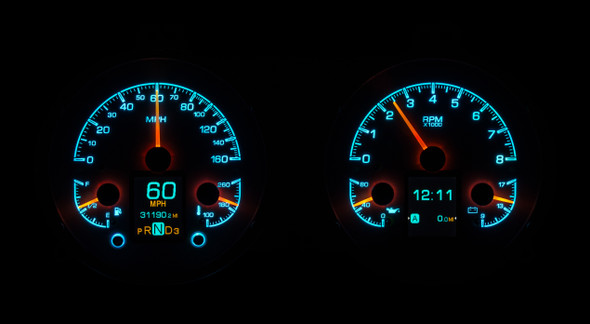

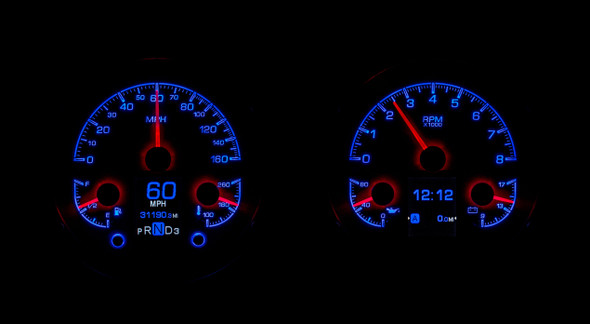

- Full RGB LED backlighting with independent day and night themes, adjustable through the headlight switch
- Direct bolt-in design using vehicle-harness sourced signals for simplified installation
Specifications
- Part Number: HDX-70C-CAM-S
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH with 160 MPH top end
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour format
- Estimated Range/Miles to Empty display
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed for use with an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
