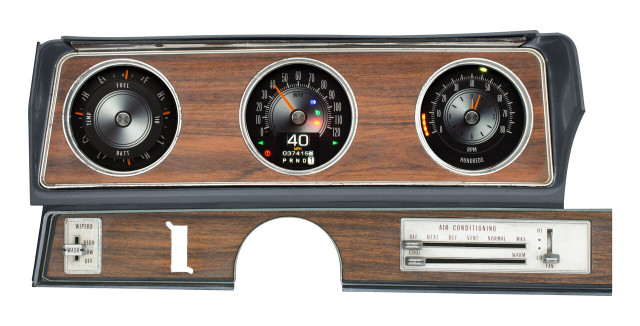

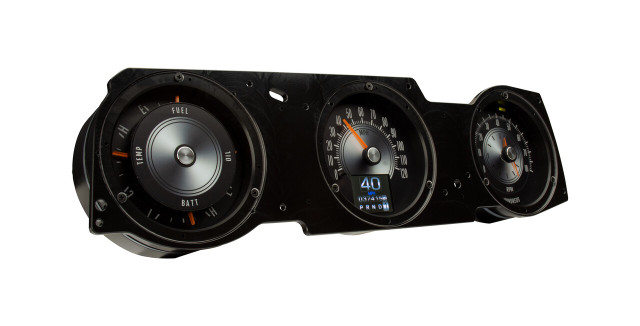

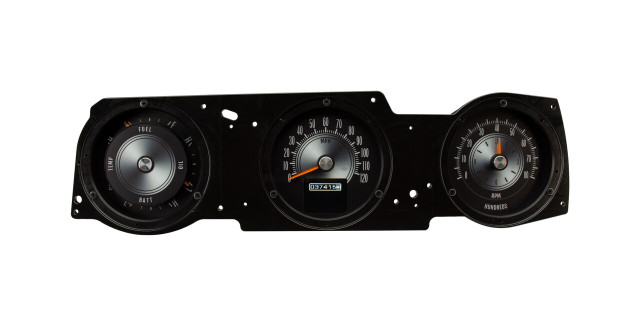

The Dakota Digital RTX-70O-CUT-X System brings a 21st-century instrumentation upgrade to the 1970-72 Oldsmobile Cutlass/442 while retaining the familiar factory look of the original round-gauge dash. A quad-pack of auxiliary gauges is positioned on the left side, an OEM-styled speedometer and programmable message display occupy the center, and a clock along with an LED bar-graph tachometer fill the right-side location.
The RTX series is built to retain that stock appearance without sacrificing modern features. Extensive attention has been paid to OEM design elements in layout, face styling, and indicators, so at a casual glance the system could pass for original equipment. Once powered on, the full LED backlighting reveals a wide range of customizable color options that set this system apart.
Each system starts with CNC-machined housings filled with electronics designed and built in-house by Dakota Digital. High-definition TFT message centers can be configured to display a wide range of vehicle information, and a central control box simplifies installation and setup.
Key Features
- OEM-style layout with quad auxiliary gauge pack, center speedometer/message display, and clock/tachometer cluster
- CNC-machined gauge housings with in-house designed electronics
- High-definition TFT digital message center, fully configurable
- Central control box for simplified installation and setup
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting with independent day and night themes
- Adjustable day/night brightness control, toggled by the headlight switch
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Specifications
- Part Number: RTX-70O-CUT-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12 Hour Analog Clock Movement
- Standard Displays: Odometer (settable, million mile), Dual (A/B) Trip Meter (0-9,999.9), 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Built-in Indicators: Turn Signals (Left/Right), High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional GSS-3000 sensor required), 4x4, Wait to Start, and two auxiliary input indicators with user-programmable labels
Notes

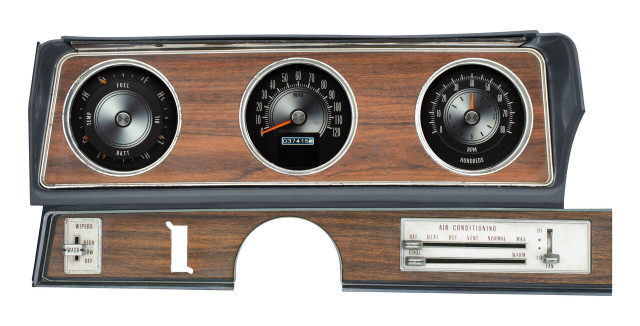

- Bezel not included; system uses OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as desired
- DIM-1 accessory available separately for on-the-fly rotary brightness control
- GSS-3000 sensor required separately for Gear Position indicator functionality
