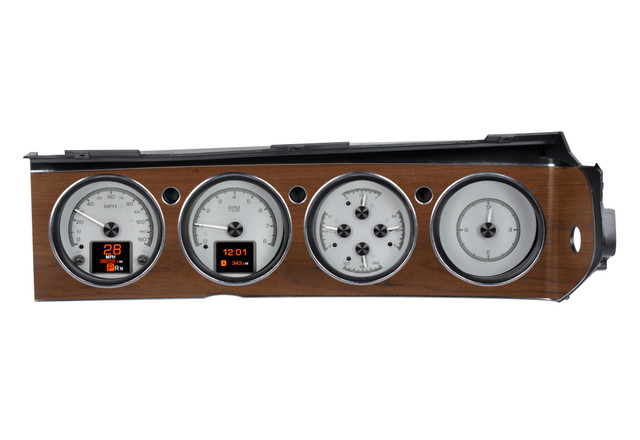

The Dakota Digital HDX-70D-CLG-S is a direct bolt-in instrument upgrade for 1970-74 Dodge Challenger and Plymouth 'Cuda models equipped with the Rallye dash. Designed to use the stock front bezel, this system brings modern electronics and readability to the factory gauge location while retaining the correct vintage appearance with a silver alloy gauge-face styling.
The HDX system features six analog instruments plus a clock, accented by two large, full-color TFT message centers that provide extensive driver information and performance data. Turn signals and brake indicators are illuminated by LEDs, and the user can independently select illumination colors for gauge readings, needles, and message centers to suit personal preference.
Calibration and personalization are handled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is finished in black nickel plated spun-aluminum to match the buttons, and a central control box simplifies installation using vehicle-harness sourced signals along with supplied solid-state sending units.
Key Features
- Six analog instruments plus a 12-hour analog clock
- Two full-color TFT digital message centers for expanded information display
- Silver alloy gauge-face styling
- Over 30 user-selectable color options for needles, sweep, and digital displays
- 12 factory preset color themes or fully custom color zone selection

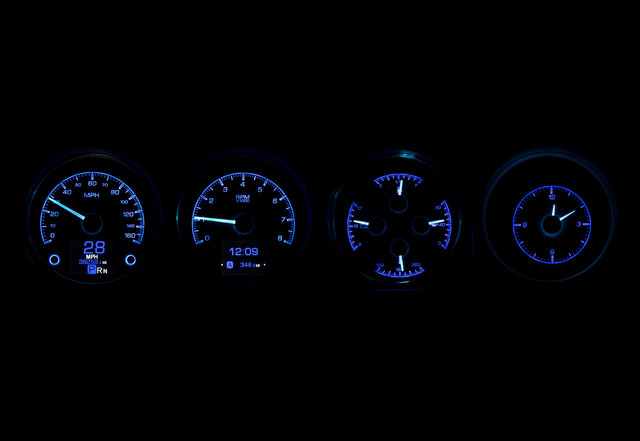

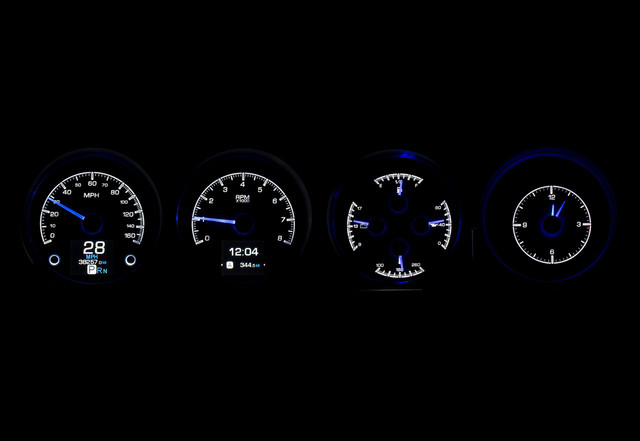

- Full LED/RGB backlighting with independent day and night themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each gauge
- Onboard capacitive-touch pushbutton controls plus Bluetooth app configuration for Apple and Android devices

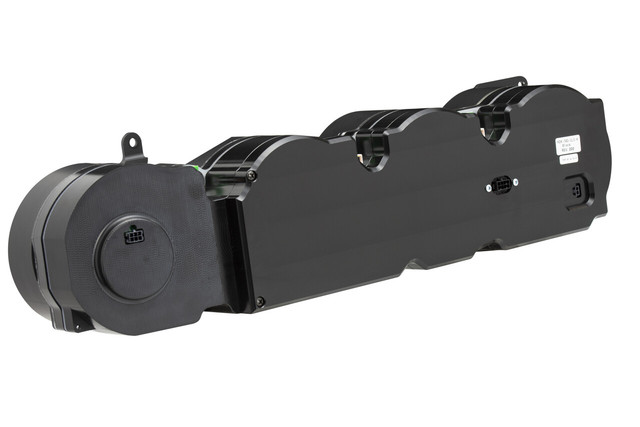

- Central control box simplifies wiring with vehicle-harness sourced signals
- Uses OEM or reproduction style bezel
Specifications
- Part Number: HDX-70D-CLG-S
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12 Hour Analog Clock Movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, requiring approximately 5" clearance between the cable drive output and any obstruction
- Bushings for 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread applications
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 accessory available separately for on-the-fly rotary dimming control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
