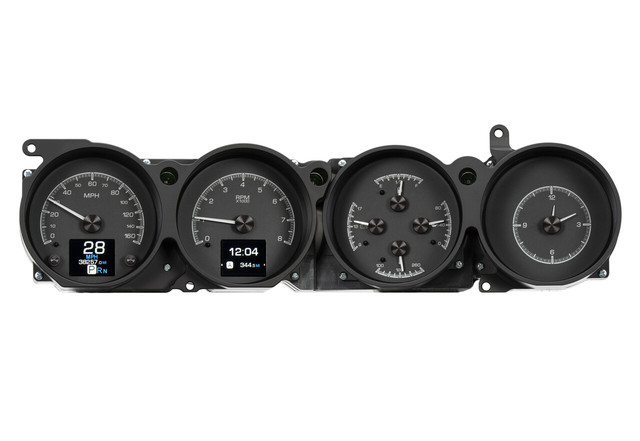

The Dakota Digital HDX-70D-CLG-K is a direct bolt-in instrument upgrade for 1970-74 Dodge Challenger Rallye dash applications, featuring black alloy gauge-face styling. Six analog instruments plus a clock are paired with two large, full-color TFT message centers to deliver comprehensive driver awareness while retaining the factory look.

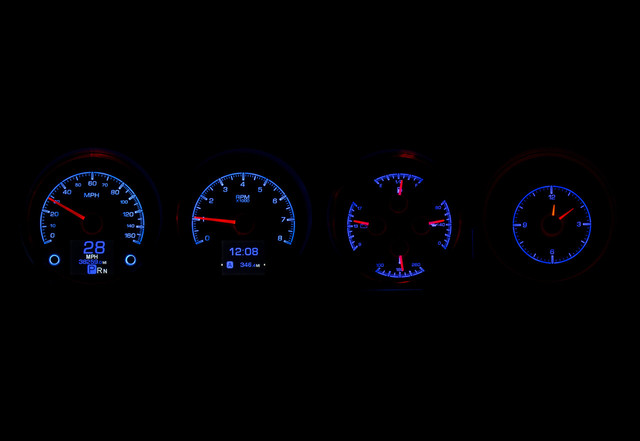

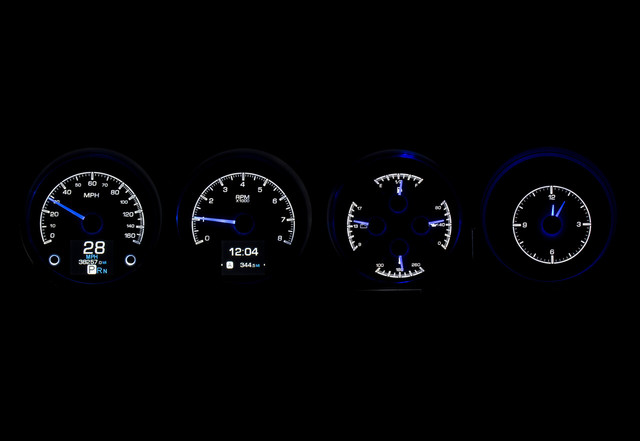

This system works with the stock front bezel and includes turn signal and brake indicators lit by LEDs. Users can independently select illumination colors for the gauge readings, needles, and message centers, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
Installation is simplified with a central control box that sources signals from the vehicle harness, along with supplied solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Black alloy gauge-face styling
- Six analog instruments plus analog clock, accented by two full-color TFT message centers
- Compatible with stock front bezel
- LED-lit turn signal and brake indicators
- Over 30 user-selectable color options for needles, sweep, and digital TFT displays
- 12 factory preset color themes or fully custom color zone selection
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light for each gauge
- Onboard capacitive-touch pushbutton controls with Bluetooth app support for Apple and Android devices
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-70D-CLG-K
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH speedometer, with top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12 Hr Analog Clock Movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; sensor requires approximately 5" clearance extending between the cable drive output and any obstruction (Part # 130011 sold separately for relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, along with bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for the application
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- DIM-1 accessory available separately for on-the-fly rotary brightness control
