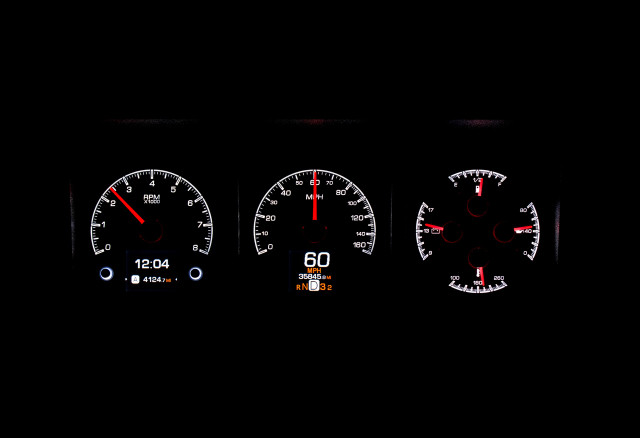

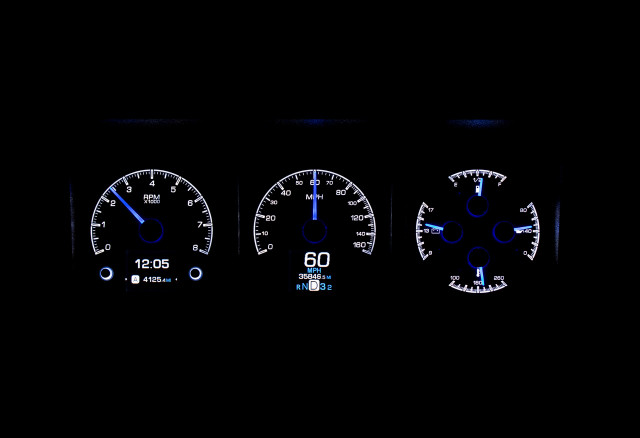

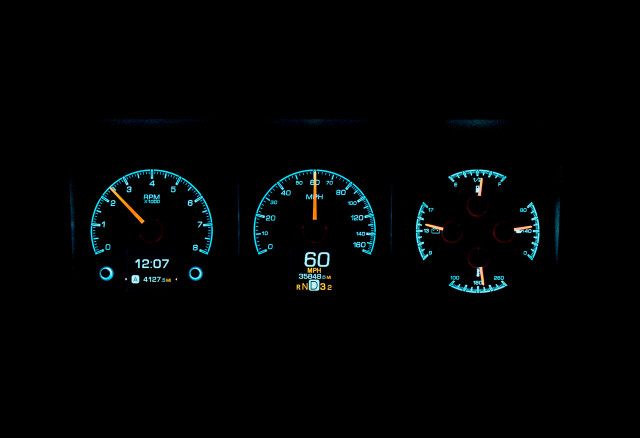

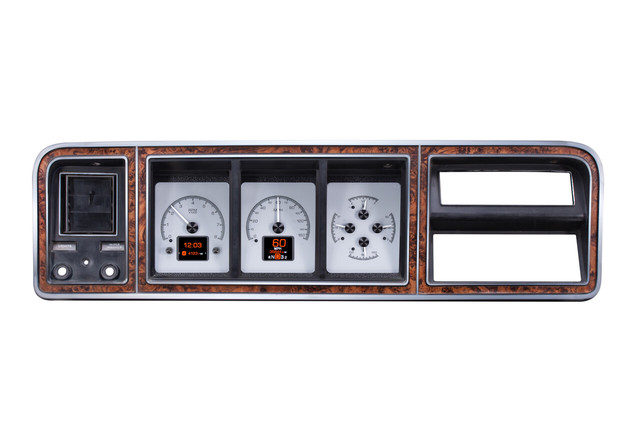

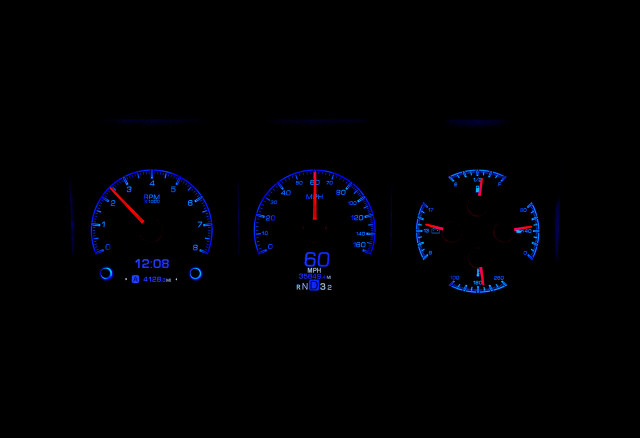

The Dakota Digital HDX-73F-PU-S brings 21st century instrumentation technology to your 1973-79 Ford Pickup, featuring a silver alloy gauge-face styling in a direct-fit design for the triple-square dash. This system allows the user to select independent illumination colors for the gauge readings, needles, and message centers, while a full-color TFT message center provides additional information at a glance. Supplied sensors and available expansion modules allow this system to mate with the drivetrain of your choice.
Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators and a red, settable warning light for each gauge. The central control box greatly simplifies installation with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminals.
Note: this system does not fit the E-Van. The system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Silver alloy gauge-face styling
- Full-color TFT digital message center
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting with independent day and night themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red LED sweep indicator on each analog gauge for quick notice of a warning condition
- LED-lit onboard capacitive touch pushbuttons for setup and driving mode functions
- Bluetooth app compatibility for Android and Apple devices for configuration and real-time gauge readouts

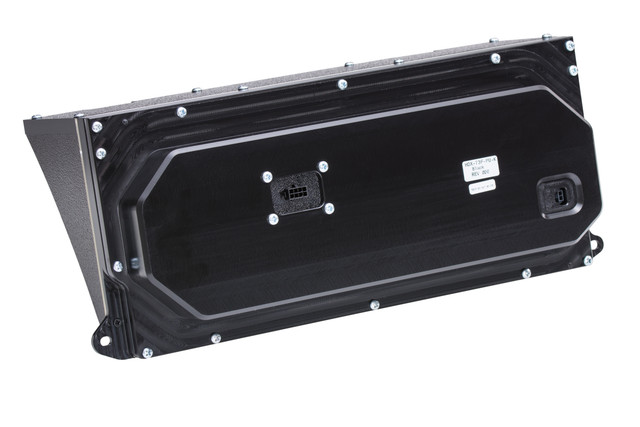

- Central control box simplifies installation with vehicle-harness sourced signals
Specifications
- Part Number: HDX-73F-PU-S
- Speedometer: 0-160 MPH, split scale provides resolution of a 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- 12-hour Clock
- Estimated Range/Miles to Empty
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables, includes a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 sold separately for relocation of the pulse generator when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Does not fit the E-Van
- Optional GSS-3000 sensor required for gear position indicator
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
