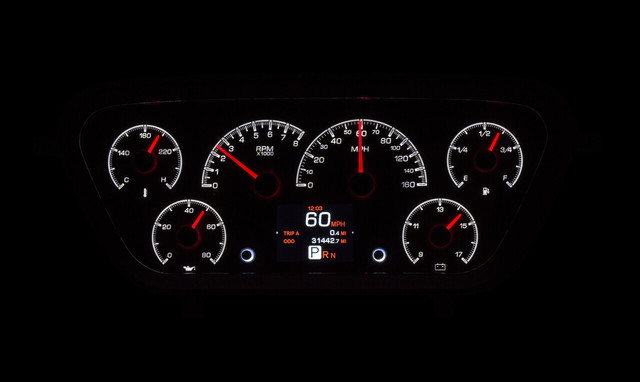

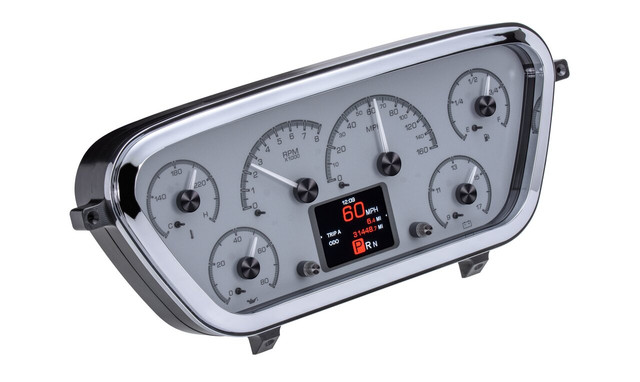

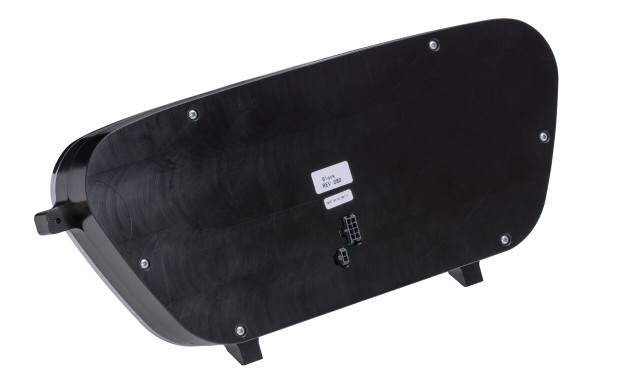

The Dakota Digital HDX-53F-PU-S is a complete HDX instrument system engineered specifically for the 1953-55 Ford F100 pickup's distinctive trapezoid-shaped dash opening. A new bezel is milled from a solid chunk of aluminum to fit the stock dash exactly, then chromed for a factory-correct appearance, and filled with six analog instruments and a large TFT message center. Included sensors allow the system to monitor your choice of drivetrain components.
This system features silver alloy gauge-face styling, with independently selectable illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are manipulated through the built-in, capacitive-touch buttons, or through the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), along with a red, settable warning light for each gauge. The included central control box simplifies installation with vehicle-harness sourced signals and supplied, solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Reproduction chrome bezel milled to fit the stock 1953-55 Ford F100 dash exactly
- Six analog gauges plus a large TFT digital message center
- Silver alloy gauge-face styling

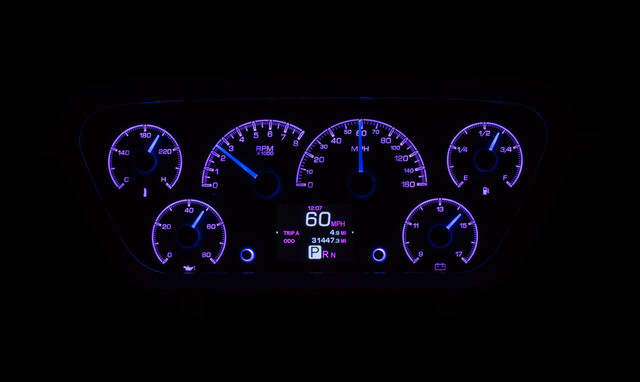

- Over 30 user-selectable color options for independent control of needle, sweep, and digital display colors
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting with separate daytime and nighttime themes
- Dead-faced indicators for turn signals, high beam, check engine, cruise control, parking brake, and two user-definable functions
- Red, settable warning indicator built into each analog gauge sweep
- Onboard capacitive-touch pushbutton controls with LED-lit feedback through the gauge face
- Bluetooth app support for Apple and Android devices for setup, calibration, and real-time gauge readouts
- Black nickel plated spun-aluminum needle hubs matching the control buttons
- Central control box with vehicle-harness sourced signals for simplified installation
Specifications
- Part Number: HDX-53F-PU-S
- Speedometer: 0-160 MPH, split scale provides resolution of a 120 MPH speedometer with a 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer (one-time user settable, million mile), Dual (A/B) Trip Meter (0-9,999.9), 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces Ford and/or GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed to suit the application
- Gear Position indicator requires the optional GSS-3000 sensor, sold separately
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Speedometer calibration is not required when the GPS-50-2 accessory is used
- DIM-1 accessory (sold separately) is available for on-the-fly rotary dimmer control
