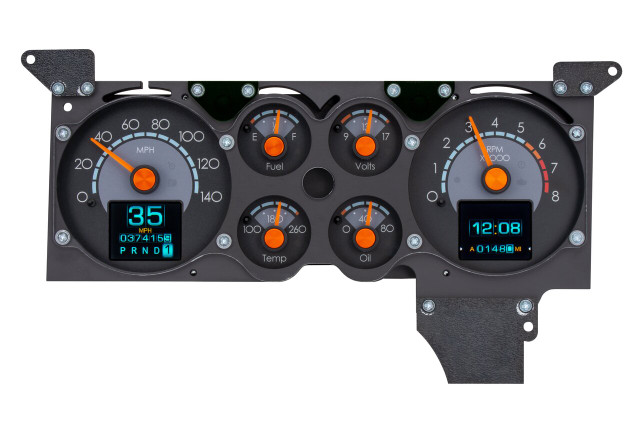

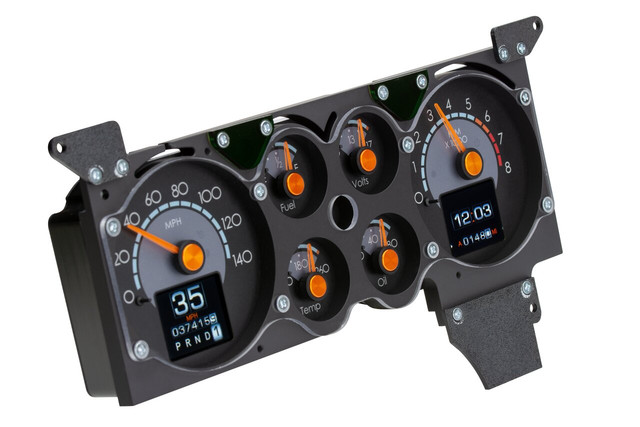

The Dakota Digital RTX-86C-MC-X is a direct-fit RTX Instrument System designed for the 1986-88 Chevy Monte Carlo, featuring the later-style instrument cluster design combined with full-color LED backlighting and a TFT message center display. It installs using your stock, round-gauge style cluster location; it does not fit rectangular sweep-style speedometer clusters.
Every effort has been made to incorporate OEM design elements into the layout, face styling, and indicators, so the system maintains a factory appearance until the LED backlighting is activated in the color scheme of your choice. CNC machined housings are filled with in-house designed and built electronics, and the high-definition TFT message center can be configured to display a wide range of information. A central control box simplifies installation and setup.
This system uses an OEM or reproduction style bezel; the bezel and housing are not supplied with the instrument system.
Key Features
- Direct-fit replacement for 1986-88 Chevy Monte Carlo round-gauge style clusters
- Full LED backlighting with over 30 user-selectable color options for needle, sweep, and digital TFT display colors
- 12 factory preset color themes or fully custom color zone selection
- High-definition TFT message center with configurable displays
- CNC machined housings with in-house designed electronics
- Central control box for simplified installation and setup
- Pushbutton rocker switch control with button-press feedback through the TFT display or included buzzer
- Free mobile app (Android and Apple) for configuration, real-time gauge readouts, and diagnostics
- Daytime and nighttime brightness control, toggled by the headlight switch
Specifications
- Part Number: RTX-86C-MC-X
- Speedometer: 0-140 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (part # 130011 available separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Digital Message Center Displays
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall
- High RPM recall
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/engaged, when equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 (when equipped)
- Wait to start (when equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Notes
- Bezel and housing are not included; system uses an OEM or reproduction style bezel
- Will not fit rectangular sweep-style speedometer clusters
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 accessory available for on-the-fly rotary brightness control (sold separately)
