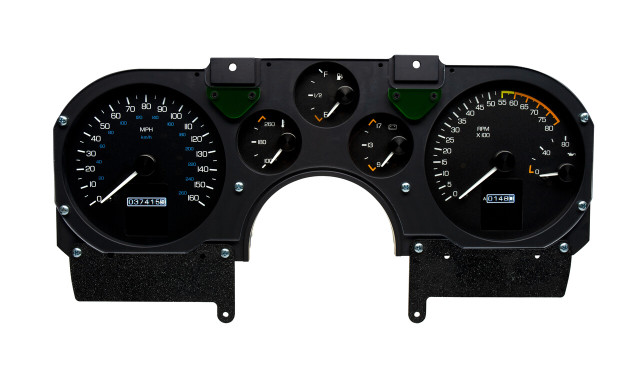

Update the dash of a 1982-89 Chevy Camaro with the RTX Instrument System from Dakota Digital. Designed for third generation Camaros, this system retains that factory appearance while delivering the late-model features and technology enthusiasts want. Careful attention was given to OEM design elements, including layout, face styling and indicators, so the gauges look right at home in the original dash opening. This system does not fit the Berlinetta digital dash.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house. A high-definition TFT message center can be configured to display a wide range of vehicle information, and a central control box simplifies installation and setup. Full LED backlighting with over 30 user-selectable color options lets the owner independently set needle color, sweep color and digital display color, with 12 factory preset themes available for a quick, great-looking setup or full custom color zone selection.
This system uses an OEM or reproduction style bezel; the bezel itself is not included with the instrument system.
Key Features
- Analog speedometer, tachometer, oil pressure, water temperature, fuel level and voltmeter gauges
- High-definition TFT digital message center with odometer, dual trip meters, 12-hour clock and estimated range/miles to empty
- Built-in performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, and two auxiliary inputs with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable color options for needle, sweep and TFT display colors, with 12 factory preset themes
- Daytime and nighttime brightness control through the RTX setup menu, tied to the headlight switch activation
- Pushbutton rocker switch control for calibration and menu navigation, with optional mobile app configuration for Android and Apple devices
Specifications
- Part Number: RTX-82C-CAM-X
- Speedometer Range: 0-160 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between the cable drive output and any obstruction; part number 130011 available separately for relocating the pulse generator when additional clearance is needed)
- Bushings for 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 threads
Kit Includes
- RTX analog gauge cluster with digital TFT message center
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Mounting bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Does not fit Berlinetta digital dash
- Optional GSS-3000 sensor required for gear position indicator functionality
- Optional GPS-50-2 can be used to eliminate the need for speedometer calibration
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
