Description

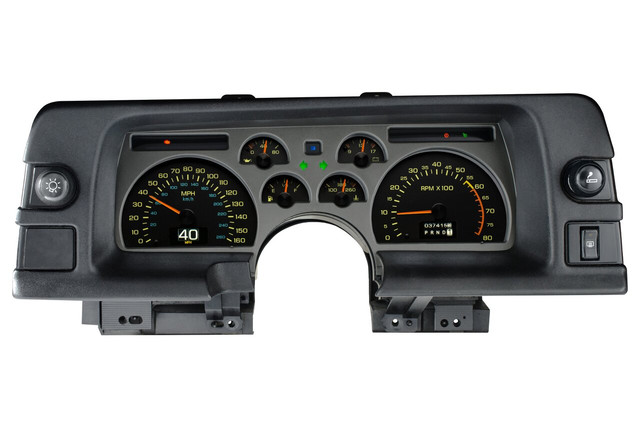

The Dakota Digital RTX-90C-CAM-X is a complete RTX Series instrument system designed for the 1990-92 Chevy Camaro. Built to retain the stock dash appearance while delivering modern electronic capability, this system incorporates OEM-style design elements in its layout, face styling, and indicators so the gauges blend seamlessly with the original dash. System uses an OEM or reproduction style bezel, which is not included.

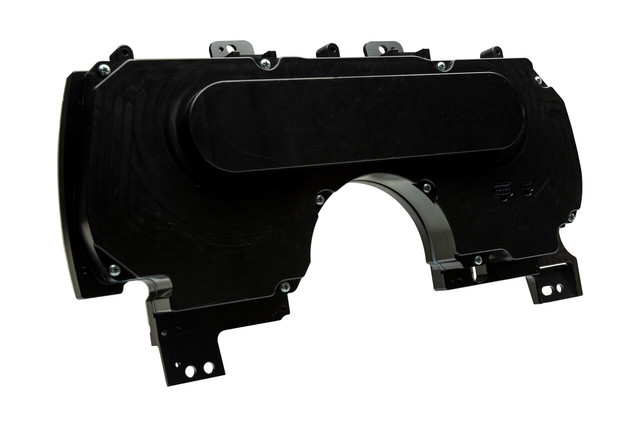

Each RTX system features CNC machined housings with electronics engineered and built in-house by Dakota Digital. A high-definition TFT message center can be configured to display a wide range of vehicle information, and a central control box simplifies installation and setup.
Full LED backlighting provides strong contrast and visibility day or night, with over 30 user-selectable color options for needle color, sweep color, and digital display color. Twelve factory preset color themes are included, or users can fully customize each color zone to their preference.
Key Features

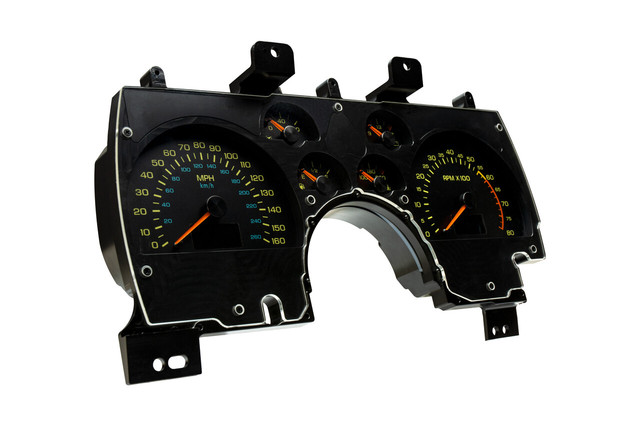

- Analog gauges: Speedometer (0-160 MPH), Tachometer (0-8,000 RPM), Oil Pressure (0-80 psi), Water Temperature (100-260°F), Fuel Level (E, 1/4, 1/2, 3/4, F), and Voltmeter (9-17 VDC)
- Digital message center with Odometer, Dual (A/B) Trip Meter, 12-hour Clock, and Estimated Range/Miles to Empty
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional GSS-3000 sensor required), 4x4, Wait to Start, and two auxiliary inputs with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable lighting colors with independent control of needle, sweep, and TFT display colors
- 12 factory preset color themes plus fully customizable color zones
- Daytime and nighttime brightness control, togglable via headlight switch activation
- Pushbutton control via included two-sided rocker switch for programming and operation
- Free mobile app (Android and Apple) for configuration, menu navigation, and real-time gauge readouts
Specifications
- Part Number: RTX-90C-CAM-X
- Vehicle Fitment: 1990-92 Chevy Camaro
- Speedometer Range: 0-160 MPH
- Tachometer Range: 0-8,000 RPM
- Oil Pressure Range: 0-80 psi
- Water Temperature Range: 100-260°F
- Fuel Level Display: E, 1/4, 1/2, 3/4, F
- Voltmeter Range: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 available separately for relocating the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear Position indicator requires the optional GSS-3000 sensor (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- On-the-fly rotary brightness control can be added with the optional DIM-1 accessory
