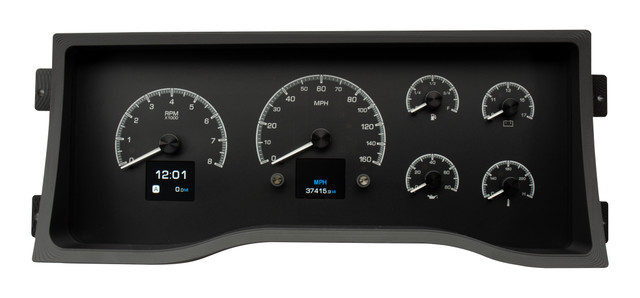

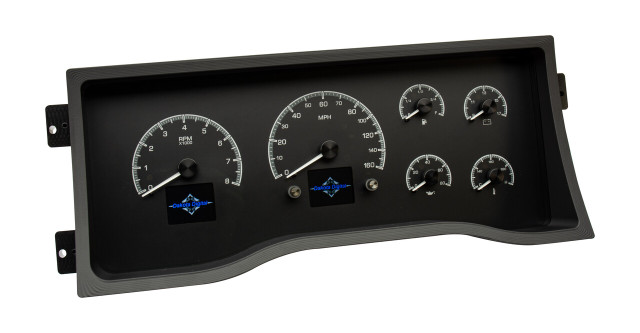

The Dakota Digital HDX-95C-PU-K is a direct bolt-in HDX Six-Gauge instrument system designed for 1995-98 Chevy/GMC pickup trucks, featuring a black alloy gauge face. While not a direct plug-in installation, the kit includes a range of sensors that wire into the OEM harness, bringing the full capability of the HDX lineup to your truck while fitting within the original dash housing.

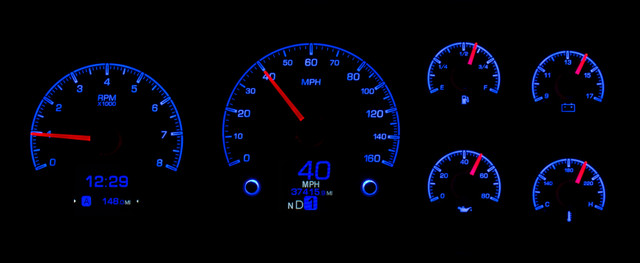

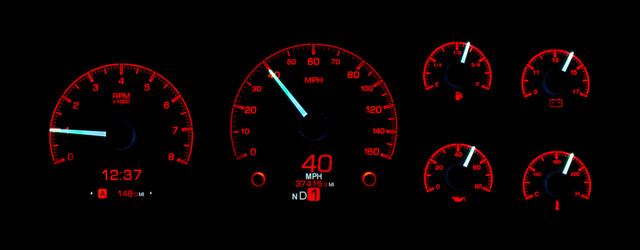

This system allows independent illumination colors for gauge readings, needles, and message centers, with calibration and personal settings controlled through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons. The HDX system features dead-faced indicators and a red, settable warning light for each gauge, with a central control box that simplifies installation using vehicle-harness sourced signals and supplied solid-state sending units.
This system uses an OEM or reproduction style bezel, which is not included.
Key Features
- Black alloy gauge-face styling
- Over 30 user-selectable color options for independently changing needle color, sweep color, and digital TFT display color
- 12 factory preset color themes, or fully customizable color zones
- Full LED/RGB backlighting for sharp contrast day or night
- Adjustable daytime and nighttime brightness, toggled by the headlight switch

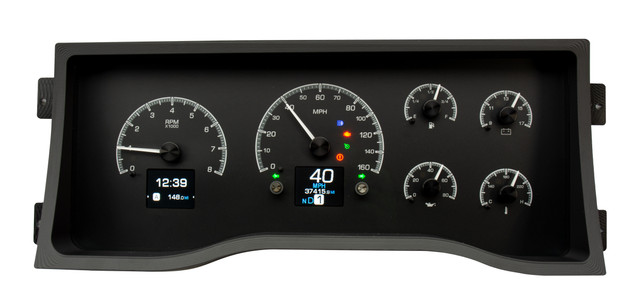

- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
- Onboard capacitive-touch pushbutton controls with LED-lit feedback through the gauge face
- Full Bluetooth app configuration and real-time gauge readouts for Apple and Android devices
- Central control box simplifies wiring with vehicle-harness sourced signals
Specifications
- Part Number: HDX-95C-PU-K
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour
- Estimated Range/Miles to Empty display
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- On-the-fly rotary dimming control available via optional DIM-1 accessory
