Description

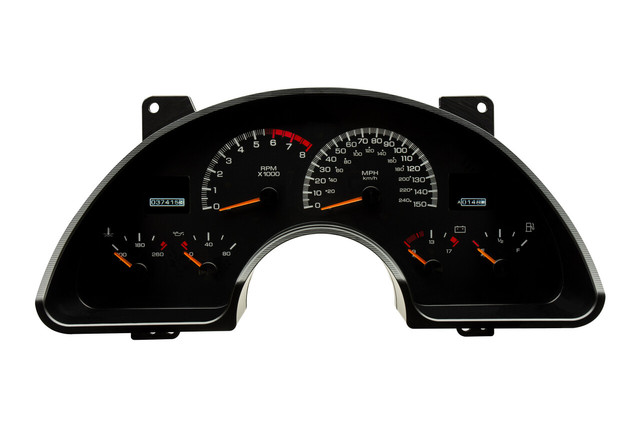

The RTX-97C-CAM-X RTX Instrument System is designed specifically for the 1997-2002 Chevrolet Camaro, including coupe and convertible models equipped with either manual or automatic transmissions, from base V6 trims up to the Z28 and SS with the 5.7L LS1. This system retains the OEM design elements of the factory dash while adding the late-model features and technology enthusiasts want, including CNC-machined housings and in-house designed electronics. The gauge faces and layout are built to mimic the stock appearance, but once powered on, the full LED backlighting and TFT message center reveal a dramatically updated instrument cluster.
For vehicles running OE or aftermarket fuel injection, pairing this system with the Dakota Digital BIM-01-2 interface module simplifies integration.
A central control box manages the system for straightforward installation and setup, and configuration can be done through the included pushbutton switch or the companion mobile app for Android and Apple devices.
Key Features
- Retains an OEM-style face layout and design while adding modern features
- Full LED backlighting with RGB capability, allowing independent color selection for needle, sweep, and TFT display
- Over 30 user-selectable color options plus 12 factory preset color themes
- Separate daytime and nighttime brightness settings, controllable through the setup menu or optional DIM-1 accessory
- High-definition TFT message center configurable to display a wide range of vehicle information
- Central control box for simplified installation and setup
- Pushbutton control with two-sided rocker switch for operation and calibration
- Full system configuration available through the free Dakota Digital mobile app
- Built-in indicators including turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait-to-start, and two programmable auxiliary indicators
- Each analog gauge sweep includes a red LED warning indicator (except speedometer)

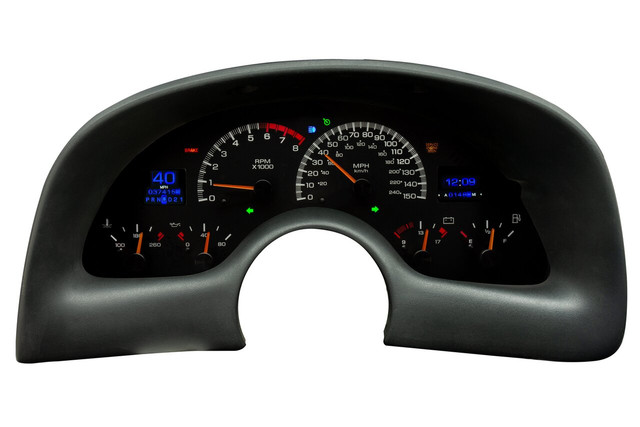

- System uses an OEM or reproduction style bezel
Specifications
- Part Number: RTX-97C-CAM-X
- Speedometer: 0-150 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed recall
- High RPM recall
- Gear position display (optional GSS-3000 sensor required)
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator replacing GM style speedometer cables, with 10 ft harness
- Assorted bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Speed sensor requires approximately 5" of clearance between the cable drive output and any obstruction; part # 130011 (sold separately) allows relocation of the pulse generator if additional clearance is needed
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for gear position display
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Speedometer calibration is not required when used with the optional GPS-50-2
