Description

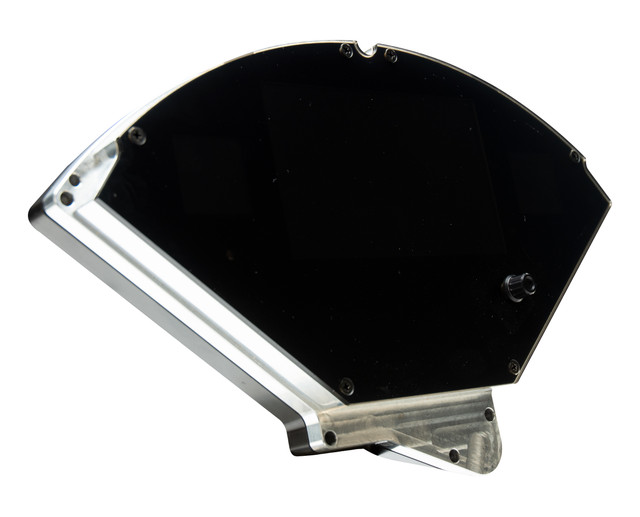

The Dakota Digital GRFX-55C Grafix Series instrument system is designed specifically for the 1955-56 Chevy Car, bringing fully customizable digital instrumentation to one of the most iconic cars of the Tri-Five era. The Grafix Series allows the user to personalize nearly every aspect of the display, including graphic themes, display colors, warning modes, and gauge styles.

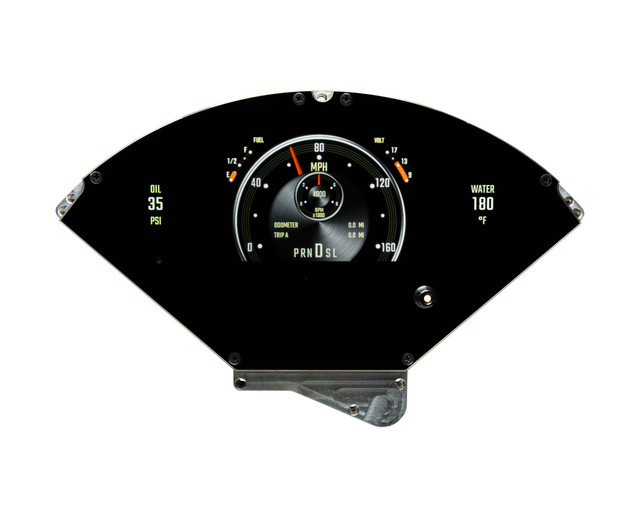

Each gauge location can be configured as Analog, Digital, or Bar-graph style, and displays can show readings singly, grouped in pairs, or reconfigured entirely to show different information. The system also integrates reverse backup video display capability, onboard GPS for automatic speedometer calibration regardless of tire size or gearing, and built-in Bluetooth technology for wireless access to the Dakota Digital App for configuration, calibration, and real-time diagnostics.
An external control module is used to simplify wiring and keep installation clean, and the system includes a complete sensor package. An optional GLC-55C clock with a chromed machined aluminum bezel is available separately to complement the instrument cluster. All Dakota Digital instrument systems are engineered and produced in Sioux Falls, South Dakota, and are backed by a Limited Lifetime Warranty.
Key Features
- Custom-fit design for 1955-56 Chevy Car applications
- Selectable Analog, Digital, or Bar-graph gauge display styles
- Reverse backup video display integration (camera sold separately)
- Onboard GPS technology for automatic, no-touch speedometer calibration
- Built-in Bluetooth connectivity with the Dakota Digital App for setup, calibration, and troubleshooting
- USB access port for field updates and future graphic theme imports
- Integrated G-force meter with graphical display
- Over 30 user-selectable color options with 4 factory preset themes and 12 color schemes
- Internal photo sensor for automatic brightness adjustment with auto high contrast and auto night mode
- External control module for simplified, tidy wiring installation
- Two-sided pushbutton rocker switch for easy on-the-fly control
Specifications
- Part Number: GRFX-55C
- Speedometer: Simulated needle range up to 200 MPH, digital numeric range up to 255 MPH
- Tachometer: Simulated needle and digital numeric range up to 16,000 RPM
- Oil Pressure: Simulated needle range up to 150 psi, digital numeric range up to 300 psi with optional sensor (SEN-03-9)
- Water Temperature: Simulated needle range up to 260°F, digital numeric range up to 300°F
- Fuel Level: Simulated needle range E to F, digital numeric range 0-100%
- Voltmeter: Simulated needle and digital numeric range up to 18 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Centers
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- Digital clock (12 hour)
- Estimated range/miles to empty
- Hour meter
- 0-60 MPH timer
- 1/4 and 1/8 mile time and trap speed
- High speed and high RPM recall
- G-Meter (G-Force)
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/engaged when equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 and wait-to-start (when equipped)
- Two auxiliary input indicators with user-programmable labels
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid-state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM-style speedometer cables, 10 ft harness, requires approximately 5" clearance (relocation kit part # 130011 sold separately if needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- GLC-55C clock with chromed machined aluminum bezel is available separately
- SPKR-55 speaker bezel is available separately
- Backup cameras are available separately with full-length wire harness and universal mounting
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
