Description
Description

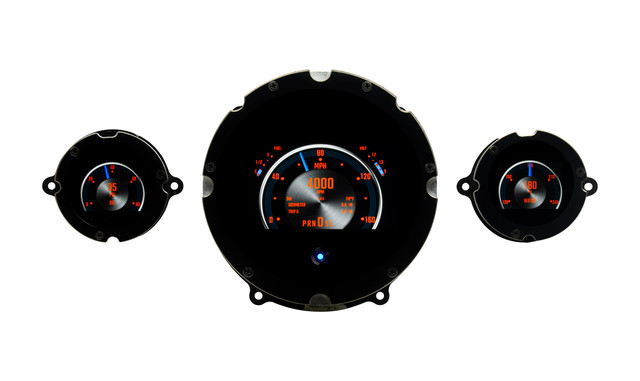

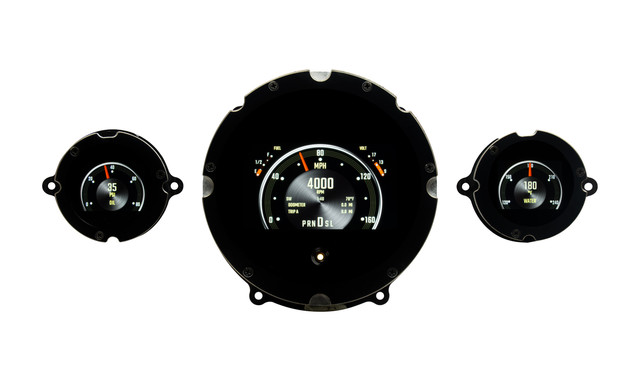

The Dakota Digital GRFX-57C is a revolutionary Grafix Series instrument system engineered to fit directly into the stock bezels of a 1957 Chevy car, bringing a fully modern, customizable gauge display to one of the most iconic cars ever produced. Nearly every aspect of the display can be personalized, with multiple graphic themes, user-selectable colors, and warning modes, while each gauge location can be configured as Analog, Digital, or Bar-graph style, shown singly, paired for twice the visible data, or reconfigured entirely.
The GRFX-57C integrates a reverse backup video display directly within the instrument cluster using its largest onboard display, with compatible backup cameras available separately. Onboard GPS technology enables automatic, no-touch speedometer calibration regardless of tire size or gearing, while a wired VSS source provides a real-time speed signal. Built-in Bluetooth connects to the Dakota Digital App for configuration, calibration, and real-time diagnostics, and a USB port allows for future field updates and new graphic theme imports. An integrated G-force meter displays real-time driving dynamics for cornering, launching, and braking.
As with all Dakota Digital systems, the GRFX-57C utilizes an external control module to simplify wiring and keep the installation clean. A matching GLC-57C clock is available separately for the passenger side. Completely engineered and produced in Sioux Falls, South Dakota, this system carries a Limited Lifetime Warranty.
Key Features
- Designed to fit stock 1957 Chevy car dash bezels

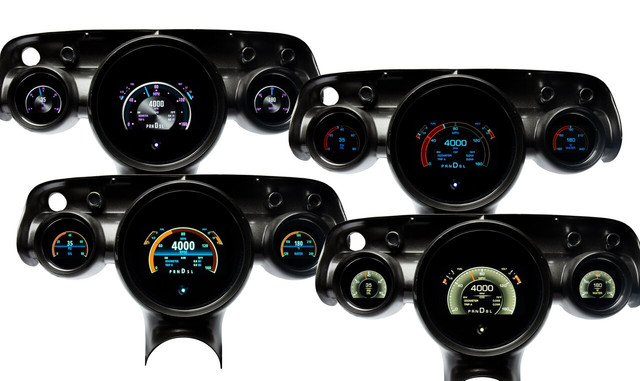

- Multiple graphic themes with fully customizable display colors and warning modes
- Each gauge location configurable as Analog, Digital, or Bar-graph style
- Reverse backup video display integration (camera sold separately)
- Onboard GPS for automatic, no-touch speedometer calibration
- Built-in Bluetooth with free Dakota Digital App for setup, calibration, and diagnostics
- USB access port for field updates and new graphic theme imports
- Integrated G-force meter display
- External control module for simplified wiring and a clean installation
- Pushbutton rocker switch control plus full mobile app configuration
- Limited Lifetime Warranty
Specifications
- Part Number: GRFX-57C
- Speedometer: Simulated needle range up to 200 MPH, digital numeric range up to 255 MPH
- Tachometer: Simulated needle and digital numeric range up to 16,000 RPM
- Oil Pressure: Simulated needle range up to 150 psi, digital numeric range up to 300 psi with optional 0-300 psi sensor (SEN-03-9)
- Water Temperature: Simulated needle range up to 260°F, digital numeric range up to 300°F
- Fuel Level: Simulated needle range E, 1/4, 1/2, 3/4, F; digital numeric range 0-100%
- Voltmeter: Simulated needle and digital numeric range up to 18 VDC
- Clock: 12-hour analog/digital movement
- Over 30 user-selectable colors for needle, sweep, and digital display
- Internal photo sensor for automatic brightness with auto high-contrast and auto night modes
- 4 factory preset gauge themes with 12 color schemes, plus full custom color zone selection
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground-isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid-state sensor with 10 ft harness
- Cable-Driven Speed Sensor/Generator: Replaces GM-style speedometer cables with 10 ft harness; requires approximately 5" clearance (relocation part #130011 sold separately if needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- GRFX-57C gauge cluster
- External control module
- Two-sided pushbutton rocker switch
- Water temperature, oil pressure, and speedometer pulse generator sensors with full-length harnesses
- Assortment of sensor bushings
Notes
- Gear Position indicator requires optional GSS-3000 sensor
- Backup camera available separately for reverse video display
- Optional DIM-1 dimming knob available for manual brightness control
- Matching GLC-57C clock available separately for passenger side
- Not all OEM indicator lamp functions are replaced; unused indicators may be repurposed as needed
