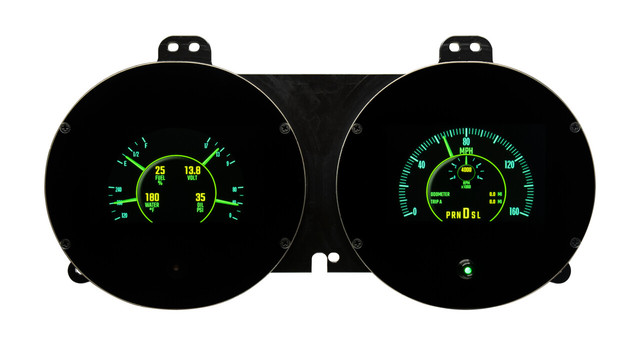

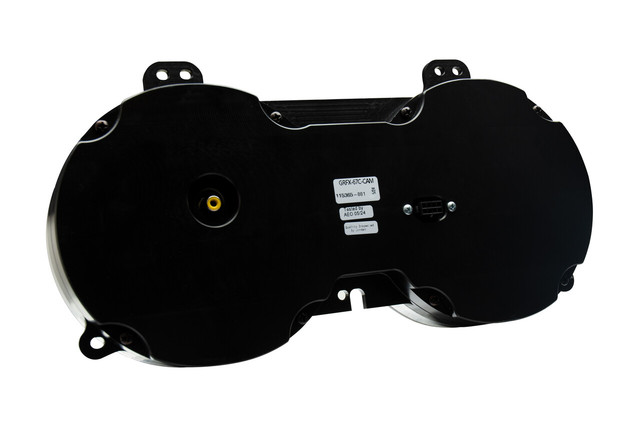

The Dakota Digital GRFX-67C-CAM is a fully customizable Grafix Series instrument system engineered specifically for the 1967-68 Chevy Camaro and Pontiac Firebird. Designed to replace the factory gauge cluster, the GRFX system allows users to personalize nearly every aspect of their instrumentation, from graphic themes and display colors to warning modes and gauge styles.

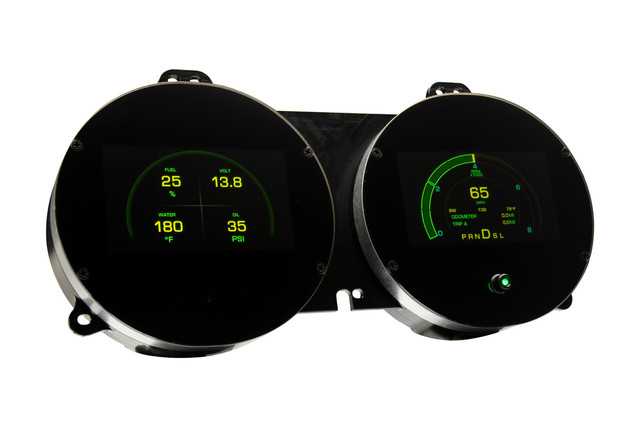

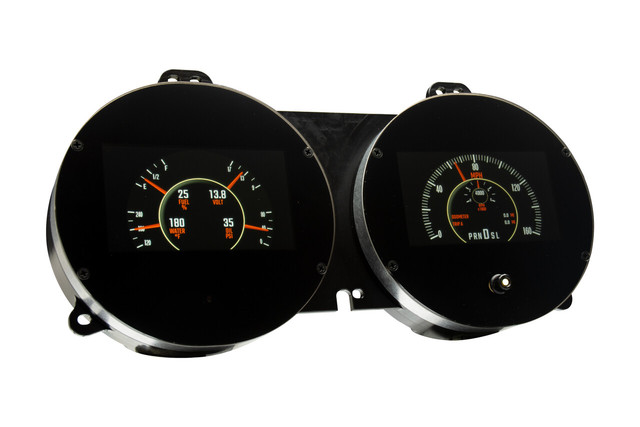

Each gauge location can be configured as Analog, Digital, or Bar-graph style, with readings displayed individually, in pairs, or reconfigured entirely to show different data. The system also introduces reverse backup video display capability, showing live camera footage directly within the instrument cluster using compatible Dakota Digital backup cameras (sold separately).
Onboard GPS technology enables automatic speedometer calibration regardless of tire size or gearing, while built-in Bluetooth connectivity allows wireless access to the Dakota Digital App for configuration, calibration, and real-time diagnostics. An external control module keeps wiring clean and organized, and a complete sensor package is included for a simplified installation.
Key Features
- Customizable graphic themes, display colors, and warning modes
- Analog, Digital, or Bar-graph gauge display options
- Reverse backup video display integration (camera sold separately)
- GPS-based automatic speedometer calibration
- Built-in Bluetooth connectivity with Dakota Digital App support
- USB port for field updates and future feature enhancements
- Integrated G-force meter with real-time graphical display
- External control module for simplified wiring installation
- Pushbutton rocker switch control with buzzer feedback
- Over 30 user-selectable color options for needle, sweep, and digital displays
- Internal photo sensor for automatic brightness adjustment

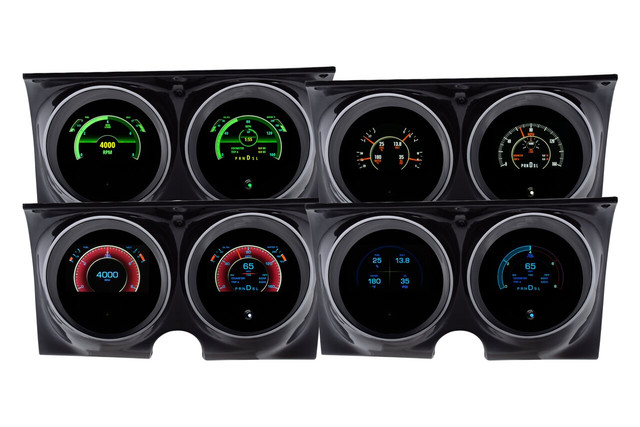

- 4 factory preset gauge themes with 12 color schemes
Specifications
- Part Number: GRFX-67C-CAM
- Vehicle Application: 1967-68 Chevy Camaro / Pontiac Firebird
- Speedometer Range: Simulated needle up to 200 MPH; digital numeric up to 255 MPH
- Tachometer Range: Up to 16,000 RPM (simulated and digital)
- Oil Pressure Range: Simulated needle up to 150 psi; digital numeric up to 300 psi with optional sensor
- Water Temperature Range: Simulated needle up to 260°F; digital numeric up to 300°F
- Fuel Level Display: Simulated E, 1/4, 1/2, 3/4, F; digital numeric 0-100%
- Voltmeter Range: 0-18 VDC (simulated and digital)
- Clock: 12-hour analog/digital movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor, 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor, 1/8" NPT solid state, with 10 ft harness
- Cable-driven Speed Sensor/Generator with 10 ft harness, replacing GM-style speedometer cables
- Bushing kit including 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Backup camera for video display integration is sold separately
- Optional 0-300 psi oil pressure sensor (SEN-03-9) required for extended digital pressure range
- Optional Gear Position sensor (GSS-3000) required for gear indicator function
- Optional DIM-1 dimming knob available for manual brightness control
- Optional relocation bracket (Part # 130011) available for speed sensor clearance needs
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- System includes a Limited Lifetime Warranty, engineered and produced in Sioux Falls, South Dakota
