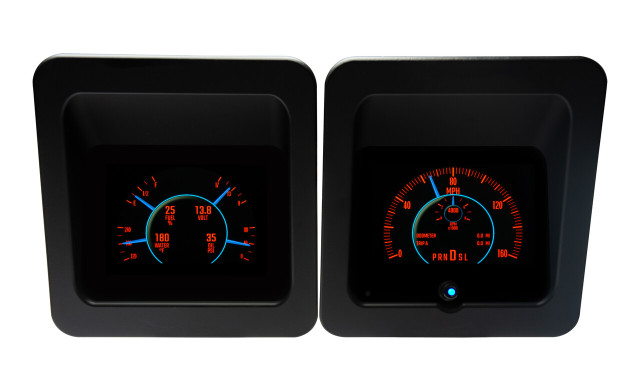

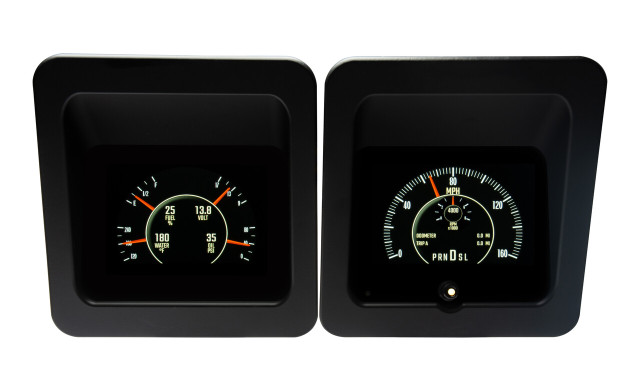

The Dakota Digital Grafix Series GRFX-69C-CAM is a direct drop-in upgrade for the 1969 Chevy Camaro's stock or reproduction plastic bezel (available separately). With the key off, the gauge face maintains an all but OEM appearance, featuring a large speedometer and tachometer, while powering up reveals the full capability of this customizable digital instrument system. Stock lenses and indicator rings are replaced with matte black aluminum trim rings, supplied with the kit.
The Grafix Series allows users to customize nearly every aspect of the instrument display, including graphic themes, display colors, and warning modes. Each gauge location can be configured as Analog, Digital, or Bar-graph style, shown singly, grouped in pairs, or reconfigured entirely. The system also supports integration of an optional reverse backup video display shown directly within the largest onboard display, as well as onboard GPS technology for automatic, no-touch speedometer calibration using a wired VSS input.
Built-in Bluetooth connectivity links to the free Dakota Digital App for configuration, calibration, and real-time diagnostics, while the USB access port allows for future field updates and new graphic theme imports. An integrated G-force meter adds a graphical display of real-time driving dynamics. As with all Dakota Digital systems, an external control module keeps wiring organized and the gauge cluster installation clean.
Key Features
- Drop-in replacement for the stock or reproduction 1969 Camaro plastic bezel (bezel sold separately)
- Matte black aluminum trim rings included to replace stock lenses and indicator rings
- Selectable Analog, Digital, or Bar-graph gauge display styles with customizable themes and colors
- Optional reverse backup video display integration (camera sold separately)
- Onboard GPS-based automatic speedometer calibration
- Built-in Bluetooth connectivity with free Dakota Digital App for setup, calibration, and diagnostics
- USB port for field updates and new graphic theme imports
- Integrated G-force meter
- External control module for simplified, organized wiring
- Internal photo sensor for automatic brightness adjustment with auto high contrast and auto night mode
- Pushbutton rocker switch control for setup and menu navigation
- Limited Lifetime Warranty, engineered and produced in Sioux Falls, South Dakota
Specifications
- Part Number: GRFX-69C-CAM
- Vehicle Application: 1969 Chevy Camaro
- Speedometer: Simulated needle range up to 200 MPH, digital numeric range up to 255 MPH
- Tachometer: Simulated needle range up to 16,000 RPM, digital numeric range up to 16,000 RPM
- Oil Pressure: Simulated needle range up to 150 psi, digital numeric range up to 300 psi with optional 0-300 psi sensor (SEN-03-9)
- Water Temperature: Simulated needle range up to 260°F, digital numeric range up to 300°F
- Fuel Level: Simulated needle shows E, 1/4, 1/2, 3/4, F; digital numeric range 0-100%
- Voltmeter: Simulated needle and digital numeric range up to 18 VDC
- Clock: 12-hour analog/digital movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 4 factory preset gauge themes: Standard, Performance, Modern, and Era, with 12 color schemes
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator with 10 ft harness, replacing GM-style speedometer cables (requires approximately 5" clearance; relocation part 130011 sold separately when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- Grafix Series instrument cluster with matte black aluminum trim rings
- External control module
- Water temperature, oil pressure, and speed sensors with full-length harnesses
- Bushing assortment
- Two-sided pushbutton rocker switch
Notes
- Requires a stock or reproduction plastic bezel, available separately (see ICM-69C-CAM Instrument Carrier Assembly)
- Gear Position indicator requires optional GSS-3000 sensor
- Backup camera for video display integration sold separately
- DIM-1 dimming knob available separately for manual brightness control
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
