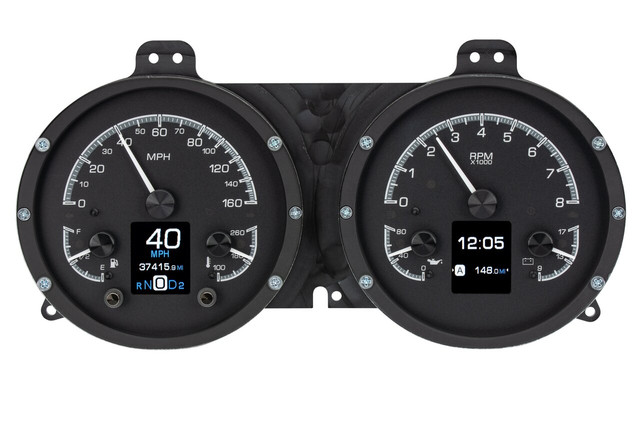

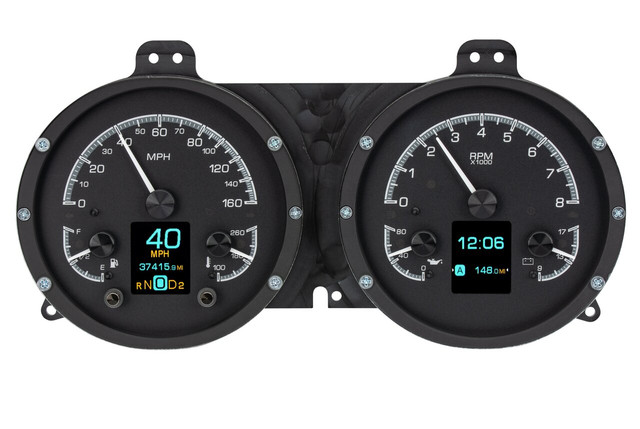

The Dakota Digital HDX-67C-CAM-K is a complete HDX instrument system engineered specifically for the 1967-68 Chevy Camaro's dual-round gauge cluster, featuring black gauge-face styling. Each gauge opening combines three precision analog gauges with a full-color TFT display, giving the driver a wealth of information at a glance alongside traditional needle readouts.
Calibration and personalization are handled through integrated, capacitive-touch buttons built into the gauge face or through the available Bluetooth app for Apple and Android devices. Users can independently select illumination colors for gauge readings, needles, and message centers, with needle hubs finished in black nickel-plated spun aluminum to match the buttons.
Installation is simplified by a central control box that sources signals from the vehicle harness and connects to supplied, solid-state sending units. The system uses an OEM or reproduction style bezel, which is not included with this kit.
Key Features
- Dual-round gauge cluster design with three analog gauges and a full-color TFT display in each opening
- Black alloy gauge-face styling
- Capacitive-touch button controls integrated into the gauge face
- Bluetooth app compatibility for Apple and Android devices for setup and real-time readouts
- Over 30 user-selectable color options for needles, sweep, and digital TFT display
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with independent daytime and nighttime themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Central control box simplifies installation using vehicle-harness sourced signals
Specifications
- Part Number: HDX-67C-CAM-K
- Gauge Face Color: Black
- Speedometer: 0-160 MPH (split scale resolution of a 120 MPH speedometer)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, million mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour format
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, includes 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; part # 130011 available separately for relocation if additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Replacement bezel available separately (ICM-67C-CAM)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Gear position indicator requires optional GSS-3000 sensor
- DIM-1 accessory available for on-the-fly rotary brightness control
