Description

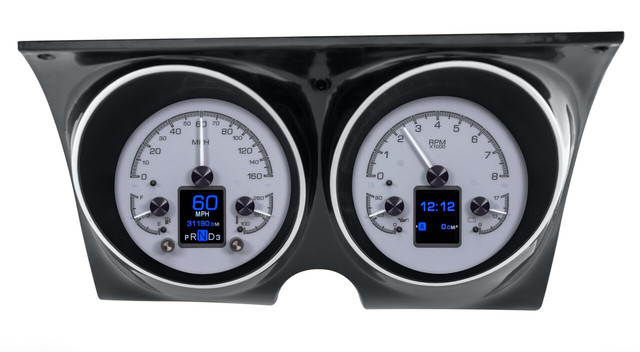

The Dakota Digital HDX-67C-CAM-S is a complete HDX instrument system engineered specifically for the 1967-68 Chevy Camaro's dual-round gauge cluster, featuring a silver alloy gauge-face finish. Each opening combines three analog gauges with a full-color TFT display, giving drivers a modern blend of traditional analog readouts and digital message center functionality in a direct-fit design.
Calibration and personal settings are controlled through built-in, capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied, solid state sending units cleanly to their respective terminals.
This system uses an OEM or reproduction style bezel, which is not included and is shown for visual and presentation purposes only.
Key Features
- Silver alloy gauge-face styling with independently selectable illumination colors for needles, gauge sweeps, and digital message centers
- Black nickel plated spun-aluminum needle hubs matching the capacitive-touch buttons
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable auxiliary indicators
- Red, settable warning light built into each analog gauge sweep (except speedometer)
- Over 30 user-selectable color options plus 12 factory preset color themes

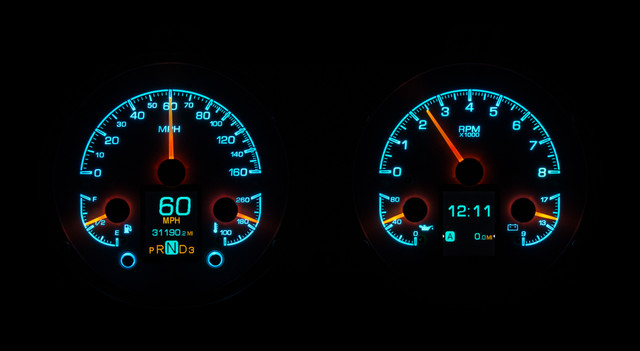

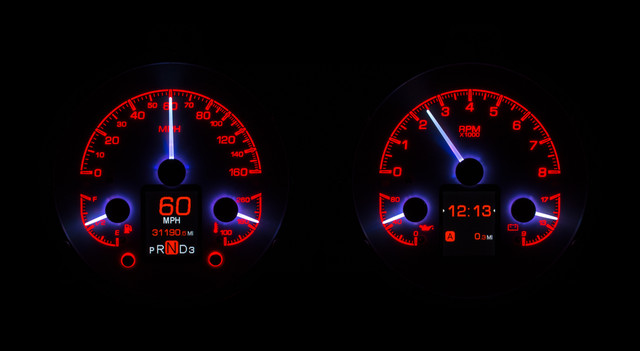

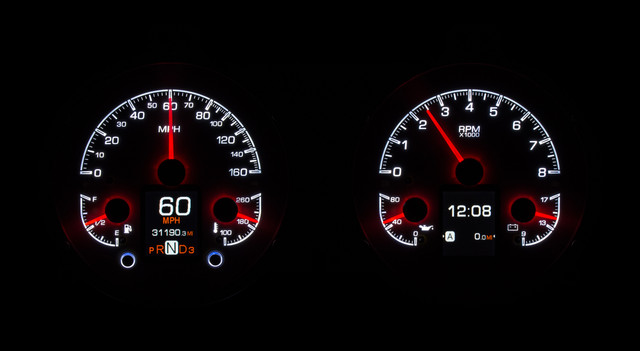

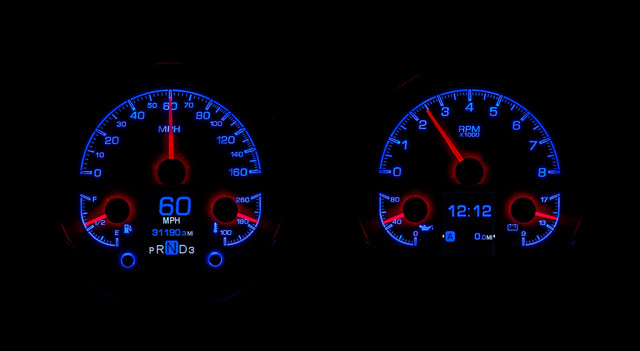

- Full LED/RGB backlighting with independent daytime and nighttime theme settings
- Onboard capacitive touch pushbuttons with LED-lit feedback and optional remote mounted switch capability
- Full Bluetooth app control and configuration for Android and Apple devices
Specifications
- Part Number: HDX-67C-CAM-S
- Speedometer: 0-160 MPH, split scale resolution of 120 MPH with 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12 hour
- Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Replacement bezel available separately (ICM-67C-CAM)
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary brightness control
