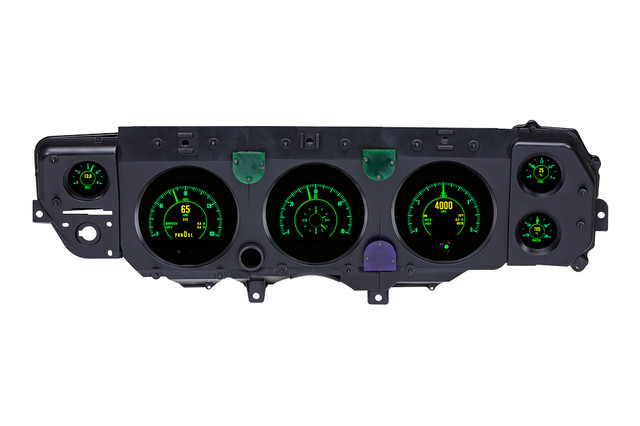

The Dakota Digital GRFX-70C-CVL Grafix Series instrument system is a direct bolt-in upgrade for 1970-72 Chevelle SS, Monte Carlo, El Camino, and 1971 GMC Sprint SP models equipped with the six-round gauge opening. Designed to install into a stock or reproduction gauge carrier and bezel (sold separately), this system brings modern digital technology and total customization to a classic muscle car dash.
The Grafix Series allows the user to personalize nearly every aspect of the instrument display. Multiple graphic themes can be selected, with each gauge location configurable as Analog, Digital, or Bar-graph style, and individual elements can be adjusted for color and warning mode. Gauges can display readings singly, be grouped in pairs, or reconfigured entirely to show different data as needed.
This system also offers integration of a reverse backup video display shown directly within the instrument cluster, along with onboard GPS technology for automatic speedometer calibration regardless of tire size or gearing. Built-in Bluetooth connectivity allows wireless access to the Dakota Digital App for configuration, calibration, and real-time diagnostics, while a USB port enables future field updates. An integrated G-force meter provides a graphical display of real-time driving dynamics. All Dakota Digital instrument systems are engineered and produced in Sioux Falls, South Dakota, and are backed by a Limited Lifetime Warranty.
Key Features
- Bolt-in upgrade for 1970-72 Chevelle SS, Monte Carlo, El Camino, and 1971 GMC Sprint SP with six-round gauge opening
- Multiple factory preset graphic themes with over 30 user-selectable color options for needle, sweep, and digital display colors
- Each gauge location configurable as Analog, Digital, or Bar-graph style readout

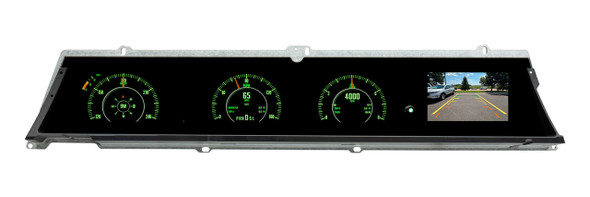

- Reverse backup video display integration using the largest onboard display (camera sold separately)
- Onboard GPS technology for automatic, no-touch speedometer calibration
- Built-in Bluetooth connectivity with Dakota Digital mobile app for configuration, calibration, and real-time diagnostics
- USB access port for field updates and future graphic theme imports
- Integrated G-force meter with graphical display
- External control module for simplified wiring and a cleaner installation
- Internal photo sensor for automatic brightness adjustment with auto high contrast and auto night mode
- Pushbutton rocker switch control with button-press feedback via message center or included buzzer
Specifications
- Part Number: GRFX-70C-CVL
- Speedometer: Simulated needle range up to 200 MPH, digital numeric range up to 255 MPH
- Tachometer: Simulated needle range up to 16,000 RPM, digital numeric range up to 16,000 RPM
- Oil Pressure: Simulated needle range up to 150 psi, digital numeric range up to 300 psi with optional sensor
- Water Temperature: Simulated needle range up to 260°F, digital numeric range up to 300°F
- Fuel Level: Simulated needle shows E, 1/4, 1/2, 3/4, F; digital numeric range 0-100%
- Voltmeter: Simulated needle range up to 18 VDC, digital numeric range 0-18 VDC
- Clock: 12-hour analog/digital clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Functions
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- Digital 12-hour clock
- Estimated range/miles to empty
- Hour meter
- 0-60 MPH timer and 1/4 and 1/8 mile time and trap speed
- High speed and high RPM recall
- G-Meter (G-force)
Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/engaged, when vehicle equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 and wait-to-start (when vehicle equipped)
- Two auxiliary input indicators with user-programmable labels
- Analog gauge sweep warning indicator lights (except speedometer)
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011 available separately for relocation when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes

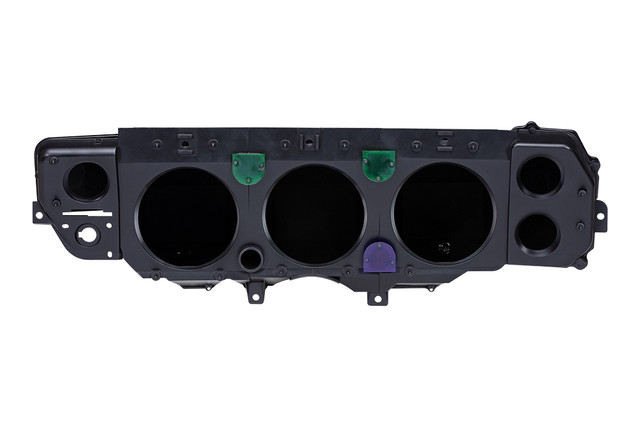

- Gauge carrier and bezel are not included and are sold separately; system uses an OEM or reproduction style bezel
- Backup camera is available separately with full-length wire harness and universal mounting
- Optional DIM-1 dimming knob available for manual brightness control
- Optional 0-300 psi oil pressure sensor (SEN-03-9) available for extended digital numeric range
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
