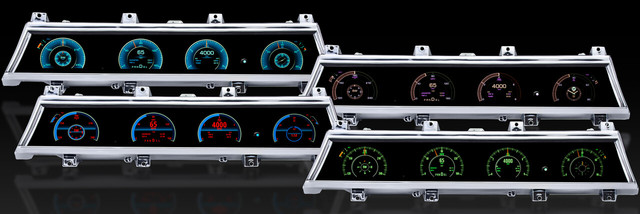

The Dakota Digital GRFX-66C-CVL is a direct-fit instrument system designed for 1966-67 Chevy Chevelle and El Camino models, bringing modern Hi-Res TFT display technology to the classic long-sweep A-body dash. This Grafix Series cluster features four high-resolution TFT screens that allow the user to customize nearly every aspect of the instrument display, including graphic themes, display colors, and warning modes.
Each gauge location can be independently configured as Analog, Digital, or Bar-graph style, with the ability to show single readings, paired data for twice the visible information, or entirely reconfigured displays. The system also integrates reverse backup video display capability using its largest onboard screen, along with onboard GPS technology for automatic, no-touch speedometer calibration regardless of tire size or gearing.
Built-in Bluetooth connectivity allows wireless access to the Dakota Digital App for configuration, calibration, and real-time diagnostics, while a USB port enables future field updates and new graphic theme imports. An external control module keeps wiring clean and organized, and the system includes a full sensor package for a complete installation.
Key Features

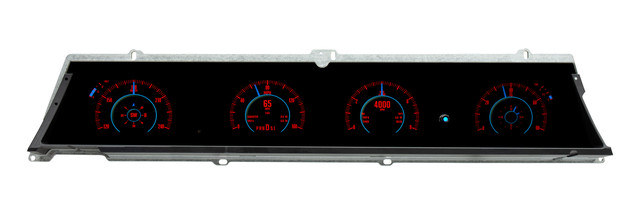

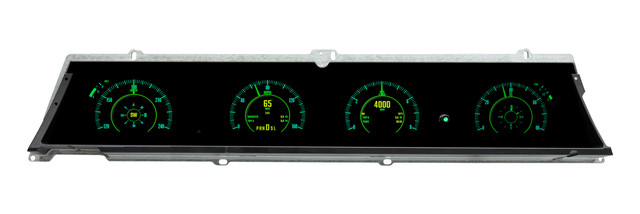

- Four Hi-Res TFT screens with fully customizable graphic themes and display colors
- Selectable Analog, Digital, or Bar-graph gauge styles with single or paired readouts

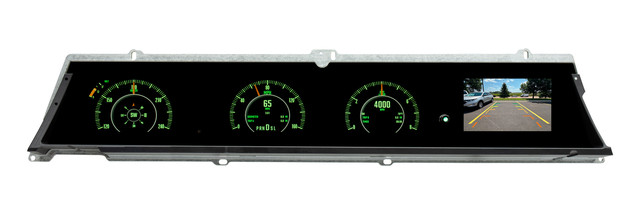

- Integrated reverse backup video display within the instrument cluster (camera sold separately)
- Onboard GPS technology for automatic, no-touch speedometer calibration
- Built-in Bluetooth connectivity for use with the Dakota Digital App
- USB access port for field updates and new theme imports
- Integrated G-force meter with real-time graphical display
- External control module for simplified, tidy wiring installation

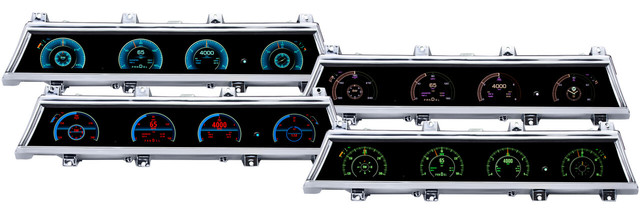

- Over 30 user-selectable color options with 4 factory preset gauge themes
- Internal photo sensor for automatic brightness adjustment with auto high contrast and night mode
- Performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
- Pushbutton control via included two-sided rocker switch, with mobile app configuration option
- Limited Lifetime Warranty, engineered and produced in Sioux Falls, South Dakota
Specifications
- Part Number: GRFX-66C-CVL
- Vehicle Application: 1966-67 Chevy Chevelle/El Camino
- Speedometer: Simulated needle range up to 200 MPH, digital numeric range up to 255 MPH
- Tachometer: Simulated needle and digital numeric range up to 16,000 RPM
- Oil Pressure: Simulated needle range up to 150 psi, digital numeric range up to 300 psi with optional 0-300 psi sensor (SEN-03-9)
- Water Temperature: Simulated needle range up to 260°F, digital numeric range up to 300°F
- Fuel Level: Simulated needle range E to F, digital numeric range 0-100%
- Voltmeter: Simulated needle and digital numeric range 0-18 VDC
- Clock: 12-hour analog/digital clock movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil Pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables, with 10 ft harness
- Bushing kit: 1/8" to 1/4", 3/8", 1/2" NPT, and 12mm and 16mm x 1.5 thread bushings
Kit Includes
- GRFX instrument cluster with four Hi-Res TFT displays
- External control module
- Water Temperature, Oil Pressure, and Speed sensors with full-length harnesses
- Bushing assortment
- Two-sided pushbutton rocker switch
- Installation instructions
Notes
- Bezel not included; system uses OEM or reproduction style bezel. A replacement bezel (610088) is available separately.
- Backup camera available separately for use with the integrated reverse video display feature.
- Optional accessories such as SEN-03-9 oil pressure sensor, GSS-3000 gear position sensor, DIM-1 dimming knob, part # 130011 pulse generator relocation kit, and GPS-50-2 are sold separately.
