Description
The RTX-95C-PU-X brings Dakota Digital's latest RTX Series instrument technology to the 1995-98 Chevy truck, replacing the factory cluster with a system that retains the stock dashboard layout while delivering late-model features and performance. Every effort has been made to incorporate OEM-style design elements in the layout, face styling, and indicators, so a casual glance may mistake it for original equipment—until the LED backlighting comes on in your favorite color scheme.

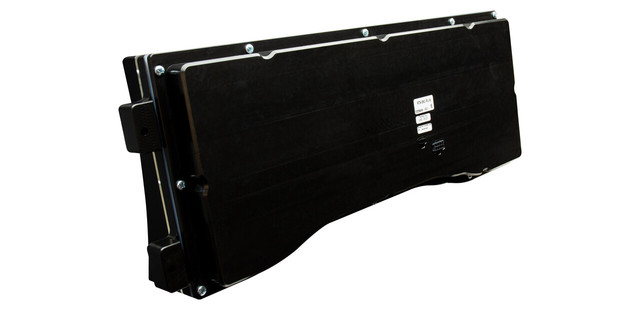

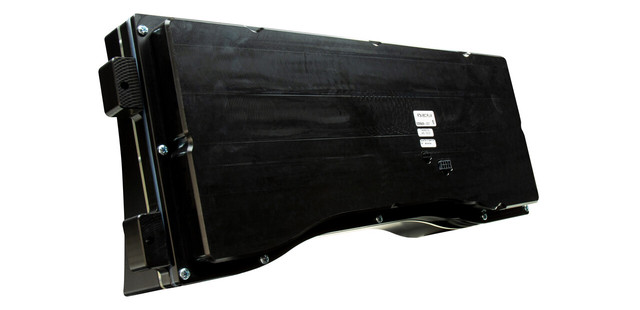

CNC-machined housings are filled with electronics designed and built in-house by Dakota Digital, and the high-definition TFT message center can be configured to display a wide range of vehicle information. The RTX series uses a central control box to simplify installation and setup, with calibration handled through an included pushbutton switch or a free mobile app for Android and Apple devices.

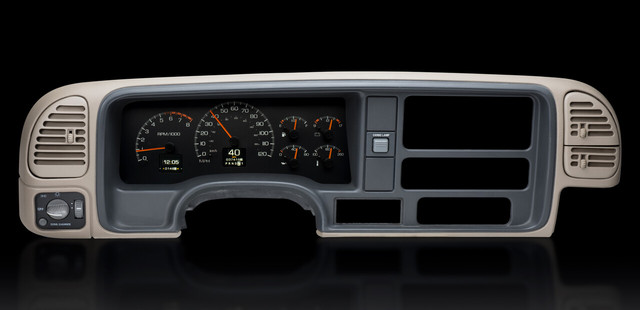

This system uses an OEM or reproduction style bezel; the bezel itself is not included.
Key Features

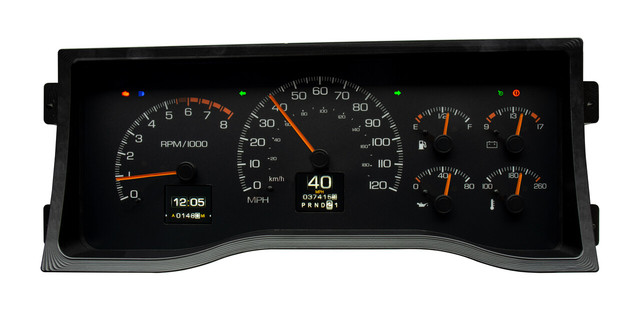

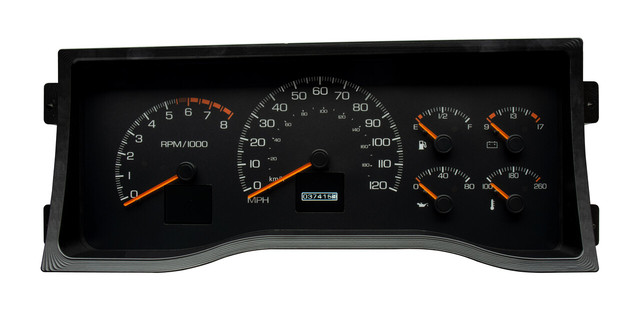

- Analog speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter gauges with full LED backlighting
- Over 30 user-selectable color options for independently adjusting needle color, sweep color, and digital TFT display color
- 12 factory preset color themes, or fully customizable color zones
- Adjustable daytime and nighttime brightness, toggled automatically by the headlight switch
- High-definition TFT digital message center with odometer, dual trip meters, 12-hour clock, and estimated range/miles to empty
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, and high RPM recall
- Built-in indicators for turn signals, high beam, check engine, parking brake, cruise control, 4x4, wait-to-start, and gear position (optional GSS-3000 sensor required)
- Two auxiliary input indicators with user-programmable labels
- Red LED sweep indicator on each analog gauge (except speedometer) for quick notice of a warning condition
- Pushbutton rocker switch control for setup and operation, with feedback through the TFT message center or included buzzer
- Configurable via free mobile app with real-time gauge readouts for diagnostics or secondary display
Specifications
- Part Number: RTX-95C-PU-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction (Part # 130011, sold separately, allows relocation of the pulse generator when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed for your application
- Optional GSS-3000 sensor required for gear position indicator
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
- Optional GPS-50-2 can be used to eliminate the need for speedometer calibration
