Description

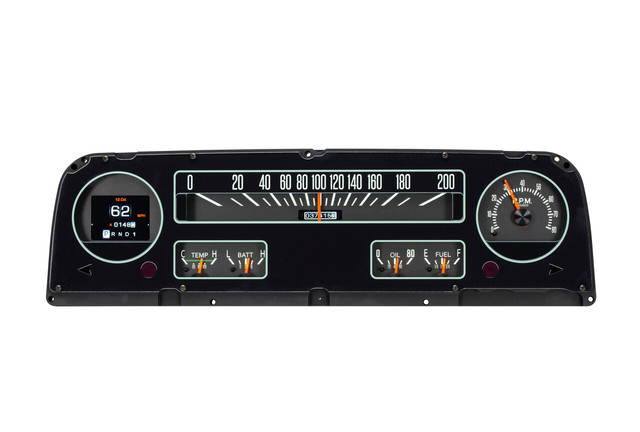

The RTX-64C-PU-X brings modern instrumentation capability to the classic dash of your 1964-66 Chevy C10 pickup, all while retaining the vintage look you expect. A 2.4" TFT message center on the left can be configured to display a wide range of information, while the analog tachometer on the right keeps you informed of engine RPM. A small center display features a simulated tumbler odometer for an authentic appearance. This system does not fit GMC trucks.
Part of Dakota Digital's RTX series, this instrument system was designed to retain a stock appearance without sacrificing late-model features. OEM design elements were carefully incorporated into the layout, face styling and indicators, so the cluster appears factory-correct at a glance, until the LED backlighting comes alive in your chosen color scheme.

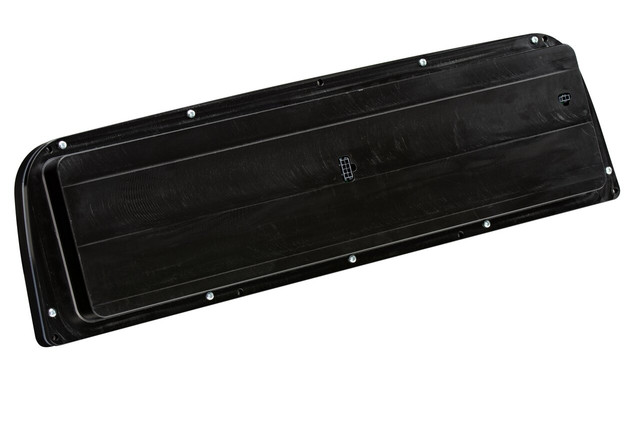

Each RTX cluster starts with a CNC-machined housing filled with electronics designed and built in-house by Dakota Digital. The high-definition TFT message center can be fully configured to display nearly any piece of information needed, and the system utilizes a central control box to simplify installation and setup.
Key Features
- 2.4" TFT message center with fully configurable display options
- Analog tachometer and simulated tumbler-style odometer display
- CNC-machined housing with in-house designed and built electronics

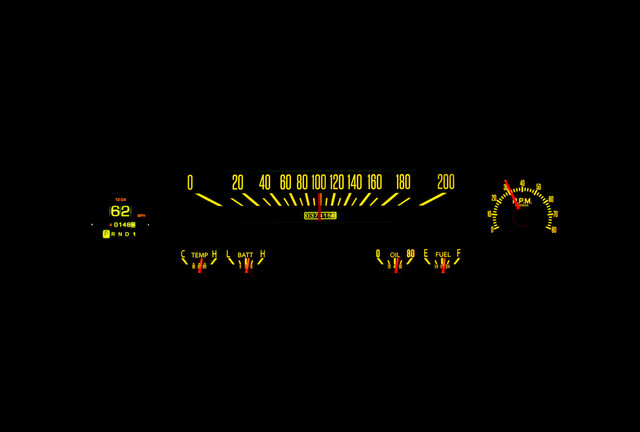

- Over 30 user-selectable color options for needle, sweep and TFT display colors
- 12 factory preset color themes or fully custom color zone selection

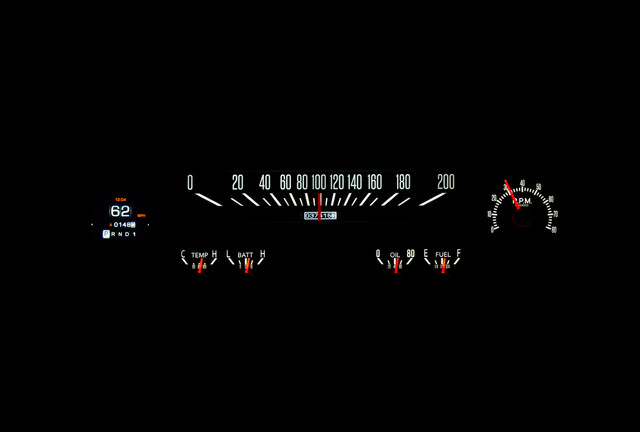

- Full LED/RGB backlighting with independent daytime and nighttime themes
- Pushbutton rocker switch control for calibration and menu navigation
- Free mobile app (Android and Apple) for configuration and real-time readouts via Bluetooth
- Central control box for simplified installation and setup
- Requires stock or reproduction bezel for installation (not supplied)
Specifications
- Part Number: RTX-64C-PU-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Displays: Odometer, Dual (A/B) Trip Meter, 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Built-in Indicators: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional GSS-3000 sensor required), 4x4, Wait to Start, two user-programmable auxiliary indicators
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with 10 ft harness; requires approximately 5" clearance between cable drive output and any obstruction (Part #130011 available separately for relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX-64C-PU-X instrument cluster
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- Requires a stock or reproduction bezel for installation; bezel is not included
- Does not fit GMC trucks
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
- Optional GSS-3000 sensor required for Gear Position indicator
- Optional DIM-1 accessory available for on-the-fly rotary brightness control
