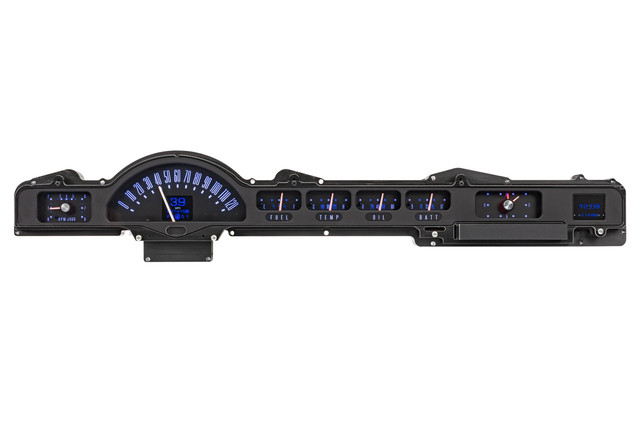

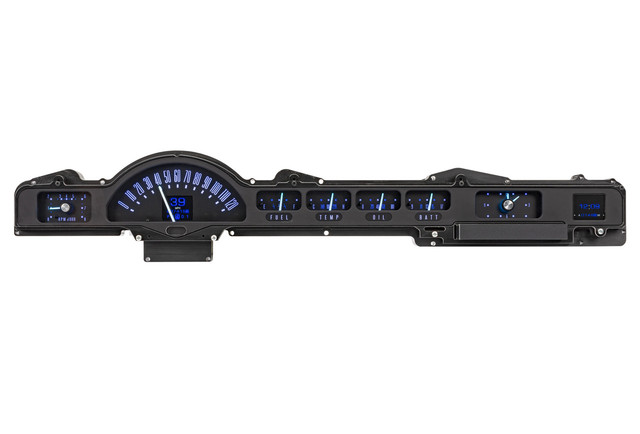

The Dakota Digital RTX-50M-X Instrument System brings a modern electronic dash to the 1950-51 Mercury while retaining the beautiful stock appearance of the original design. Built to pay tribute to Mercury styling, this system replaces the factory AM radio location to make way for a complete, modern instrumentation package without sacrificing the OEM look.
Every effort has been put into matching OEM design elements for layout, face styling, and indicators, so at a casual glance the system appears to be original equipment. Once activated, the full LED backlighting reveals a striking array of user-selectable color options for a truly custom appearance, day or night.
CNC machined housings are filled with in-house designed and built electronics, and the system utilizes a central control box along with a high-definition TFT message center that can be configured to display a wide range of vehicle information. This system uses the OEM bezel, which is not included.
Key Features
- CNC machined housings with in-house designed electronics
- High-definition TFT message center, fully configurable
- Central control box for simplified installation and setup
- Full LED backlighting with over 30 user-selectable colors for needle, sweep, and digital display
- 12 factory preset color themes or fully customizable color zones
- Independently adjustable daytime and nighttime brightness, toggled by the headlight switch
- Pushbutton rocker switch control with button-press feedback via TFT display or included buzzer
- Configurable through included pushbutton controls or the free Dakota Digital mobile app (Android and Apple)
- Built-in performance meters including 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, and high speed/RPM recall
Specifications
- Part Number: RTX-50M-X
- Speedometer: 0-120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12 Hour Analog Clock Movement
- Control Box Dimensions: 5.5" x 3.5" x 1"
Digital Message Center Displays
- Odometer (one-time user settable, million mile)
- Dual (A/B) trip meter (0-9,999.9)
- 12-hour clock
- Estimated range/miles to empty

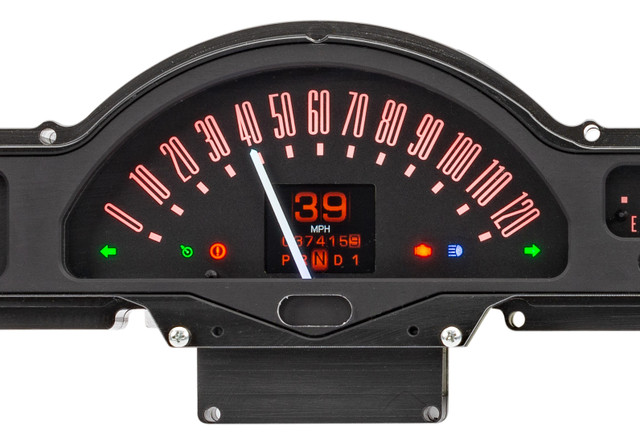

Built-in Indicators
- Turn signals (left/right)
- High beam
- Check engine
- Parking brake
- Cruise control (on/on & engaged, when vehicle is equipped)
- Gear position (optional GSS-3000 sensor required)
- 4x4 (when vehicle is equipped)
- Wait to start (when vehicle is equipped)
- Two auxiliary input indicators with user-programmable labels
- Red LED warning indicator built into each analog gauge sweep (except speedometer)
Included Sensors
- Water temperature sensor: 1/8" NPT, ground isolated, with 10 ft harness
- Oil pressure sensor: 1/8" NPT solid state, with 10 ft harness
- Cable driven speed sensor/generator, replaces Ford and/or GM style speedometer cables, with 10 ft harness (requires approximately 5" clearance between cable drive output and any obstruction; part number 130011 available separately for pulse generator relocation when additional clearance is needed)
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Kit Includes
- RTX instrument cluster with analog gauges and TFT digital message center
- Central control box
- Two-sided pushbutton rocker switch
- Water temperature and oil pressure sensors with harnesses
- Cable driven speed sensor/generator with harness
- Assorted NPT and metric thread bushings
Notes
- System uses the OEM bezel; bezel is not included
- Optional DIM-1 accessory available for on-the-fly rotary dimmer control
- Gear position indicator requires optional GSS-3000 sensor (sold separately)
- Part number 130011 available separately for pulse generator relocation when additional clearance is required
