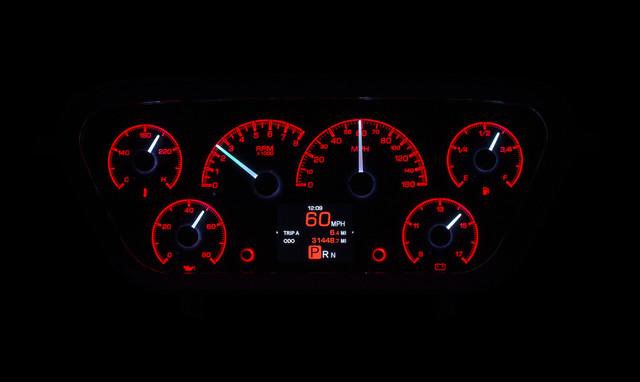

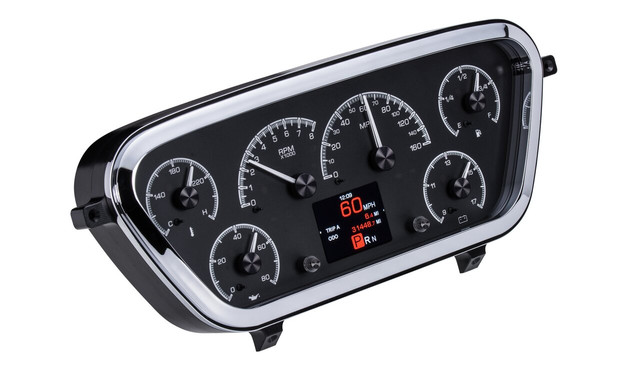

The Dakota Digital HDX-53F-PU-K is a complete HDX instrument system engineered specifically for the 1953-55 Ford Pickup, featuring a black alloy gauge face. A new bezel is milled from a solid block of aluminum to fit the stock trapezoid-shaped dash opening exactly, then chromed and fitted with six analog instruments and a large TFT message center.
Included sensors allow this system to monitor your choice of drivetrain components. Calibration and personal settings are manipulated through the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. With the included central control box, installation is simplified using vehicle-harness sourced signals and supplied, solid state sending units that connect cleanly to their respective terminals.
Key Features
- Milled aluminum bezel, chromed to fit the stock 1953-55 Ford Pickup dash exactly (reproduction chrome bezel included)
- Black alloy gauge-face styling
- Six analog instruments plus a large TFT digital message center
- Independently selectable illumination colors for gauge readings, needles, and message center, with over 30 user-selectable color options and 12 factory preset color themes
- Full LED/RGB backlighting for sharp day and night visibility
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable indicators
- Red, settable warning light built into each gauge sweep
- Black nickel plated spun-aluminum needle hubs to match the control buttons
- LED-lit onboard capacitive touch pushbuttons for quick access to all functions, with optional remote-mounted switch wiring
- Full system configuration and calibration also available through the Bluetooth app for Android and Apple devices
Specifications
- Part Number: HDX-53F-PU-K
- Speedometer: 0-160 MPH (split scale provides resolution of a 120 MPH speedometer, with a top end range of 160 MPH)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Digital Message Center Standard Displays: Odometer (one-time user settable, million mile), Dual (A/B) Trip Meter (0-9,999.9), 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness; sensor requires approximately 5" clearance between the cable drive output and any obstruction (part number 130011 available separately for relocating the pulse generator when additional clearance is required)
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus bushings for 12mm and 16mm x 1.5 threads
Notes
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed to suit the application
- Gear Position indicator requires the optional GSS-3000 sensor, sold separately
- DIM-1 accessory available separately for on-the-fly rotary brightness control
