Description

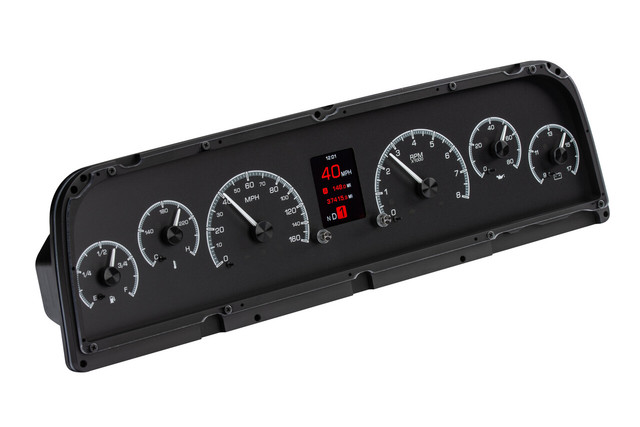

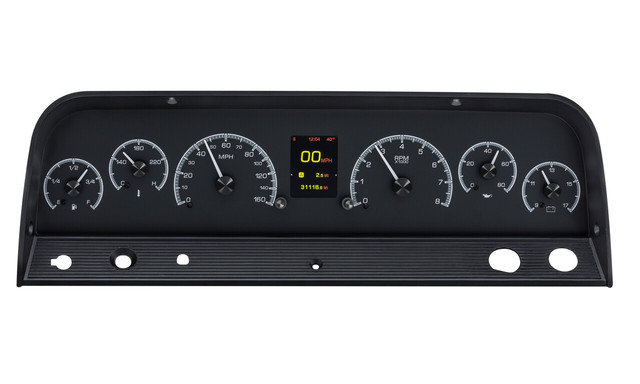

The Dakota Digital HDX-64C-PU-K is a direct-fit instrument system engineered specifically for 1964-66 Chevy pickups, featuring a black gauge-face design. This one-piece system bolts to the stock or reproduction bezel using supplied hardware, blending six analog gauge sweeps with a large center-mounted TFT display for a package that combines classic looks with high-tech functionality. Please note this system does not fit GMC models.
Each HDX system allows independent selection of illumination colors for gauge readings, needles, and message centers, with calibration and personal settings controlled via built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Needle hubs are black nickel plated spun-aluminum to match the buttons. A central control box simplifies installation, using vehicle-harness sourced signals along with supplied solid state sending units that connect cleanly to their respective terminals.
Key Features
- Black alloy gauge-face styling
- Six analog gauge sweeps with a large center TFT message display
- Over 30 user-selectable color options for needles, sweeps, and digital TFT display
- 12 factory preset color themes, plus full custom color zone selection

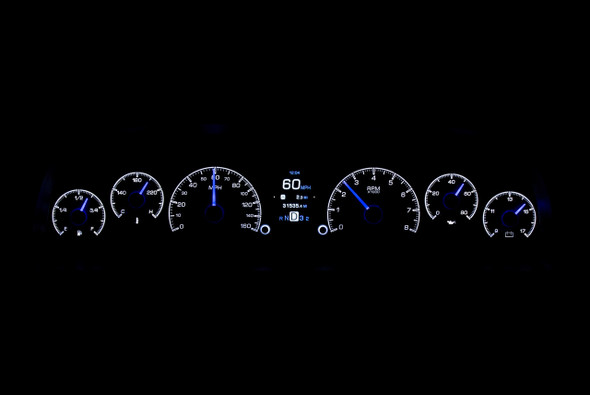

- Full LED/RGB backlighting with separate daytime and nighttime themes
- Built-in capacitive-touch pushbuttons with LED lighting and buzzer feedback
- Bluetooth app control and real-time diagnostic readouts for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators
- Red, settable warning light for each analog gauge
- Bolts to stock or reproduction bezel using supplied hardware
Specifications
- Part Number: HDX-64C-PU-K
- Speedometer: 0-160 MPH (split scale resolution of 120 MPH speedometer, with 160 MPH top end range)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- 12-hour Clock
- Estimated Range/Miles to Empty
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with a 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Does not fit GMC models
- Gear Position indicator requires optional GSS-3000 sensor (sold separately)
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for on-the-fly rotary brightness control (sold separately)
- Not all OEM indicator lamp functions will be replaced; unused indicators may be repurposed as needed
