Description

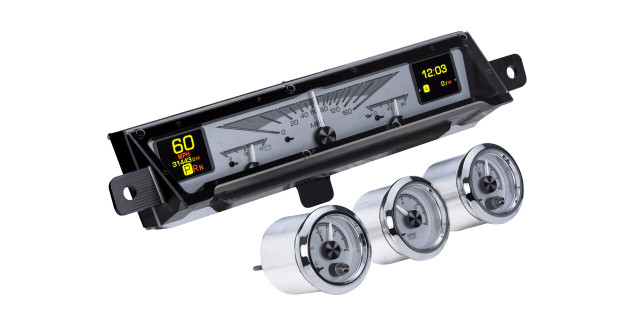

The Dakota Digital HDX-61C-IMP-S is a direct-fit HDX instrument system designed specifically for 1961-62 Chevy Impala models, eliminating the need to modify the dashboard for a set of round gauges. This kit includes new chrome housings and bezels for the round gauges, while the original rectangular speedometer trim piece is retained. Twin TFT message centers keep the driver informed with pertinent vehicle data while preserving the classic '60s dashboard look.
This system features silver alloy gauge-face styling, with fully user-selectable illumination colors for the gauge readings, needles, and message centers. Calibration and personal settings are managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons.
Installation is simplified through a central control box that uses vehicle-harness sourced signals along with supplied solid-state sending units that connect cleanly to their respective terminals.
Key Features
- Direct-fit replacement for 1961-62 Chevy Impala instrument cluster
- Silver alloy gauge-face styling
- New chrome gauge housings/bezels included; reuses factory rectangular speedometer trim piece
- Twin TFT digital message centers
- Over 30 user-selectable color options for needle, sweep, and digital display colors
- 12 factory preset color themes, plus full custom color zone selection

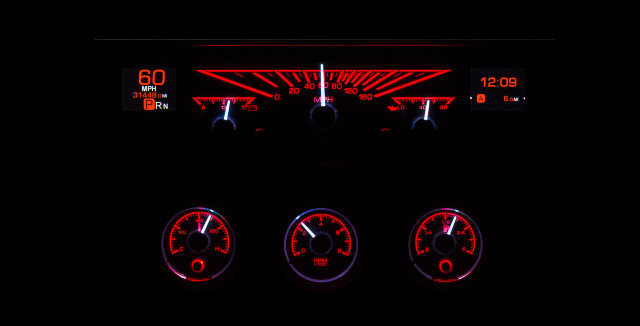

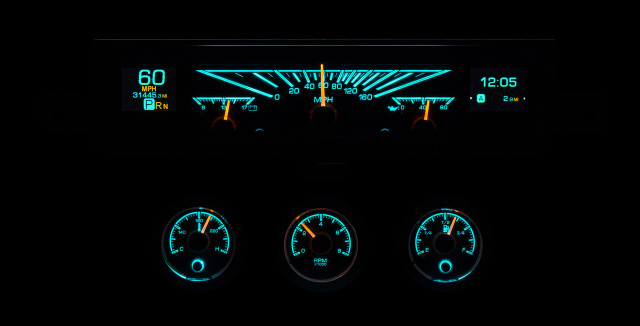

- Full LED/RGB backlighting with separate day and night themes
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, parking brake, and two user-definable indicators
- Red, settable warning light for each analog gauge
- Built-in capacitive-touch pushbutton controls with optional Bluetooth app configuration for Apple and Android devices
- Black nickel plated spun-aluminum needle hubs
Specifications
- Part Number: HDX-61C-IMP-S
- Speedometer: 0-160 MPH, split scale resolution of a 120 MPH speedometer with 160 MPH top end range
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Standard Message Center Displays: Odometer (settable, million mile), Dual (A/B) Trip Meter, 12-hour Clock, Estimated Range/Miles to Empty
- Performance Meters: 0-60 MPH Timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with 10 ft harness; requires approximately 5" clearance between cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system uses OEM or reproduction style bezel
- Not all OEM indicator lamp functions will be replaced; unused indicators can be repurposed as needed
- Optional GSS-3000 sensor required for Gear Position indicator
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- DIM-1 is a common accessory for adding on-the-fly rotary brightness control
