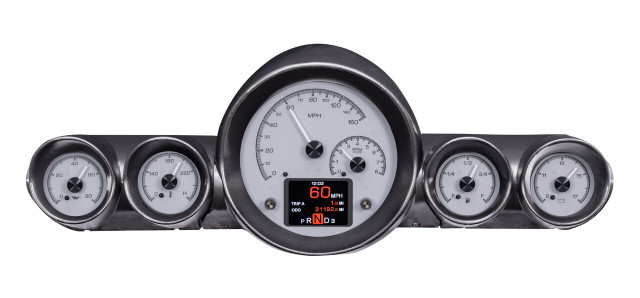

The Dakota Digital HDX-59C-IMP-S HDX System brings modern electronic instrumentation to your 1959-60 Chevy Impala with a silver alloy gauge face, designed to install directly into the factory stock housing. This package delivers six analog sweep readouts along with a large, full-color TFT message center, giving your classic Impala a thoroughly modern dash without altering its original appearance.
The HDX system allows independent illumination color selection for gauge readings, needles, and the message center, with calibration and personal settings managed through built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the control buttons. A central control box simplifies installation by sourcing signals from the vehicle harness and connecting supplied solid-state sending units cleanly to their respective terminals.

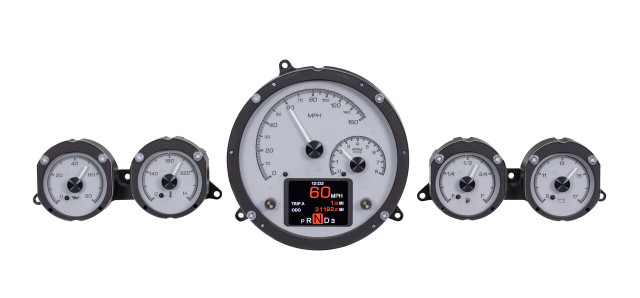

Note: This system uses an OEM or reproduction style bezel; a bezel is not included with this kit.
Key Features
- Six analog sweep gauges plus a full-color TFT digital message center
- Silver alloy gauge-face styling
- Direct installation into the factory 1959-60 Impala dash housing
- Independently selectable illumination colors for needles, gauge sweeps, and message center, with over 30 user-selectable color options
- 12 factory preset color themes plus full custom color zone selection
- Full LED/RGB backlighting with unique daytime and nighttime themes
- Built-in capacitive-touch pushbutton controls on the gauge face
- Bluetooth app control and readout for Apple and Android devices
- Dead-faced indicators including turn signals, high beam, check engine, cruise control, and parking brake, plus two user-definable indicators
- Red, settable warning light built into each analog gauge sweep
- Central control box for simplified, harness-sourced installation
Specifications
- Part Number: HDX-59C-IMP-S
- Speedometer: 0-160 MPH, split scale resolution to 120 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260°F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Odometer: One-time user settable, Million Mile
- Dual (A/B) Trip Meter: 0-9,999.9
- Clock: 12-hour format
- Estimated Range/Miles to Empty display
- Performance meters: 0-60 MPH timer, 1/4 and 1/8 mile time and trap speed, high speed recall, high RPM recall
- Control Box Dimensions: 5.5" x 3.5" x 1"
Included Sensors
- Water Temperature: 1/8" NPT, ground isolated sensor with 10 ft harness
- Oil Pressure: 1/8" NPT solid state sensor with 10 ft harness
- Cable Driven Speed Sensor/Generator: replaces GM style speedometer cables with 10 ft harness; requires approximately 5" clearance between the cable drive output and any obstruction
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT, plus 12mm and 16mm x 1.5 thread bushings
Notes
- Bezel not included; system is designed to use an OEM or reproduction style bezel
- Gear Position indicator requires optional GSS-3000 sensor
- Part # 130011 (sold separately) allows relocation of the pulse generator when additional clearance is required; Tremec and Ford style adaptors available on request
- Not all OEM indicator lamp functions will be replaced; unused indicators can be repurposed as needed
- DIM-1 is a common accessory for on-the-fly rotary brightness control
